Configuring VLANs 563

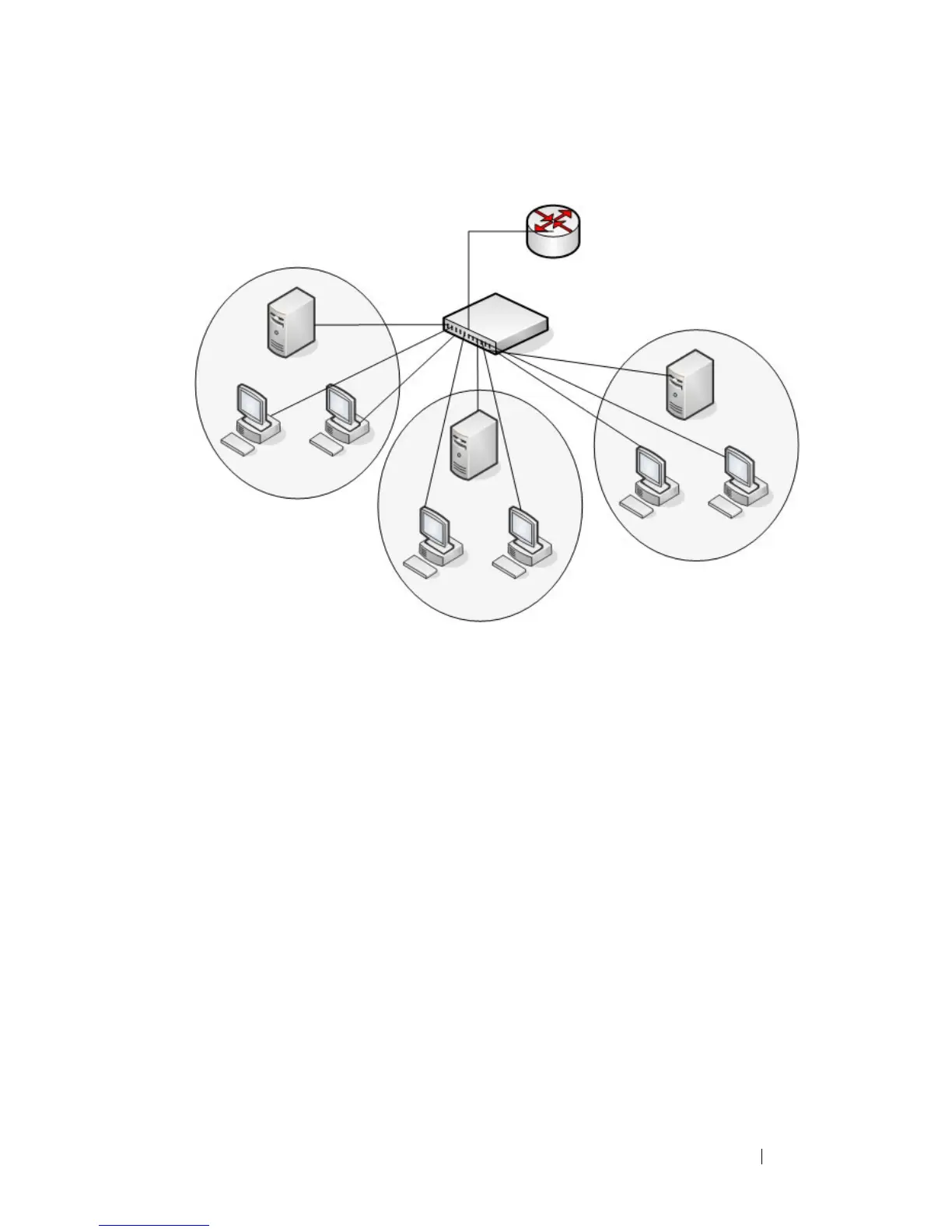

Figure 21-1. Simple VLAN Topology
In this example, each port is manually configured so that the end station
attached to the port is a member of the VLAN configured for the port. The
VLAN membership for this network is port-based or static.
PowerConnect 7000 Series switches also support VLAN assignment based on
any of the following criteria:
• MAC address of the end station
• IP subnet of the end station
• Protocol of the packet transmitted by the end station
Payroll
VLAN 300
Engineering
VLAN 100
Tech Pubs
VLAN 200
Router
Switch
