Dell Networking 7048 - Page 739

Configuring L2 Multicast Features 739
To view a summary of the MVR interface configuration, click Show All.

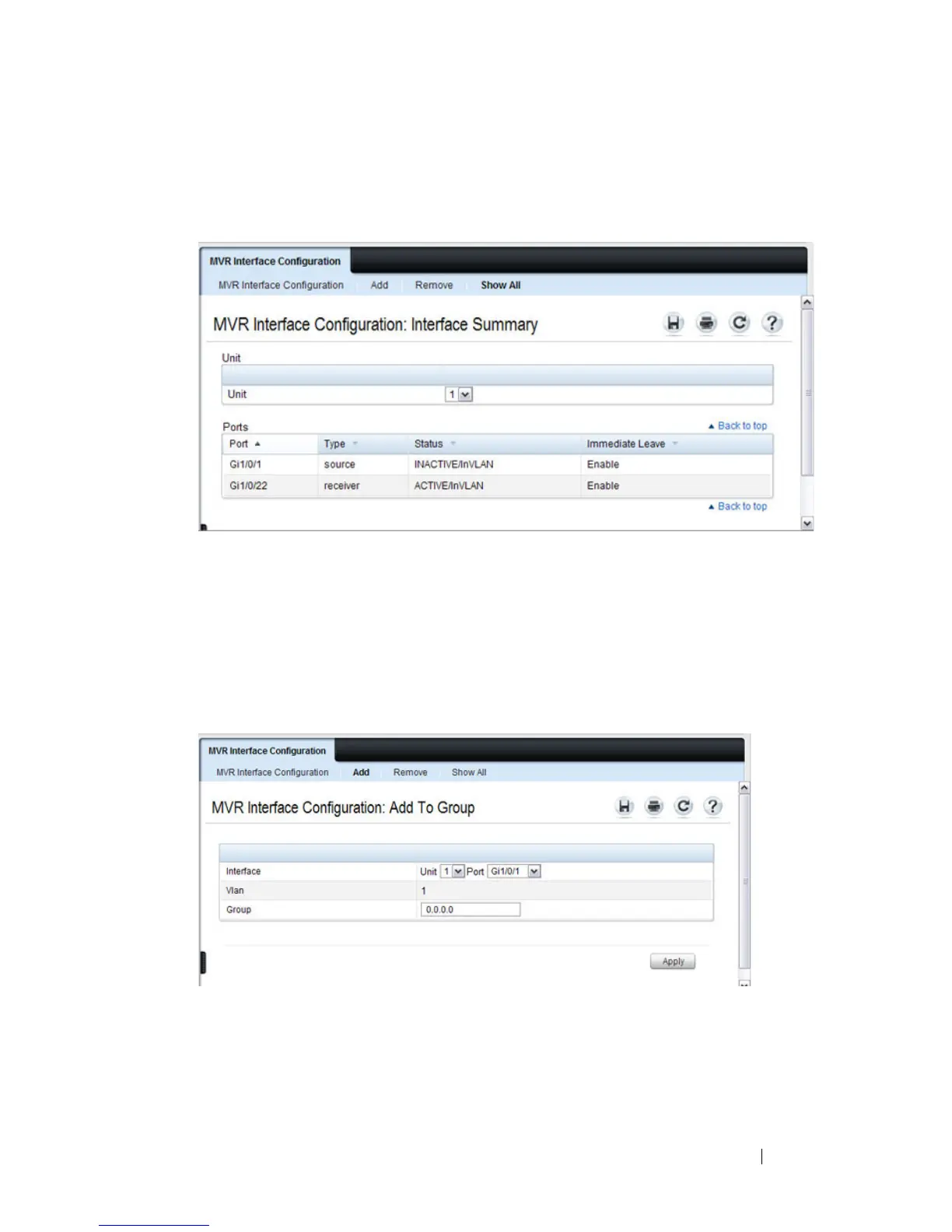

Figure 25-26. MVR Interface Summary
Adding an Interface to an MVR Group
To add an interface to an MVR group:
1
From the MVR Interface page, click Add .
Figure 25-27. MVR - Add to Group
2 Select the interface to add to the MVR group.
3 Specify the MVR group IP multicast address.
4 Click Apply .
