826 Configuring Link Aggregation

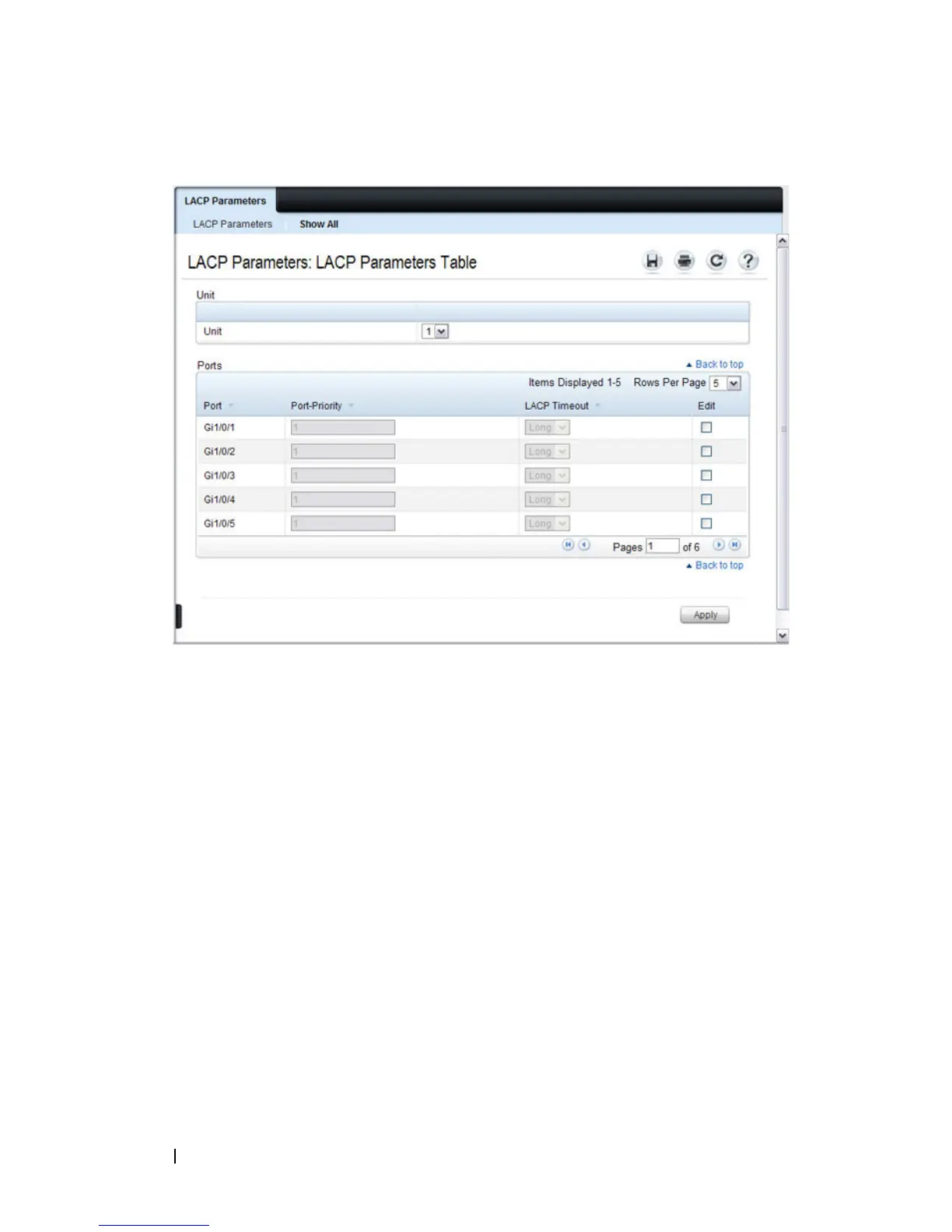

Figure 28-4. LACP Parameters Table

Select the

Edit

check box associated with each port to configure.

Specify the LACP port priority and LACP timeout for each port.

Click

Apply
