Dell PowerEdge C6220 II User Manual

152 | Removing and Installing System Components
4 Grasp cover on both the sides with your palm on the traction pad, slide
out and lift the cover away from the system. See Figure 3-1.

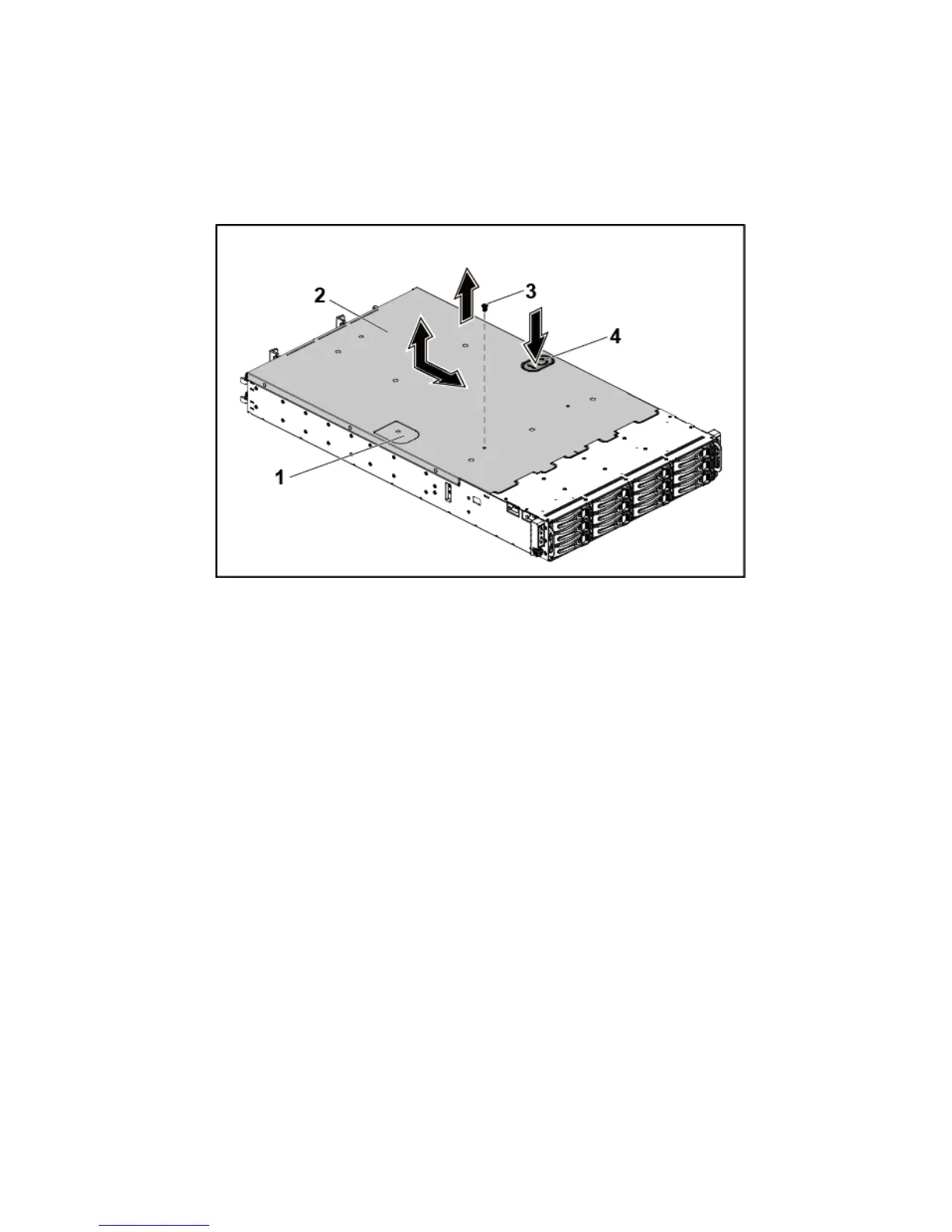

Figure 3-1. Opening and Closing the System
1
traction pad
2
system cover
3
securing screw
4
cover release latch lock
Closing the System
1 Place the cover on the chassis and slide it to the front of the chassis
until it snaps into place. See Figure 3-1.
2 Secure the cover with the securing screw. See Figure 3-1.

Dell PowerEdge C6220 II Specifications

General

Form Factor	2U Rack
Processor	Intel Xeon E5-2600 v2 series
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
Memory	Up to 512GB DDR3 per node
Storage	Up to 24 x 2.5" hot-plug SAS, SATA, or SSD drives
Network	Dual 1GbE, optional 10GbE
Management	Dell Remote Access Controller (iDRAC7) with Lifecycle Controller
Number of Processors	Up to 2 per node (4 total in 2U chassis)
Power Supply	Redundant hot-plug power supplies
