184 | Removing and Installing System Components
Expansion-Card Assembly and Expansion Card
Removing the Expansion Card for 1U Node
1 Remove the system-board assembly. See “Removing a System-Board
Assembly" on page 170.
2 Remove the four screws that secure the expansion-card assembly. See
Figure 3-23.
3 Lift the expansion-card assembly out of the system-board assembly.
See Figure 3-23.

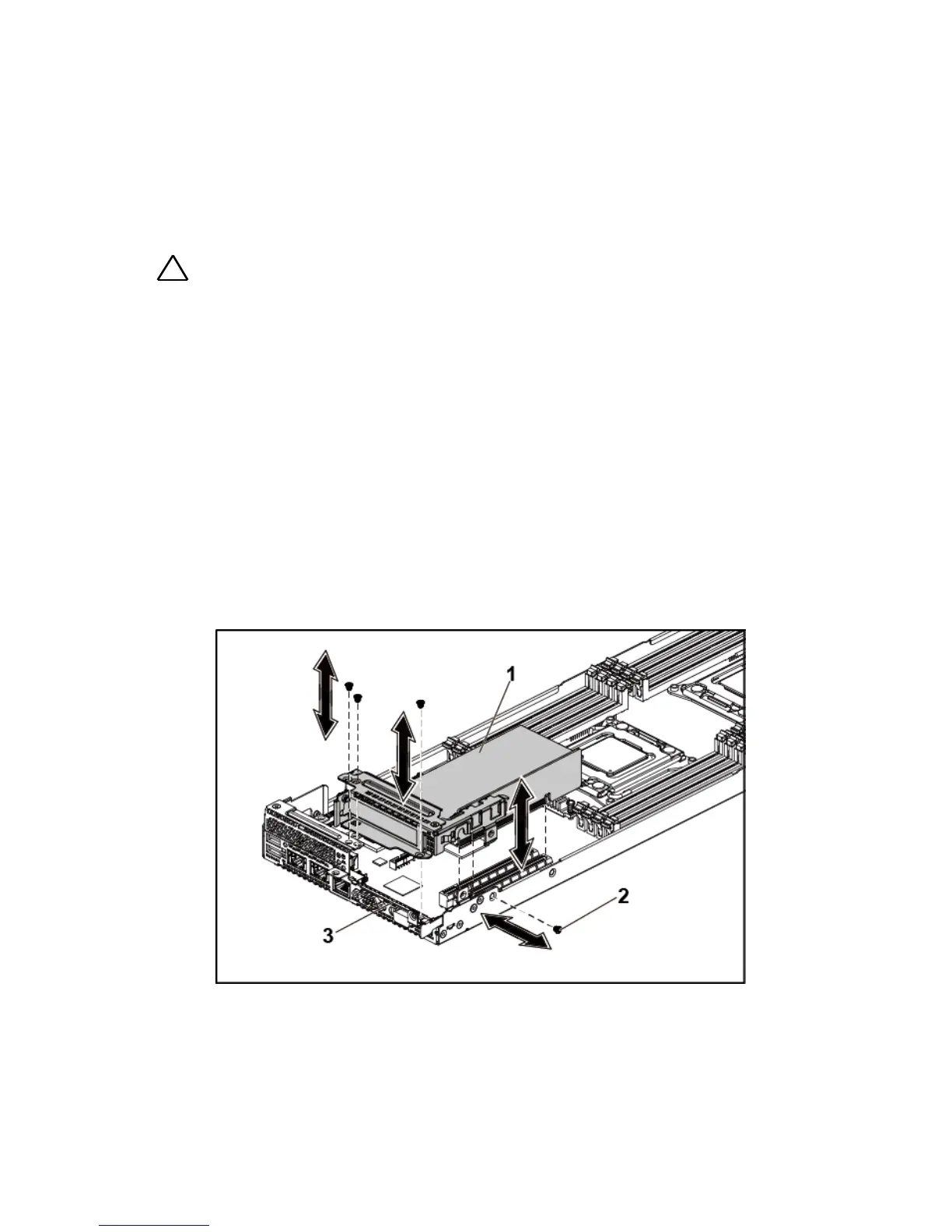

Figure 3-23. Removing the Expansion-Card Assembly for 1U Node
CAUTION: Many repairs may only be done by a certified service technician. You
should only perform troubleshooting and simple repairs as authorized in your
product documentation, or as directed by the online or telephone service and
support team. Damage due to servicing that is not authorized by Dell is not
covered by your warranty. Read and follow the safety instructions that came with
the product.
