Removing and Installing System Components | 217
Installing the Riser card for 1U Node
CAUTION: Many repairs may only be done by a certified service technician. You
should only perform troubleshooting and simple repairs as authorized in your
product documentation, or as directed by the online or telephone service and
support team. Damage due to servicing that is not authorized by Dell is not
covered by your warranty. Read and follow the safety instructions that came with
the product.
1 Place the riser card into the expansion-card bracket. See Figure 3-45.
2 Replace the two screws securing the riser card to the expansion-card
bracket. See Figure 3-45.
3 Install the expansion card. See “Installing the Expansion Card for 1U
Node” on page 186.
4 Replace the system-board assembly. See “Installing a System-Board
Assembly” on page 171.
Cable Routing for Riser Card (1U Node)
1 Connect the USB cable to the 1U riser card, and connect the other end
of the cable to the corresponding connectors on the system board. See
Figure 3-46.

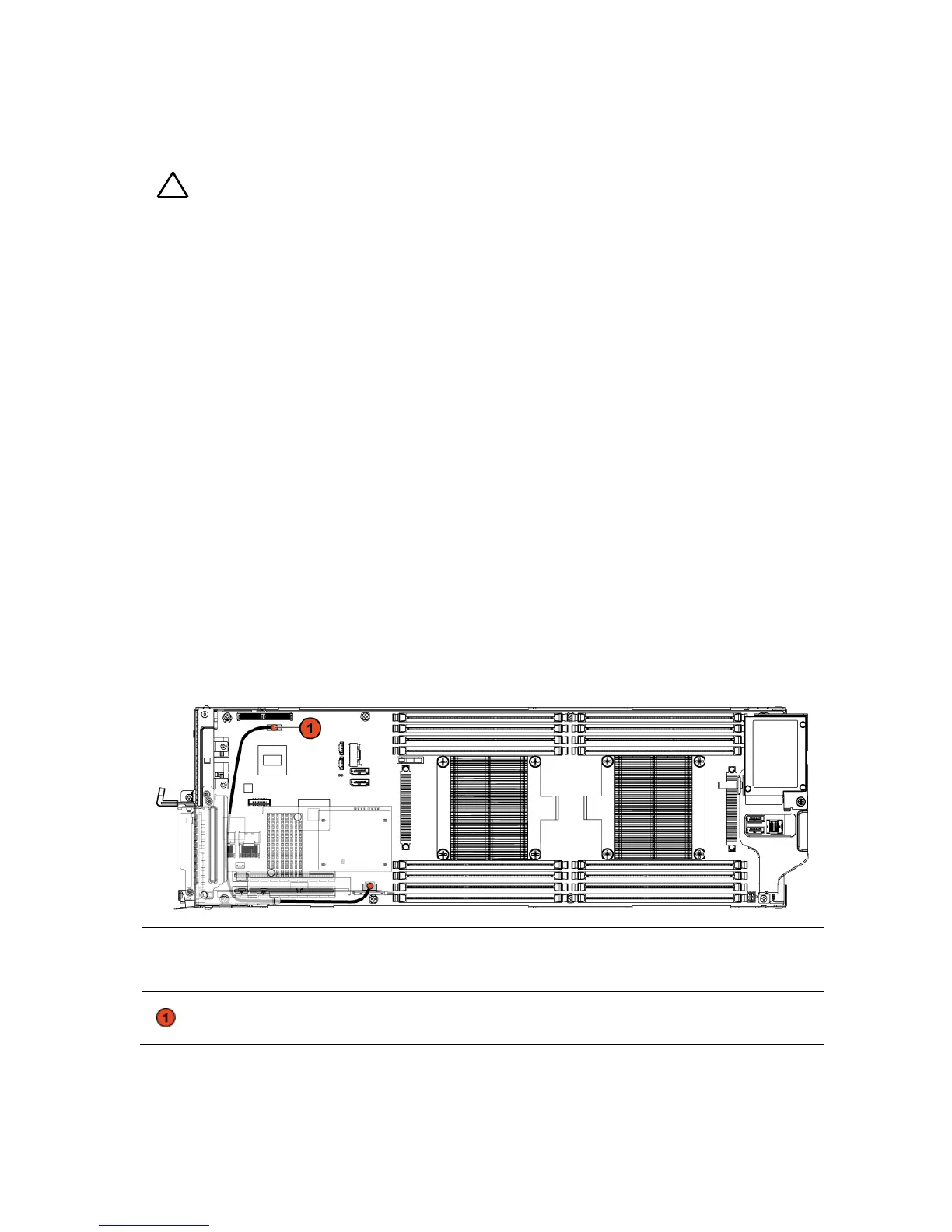

Figure 3-46. Cable Routing for 1U Riser Card USB Cable
