Dell PowerEdge C6220 II - Installing the Interposer Extender for 2 U Node

180 | Removing and Installing System Components
Assembly" on page 170.
2 Disconnect all the cables from the interposer extender for 2U node.
See Figure 5-11.
3 Remove the screws that secure the interposer extender for 2U node to
the interposer-extender tray. See Figure 3-21.
4 Lift the interposer extender for 2U node out of the interposer-extender
tray. See Figure 3-21.

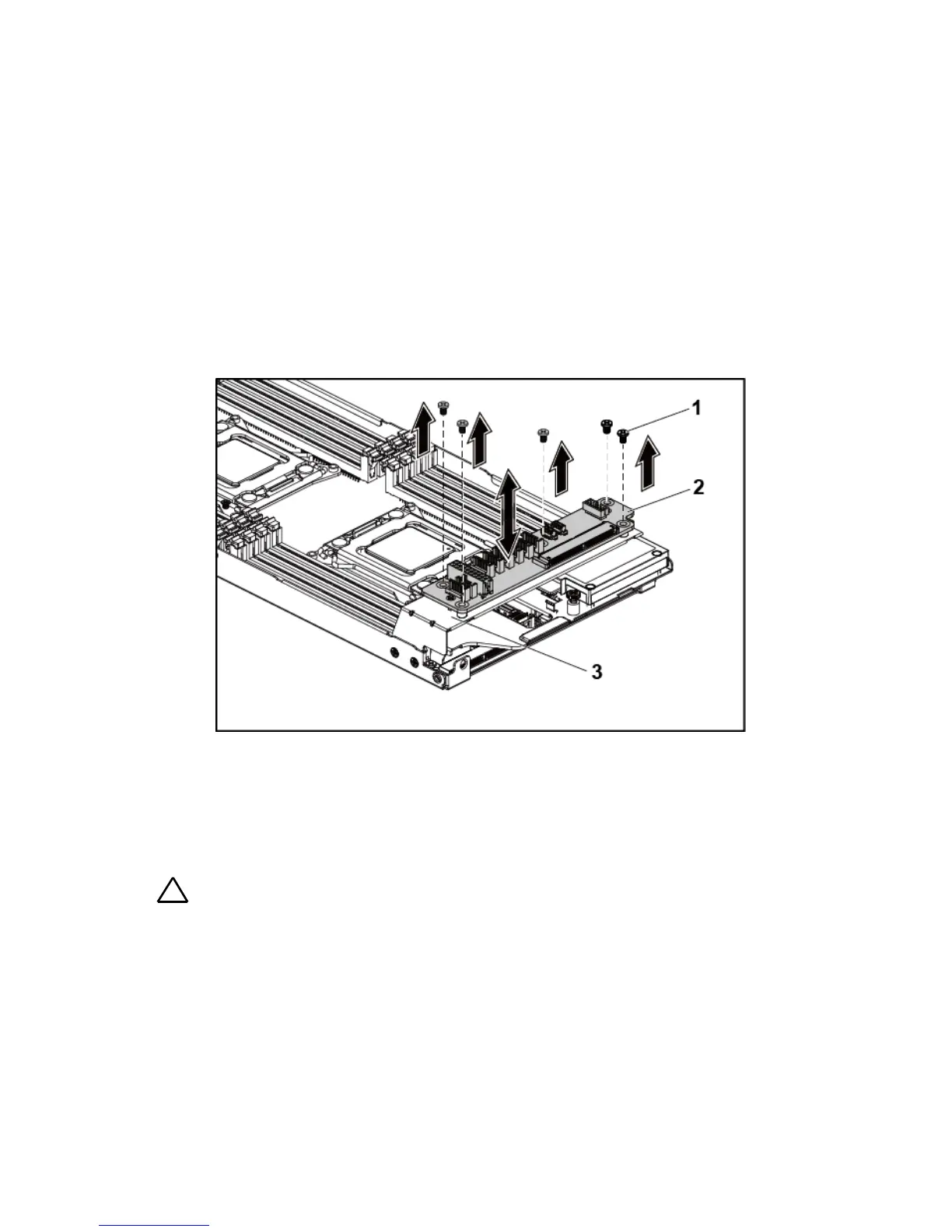

Figure 3-21. Removing and Installing the Interposer Extender for 2U Node
1
screw (5)
2
interposer extender for 2U node
3
interposer-extender tray
Installing the Interposer Extender for 2U Node
1 Place the interposer extender for 2U node into the interposer-extender
tray. See Figure 3-21.
CAUTION: Many repairs may only be done by a certified service technician. You
should only perform troubleshooting and simple repairs as authorized in your
product documentation, or as directed by the online or telephone service and
support team. Damage due to servicing that is not authorized by Dell is not
covered by your warranty. Read and follow the safety instructions that came with
the product.
