Dell PowerEdge C6220 II - Back Panel Features and Indicators

24 | About Your System
Back Panel Features and Indicators

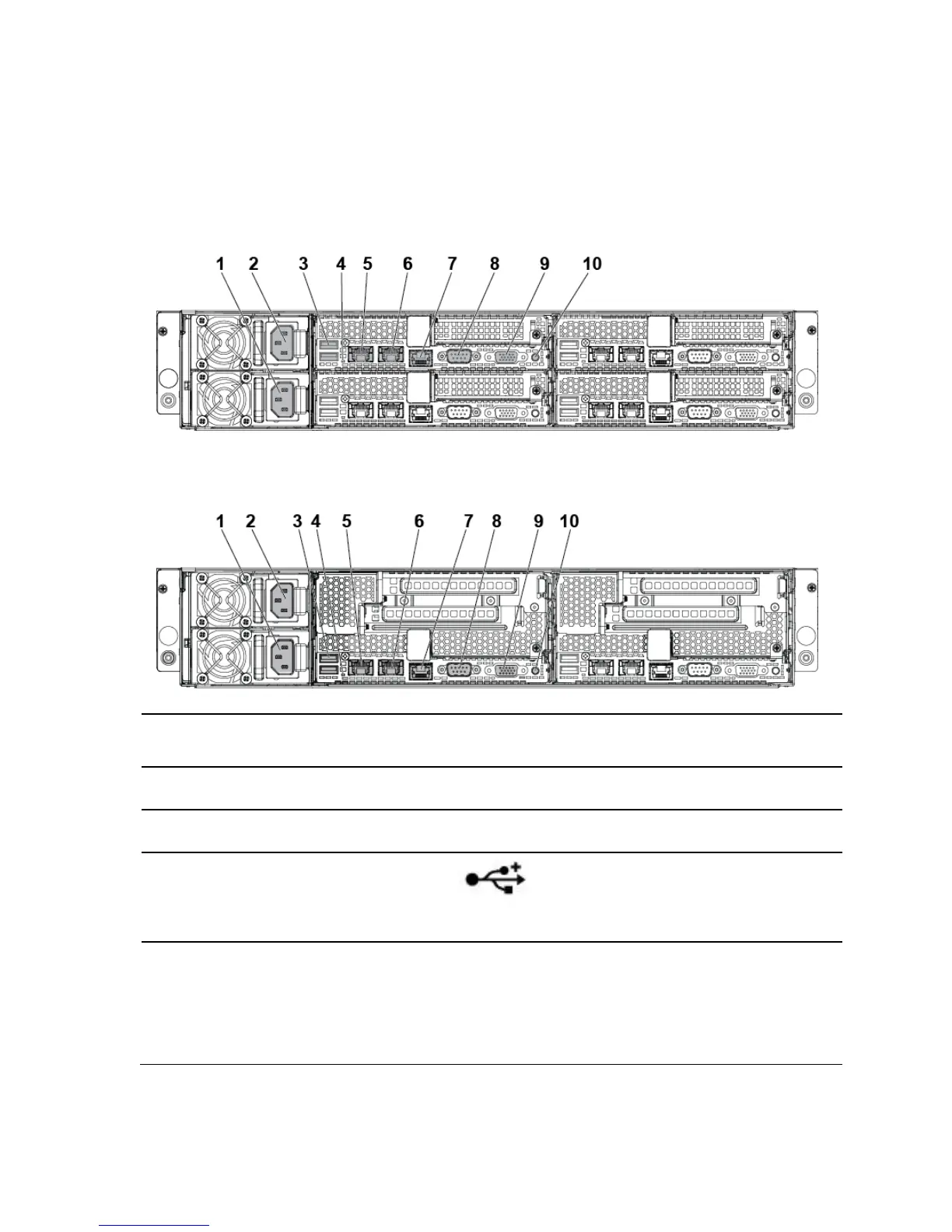

Figure 1-14 Back Panel with Four System Boards
Figure 1-15 Back Panel with Two System Boards
Item
Indicator, Button
Or Connector
Icon
Description
1
Power supply 2
1200 W/1400 W
2
Power supply 1
1200 W/1400 W
3
dual USB port
Connect USB devices to the
system. The ports are USB 2.0-
compliant.
4
System identification
indicator
Both the systems management
software and the identification
buttons located on the front can
cause the indicator to flash blue
to identify a particular system
