334 | Jumpers and Connectors
Interposer Extender for 2U Node Connectors

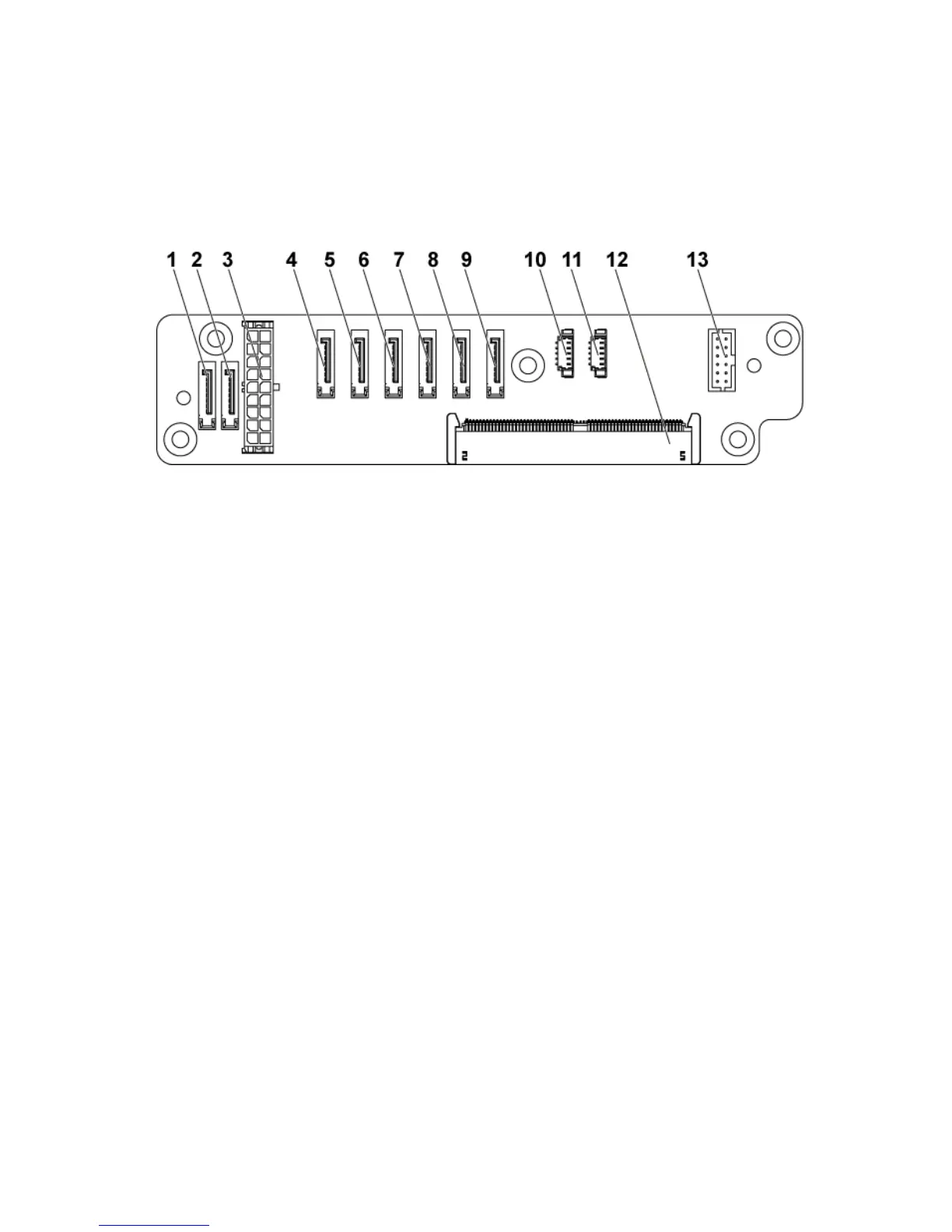

Figure 5-11. Interposer Extender for 2U node Connectors
1
SATA2 and SAS connectors
connector 6
2
SATA2 and SAS connectors
connector 7
3
2x9pin power connector
4
SATA2 and SAS connectors
connector 5
5
SATA2 and SAS connectors 4
6
SATA2 and SAS connectors
connector 3
7
SATA2 and SAS connectors 2
8
SATA2 and SAS connectors
connector 1
9
SATA2 and SAS connectors 0
10
SGPIO Connector 1
11
SGPIO Connector 2
12
middle plane connector
13
2x6pin control connector
