220 | Removing and Installing System Components

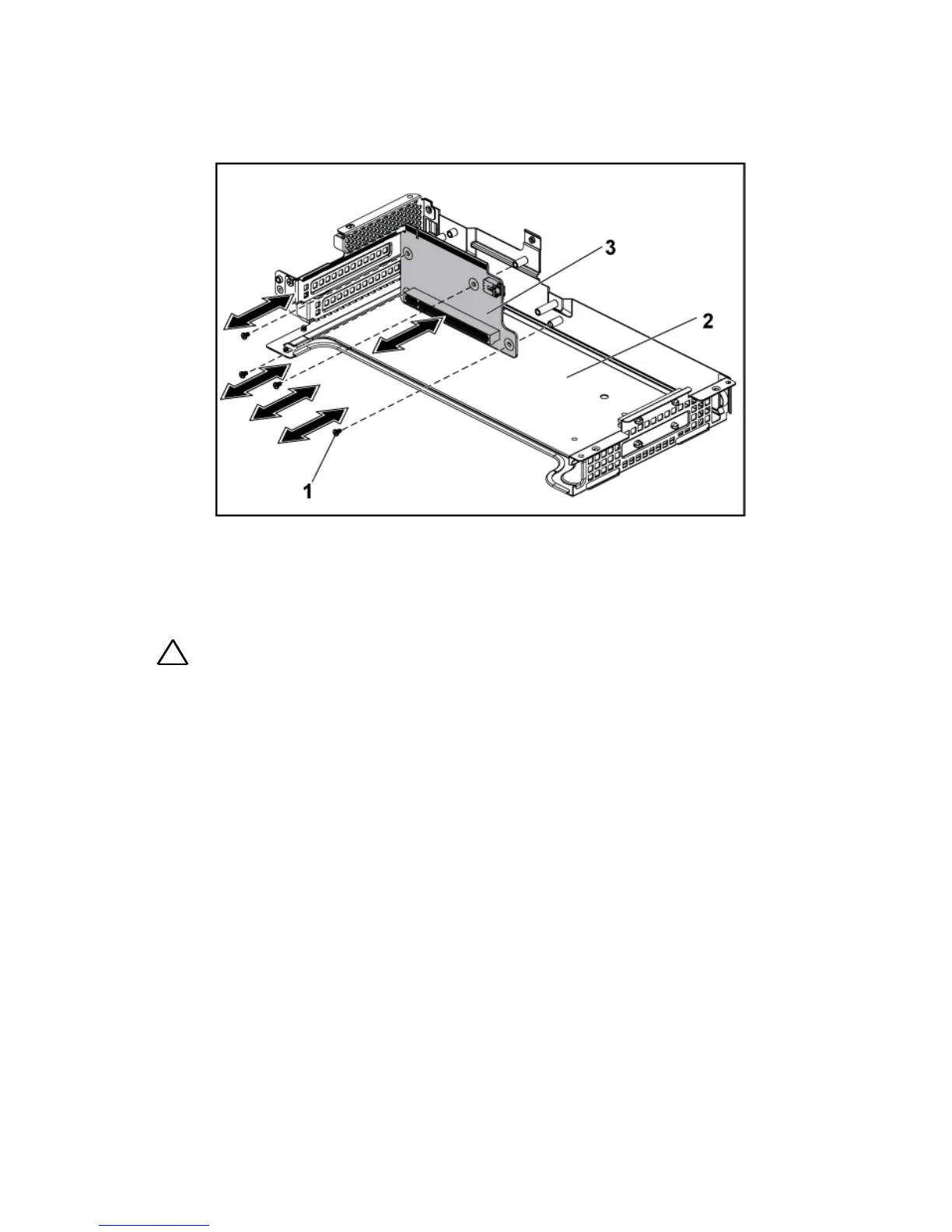

Figure 3-48. Removing and Installing the 2U Riser card
Installing the Riser card for 2U Node
CAUTION: Many repairs may only be done by a certified service technician. You
should only perform troubleshooting and simple repairs as authorized in your
product documentation, or as directed by the online or telephone service and
support team. Damage due to servicing that is not authorized by Dell is not
covered by your warranty. Read and follow the safety instructions that came with
the product.
2 Place the 2U riser card into the expansion-card bracket. See Figure 3-
48.
3 Replace the four screws securing the 2U riser card to the expansion-
card bracket. See Figure 3-48.
4 Place the 1.5U riser card into the expansion-card bracket. See Figure 3-
47.
5 Replace the two screws securing the 1.5U riser card to the expansion-
card bracket. See Figure 3-47.
