Cable Routing for Onboard SATA Cables (2U Node with 2.5” HDDs)
1 Connect the onboard SATA cable to the system board, and connect
the other end of the cable to the corresponding connectors on the
other side of the system board. See Figure 3-72.
2 Connect the onboard SATA cable to the system board, and connect
the other end of the cable to the corresponding connectors on the
other side of the system board. See Figure 3-72.
3 Connect the power cable to the system board, and connect the other
end of the cable to the corresponding connector on the interposer
extender for 2U node. See Figure 3-72.

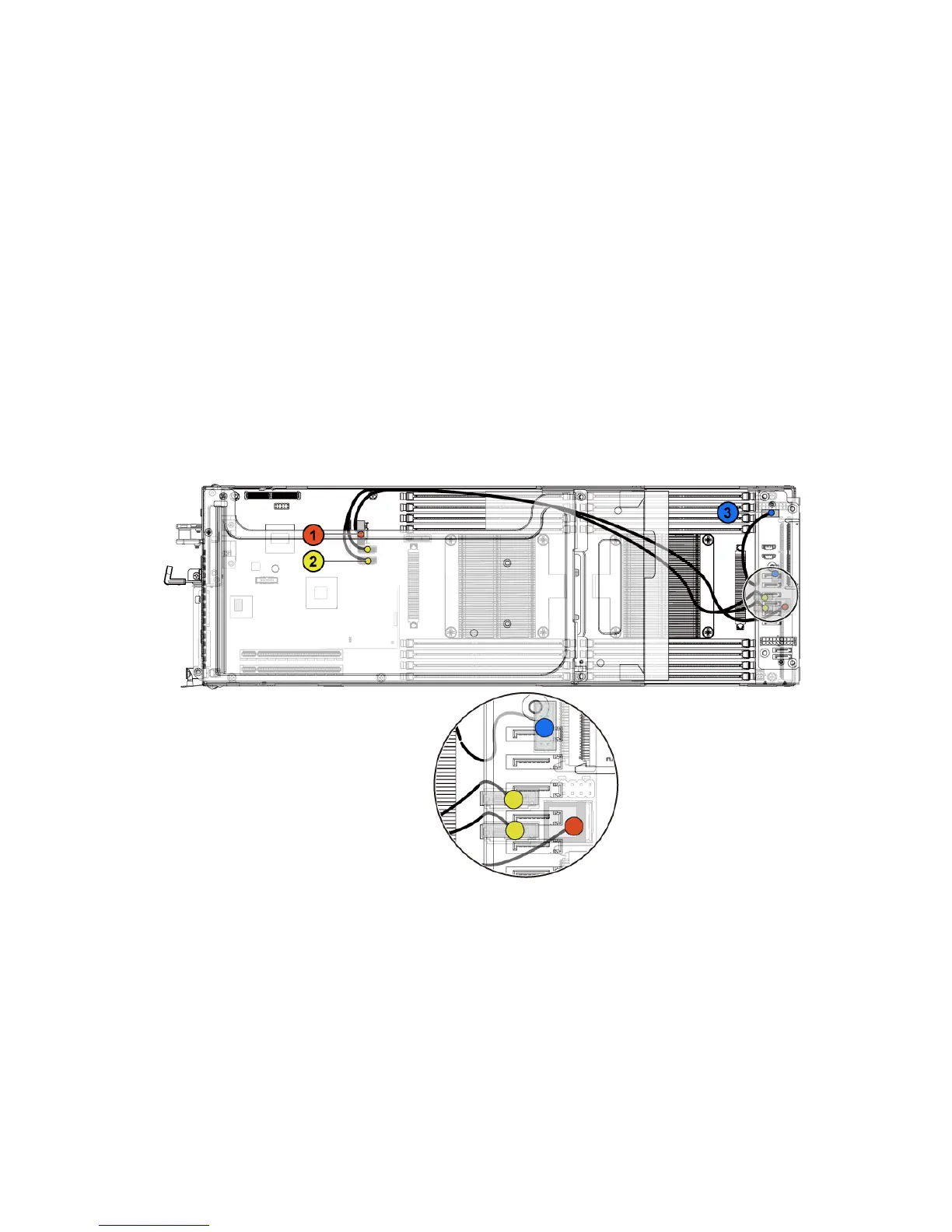

Figure 3-72. Cable Routing for Onboard SATA Cables (2U Node with 2.5” HDDs)
