Dell PowerEdge C6220 II - Hard-Drive Direct Backplane

330 | Jumpers and Connectors
2.5" Hard-Drive Direct Backplane

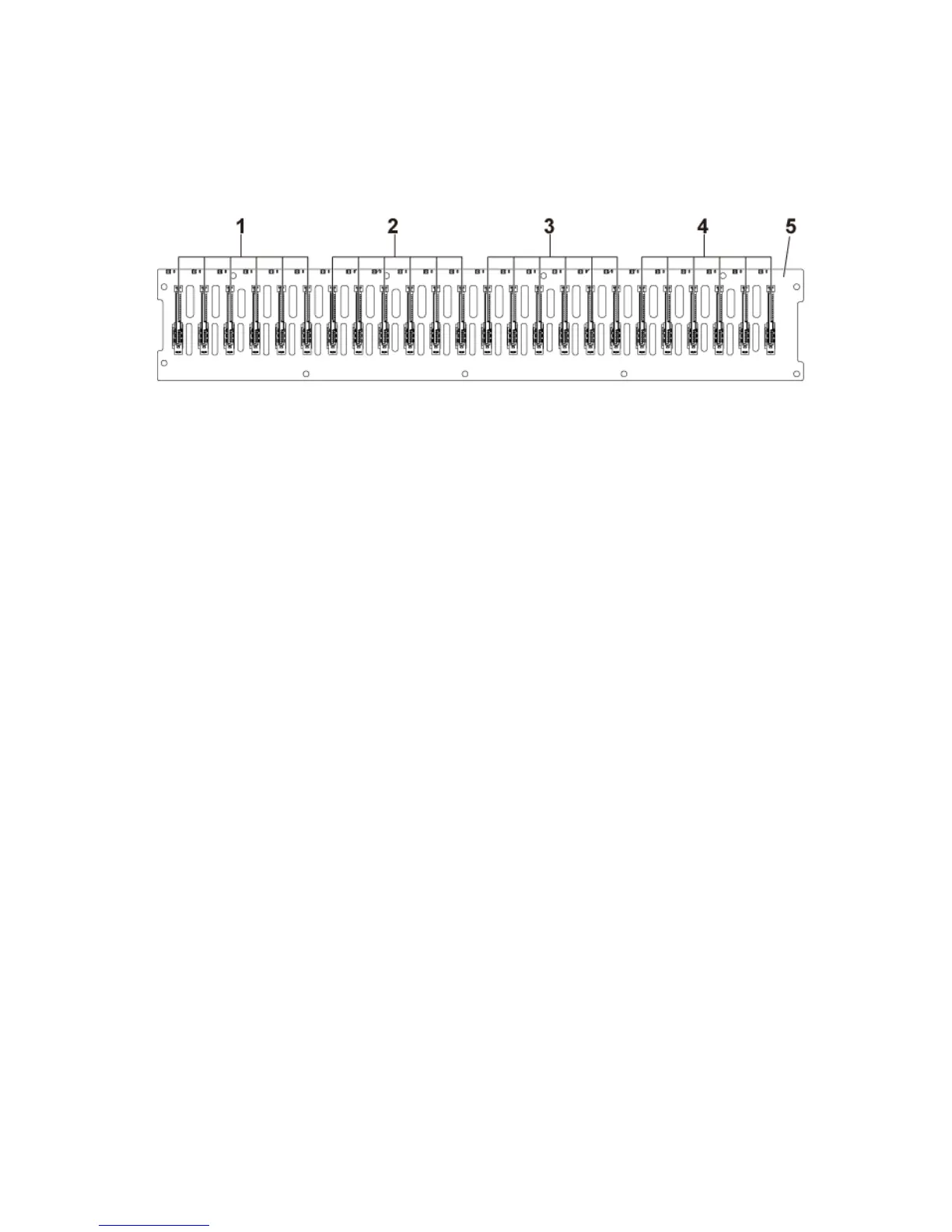

Figure 5-5. Front View of the Backplane
1
hard drive connectors 1 to 6 for
system board 1 (from left to right)
2
hard drive connectors 1 to 6 for
system board 2 (from left to right)
3
hard drive connectors 1 to 6 for
system board 3 (from left to right)
4
hard drive connectors 1 to 6 for
system board 4 (from left to right)
5
2.5” backplane
