Jumpers and Connectors | 329

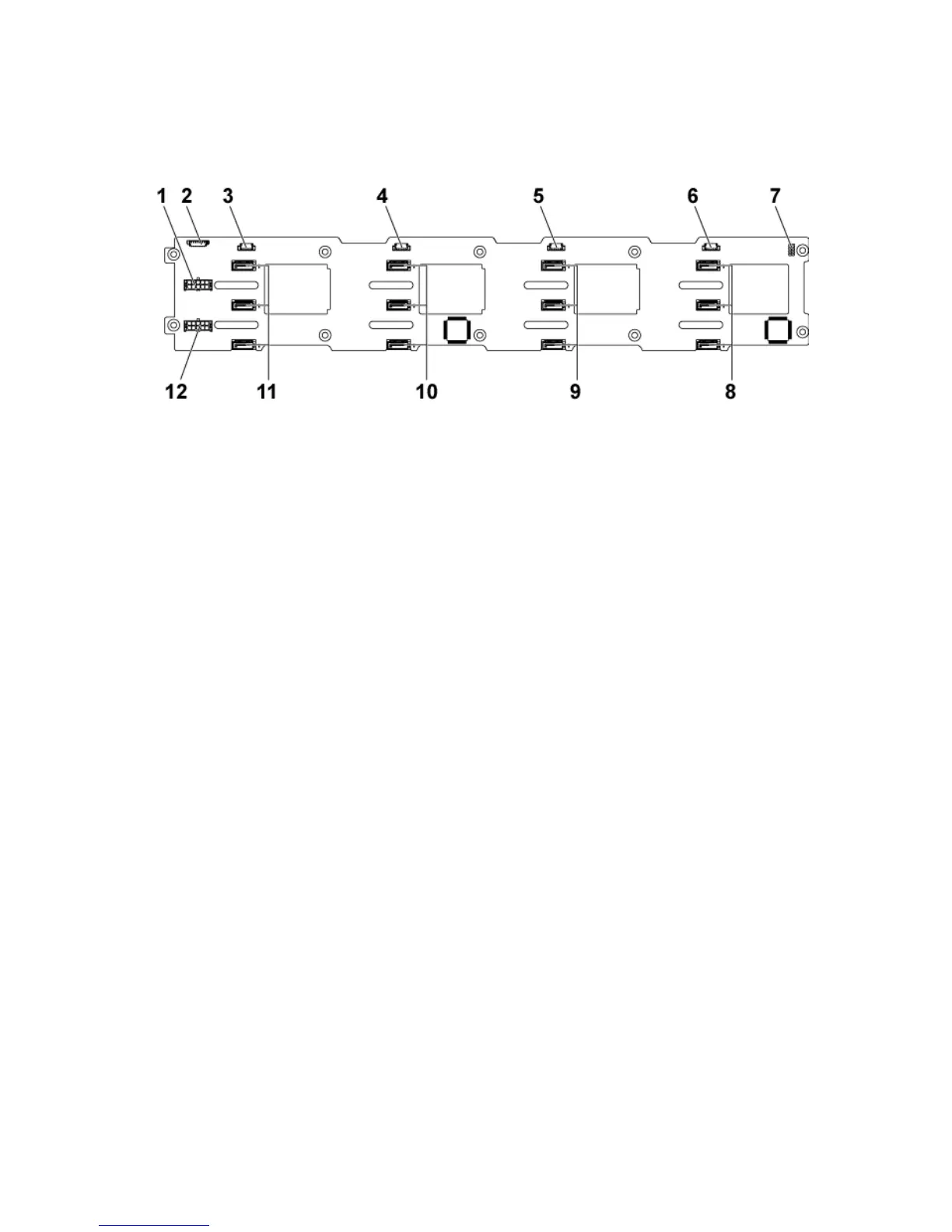

Figure 5-4. Back View of the Backplane
1
backplane power connector for
power supply 1
2
1x8pin fan controller board
connector
3
SGPIO connector 4 for system board
4
4
SGPIO connector 3 for system
board 3
5
SGPIO connector 2 for system board
2
6
SGPIO connector 1 for system
board 1
7
backplane jumper
8
SATA2 and SAS connectors 1, 2
and 3 for system board 1 (from top
to bottom)
9
SATA2 and SAS connectors 1, 2 and
3 for system board 2 (from top to
bottom)
10
SATA2 and SAS connectors 1, 2
and 3 for system board 3 (from top
to bottom)
11
SATA2 and SAS connectors 1, 2 and
3 for system board 4 (from top to
bottom)
12
backplane power connector for
power supply 2
