Dell PowerEdge C6220 II - Cable Routing for LSI 2008 SAS Mezzanine Card (2 U Node)

Removing and Installing System Components | 225
3 Press down on the cables, and ensure the cables are routed lower than
the height of the CPU heat sinks.

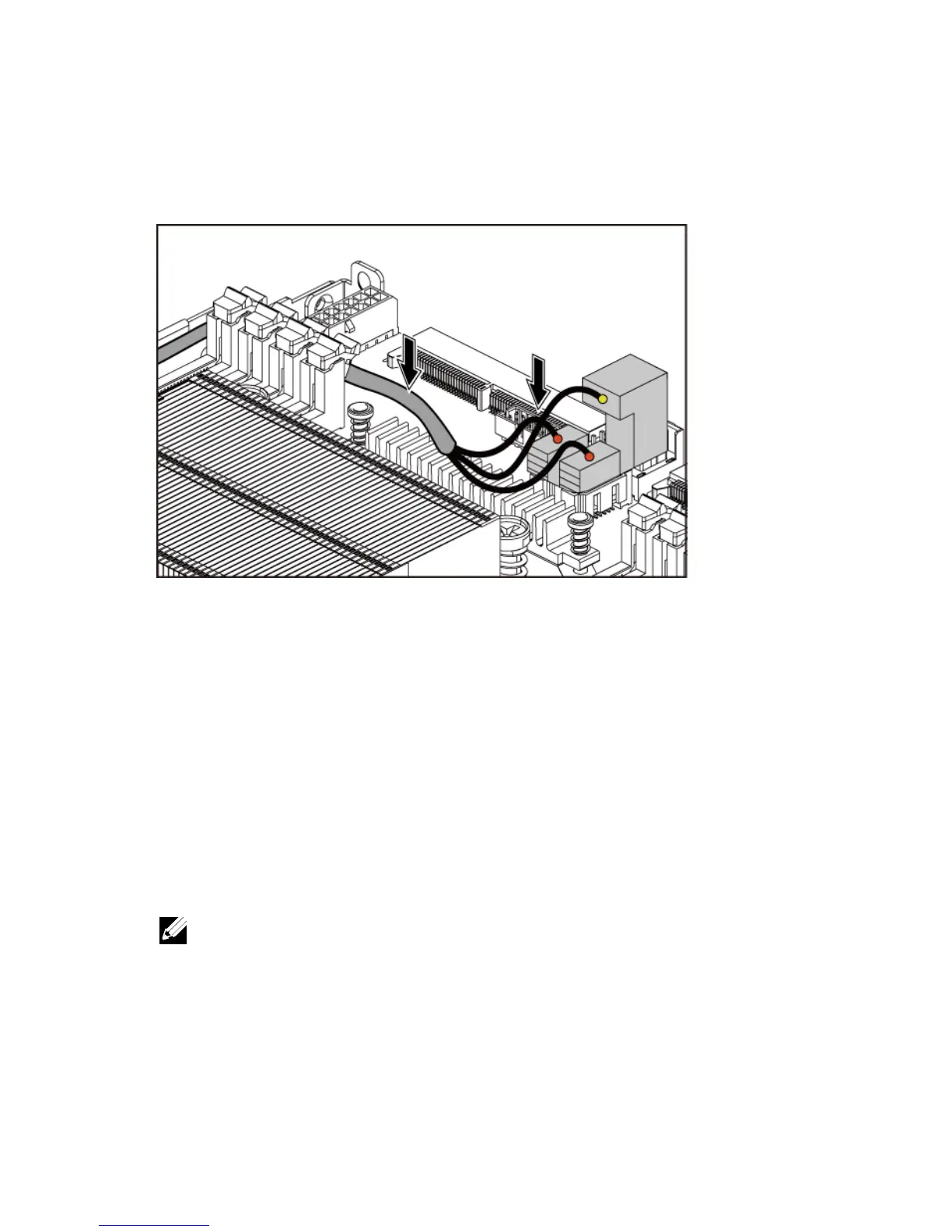

Figure 3-52. Cable Routing Down for LSI 2008 SAS Mezzanine Card (1U Node)
Cable Routing for LSI 2008 SAS Mezzanine Card (2U Node)
1 Connect the mini-SAS cable to the LSI 2008 SAS mezzanine card, and
connect the other end of the cable to the corresponding connector on
the system board. See Figure 3-53.
2 Connect the mini-SAS&SGPIO cable to the LSI 2008 SAS mezzanine
card, and connect the other end of the cable to the corresponding
connectors on the interposer extender for 2U node. See Figure 3-53.
3 Connect the power cable to the interposer extender for 2U node, and
connect the other end of the cable to the corresponding connector on
the system board. See Figure 3-53.
NOTE: The SGPIO cable must be connected before the LSI 2008 SAS Mezzanine
card is installed.
