Installing a Hard Drive into a Hard-Drive Carrier
1 Place the hard drive into the hard-drive carrier. See Figure 3-9.
2 Secure the hard drive to the hard-drive carrier with four screws. See
Figure 3-9.
Installing a 2.5” SSD into a 3.5” Hard-Drive Carrier
1 Place the 2.5” SSD into the 2.5” adapter bracket. See Figure 3-10.
2 Secure the 2.5” SSD to the 2.5” adapter bracket with two M3 screws.
See Figure 3-10.

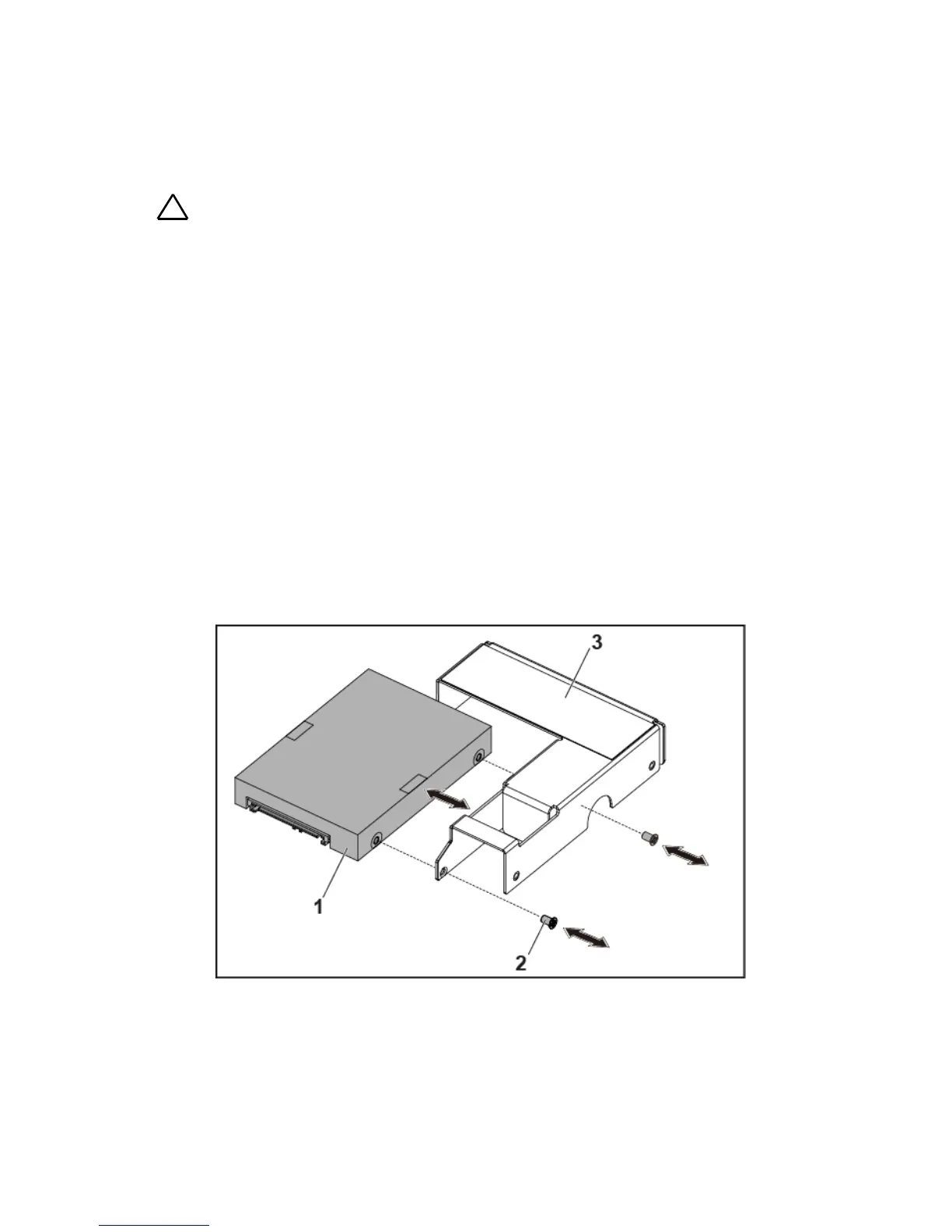

Figure 3-10. Removing and Installing a 2.5” SSD from the 2.5”adapter bracket
1
2.5” SSD
2
M3 screw (2)
3
2.5” adapter
CAUTION: Many repairs may only be done by a certified service technician. You
should only perform troubleshooting and simple repairs as authorized in your
product documentation, or as directed by the online or telephone service and
support team. Damage due to servicing that is not authorized by Dell is not
covered by your warranty. Read and follow the safety instructions that came with
the product.
