164 | Removing and Installing System Components
3 Place the adapter assembly into the 3.5” hard-drive carrier. See Figure
3-11.
4 Secure the adapter assembly to the 3.5” hard-drive carrier with three
mach screws. See Figure 3-11

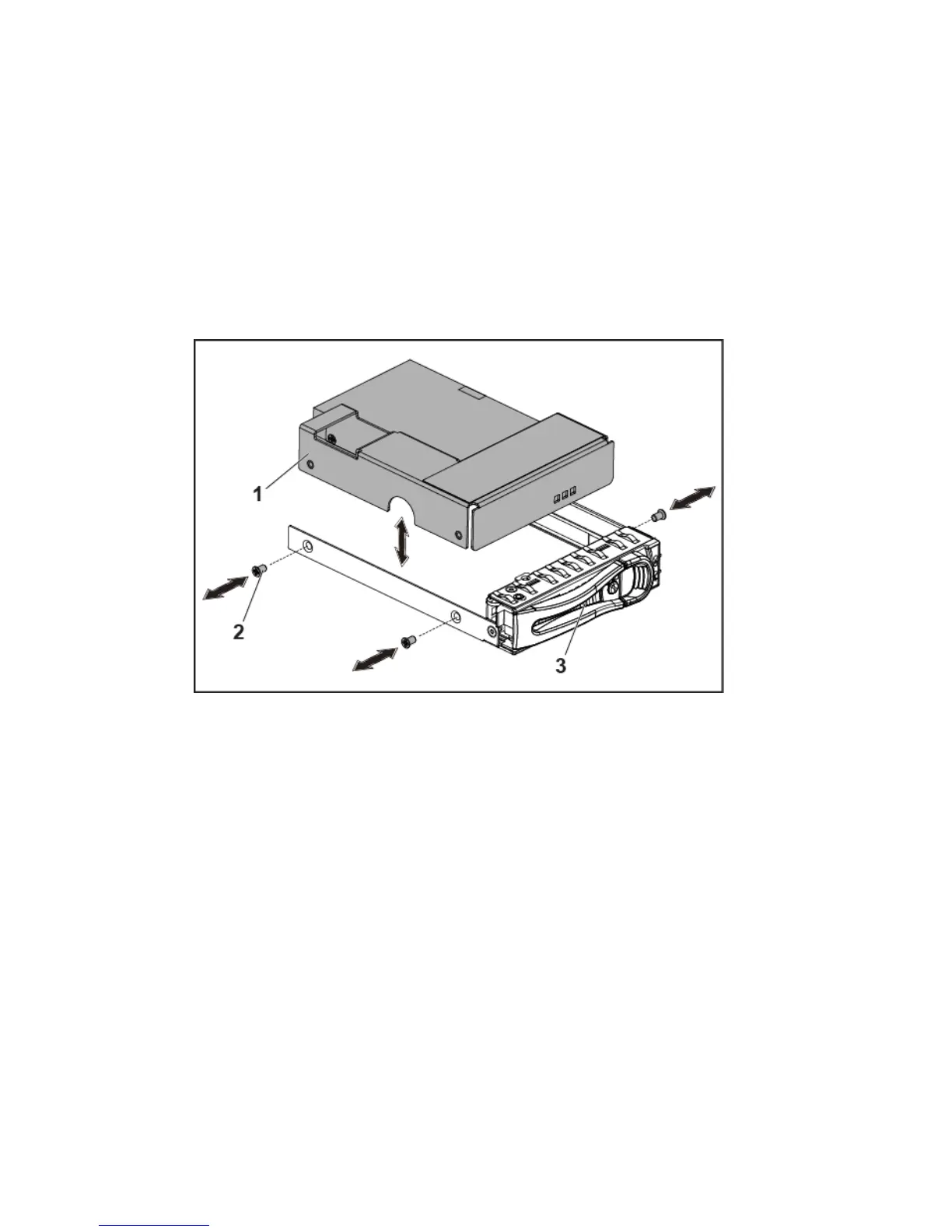

Figure 3-11. Removing and Installing a adapter assembly from the Hard-Drive
Carrier
1
adapter assembly
2
mach screw (3)
3
hard-drive carrier
