5 Disconnect the fan cable from the fan connector on the cooling-fan
cage. See Figure 3-5.
6 Lift the cooling fan with the sponge out of the cooling-fan cage. See
Figure 3-5.

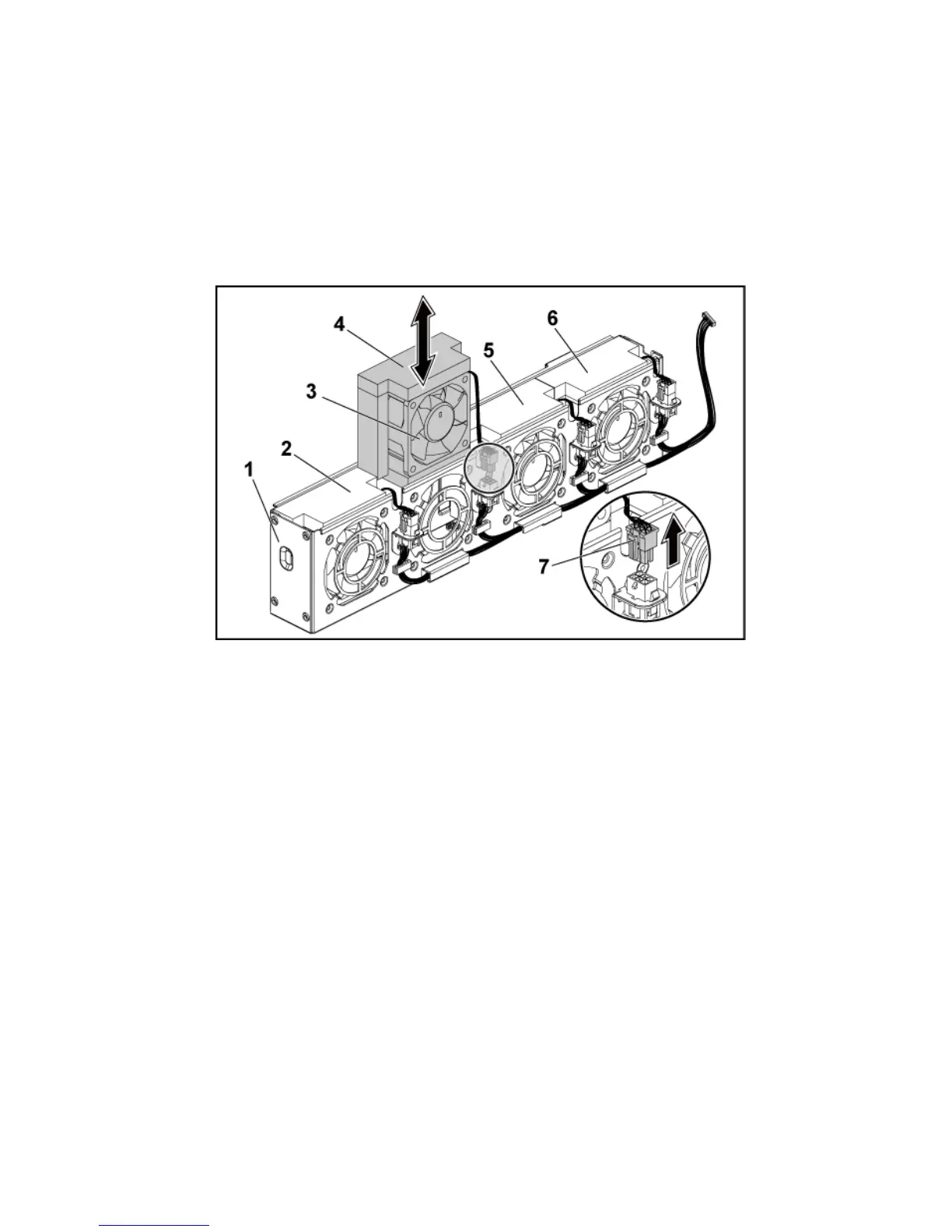

Figure 3-5. Removing and Installing a Cooling Fan
1
cooling-fan cage
2
cooling fan 1
3
cooling fan 2
4
sponge
5
cooling fan 3
6
cooling fan 4
7
fan cable
