Removing and Installing System Components | 203

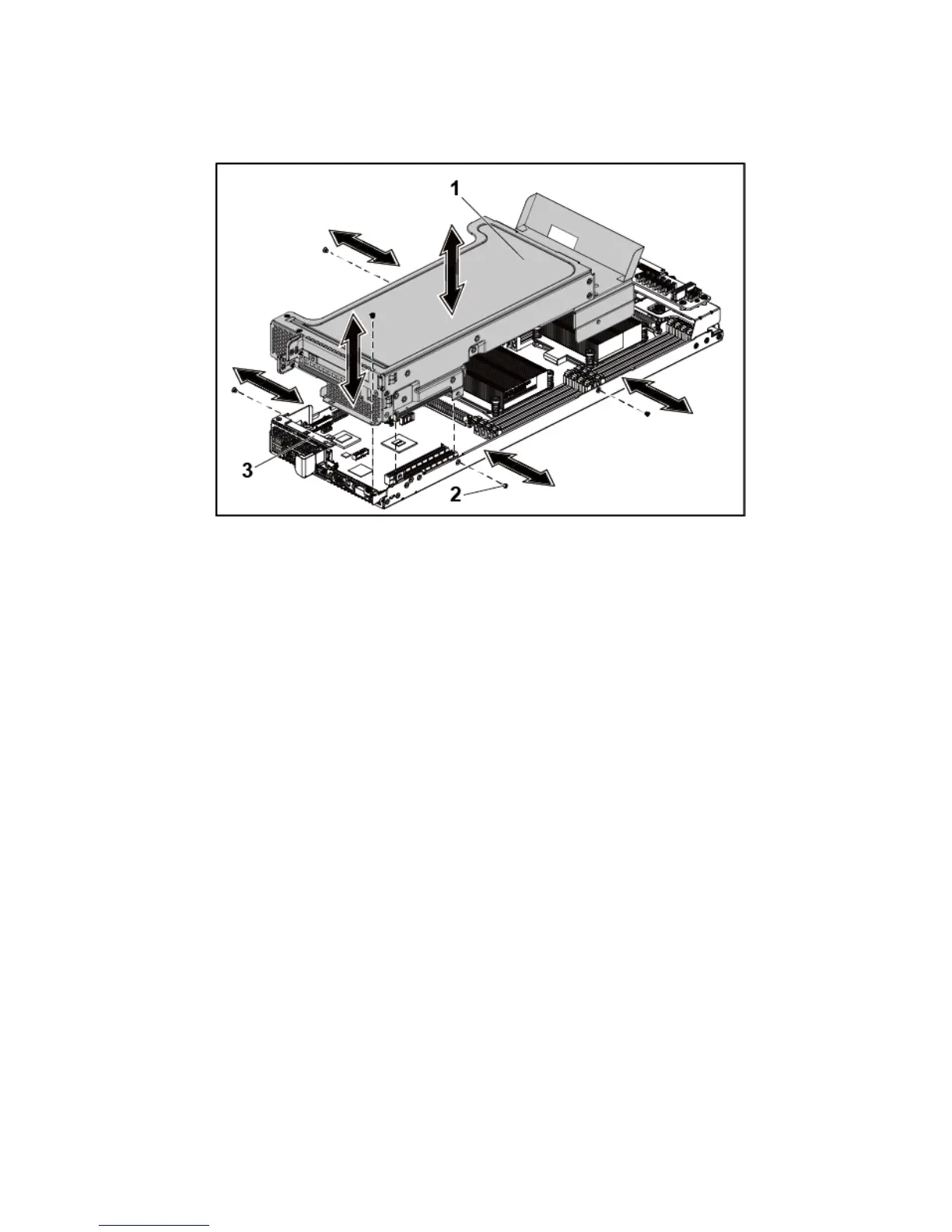

Figure 3-34. Removing the LSI 9265-8i Card Assembly for 2U Node
1
LSI 9265-8i-card assembly
2
screw (5)
3
system-board assembly
5 Remove the four screws securing the LSI 9265-8i card lock cover. See
Figure 3-35.
6 Remove the LSI 9265-8i card lock cover. SeeFigure 3-35.
