208 | Removing and Installing System Components
NOTE: When connecting the RAID battery cable, the BBU interposer card should
be installed on the LSI 9265-8i card. The BBU interposer card in the figure below
is just for you reference.

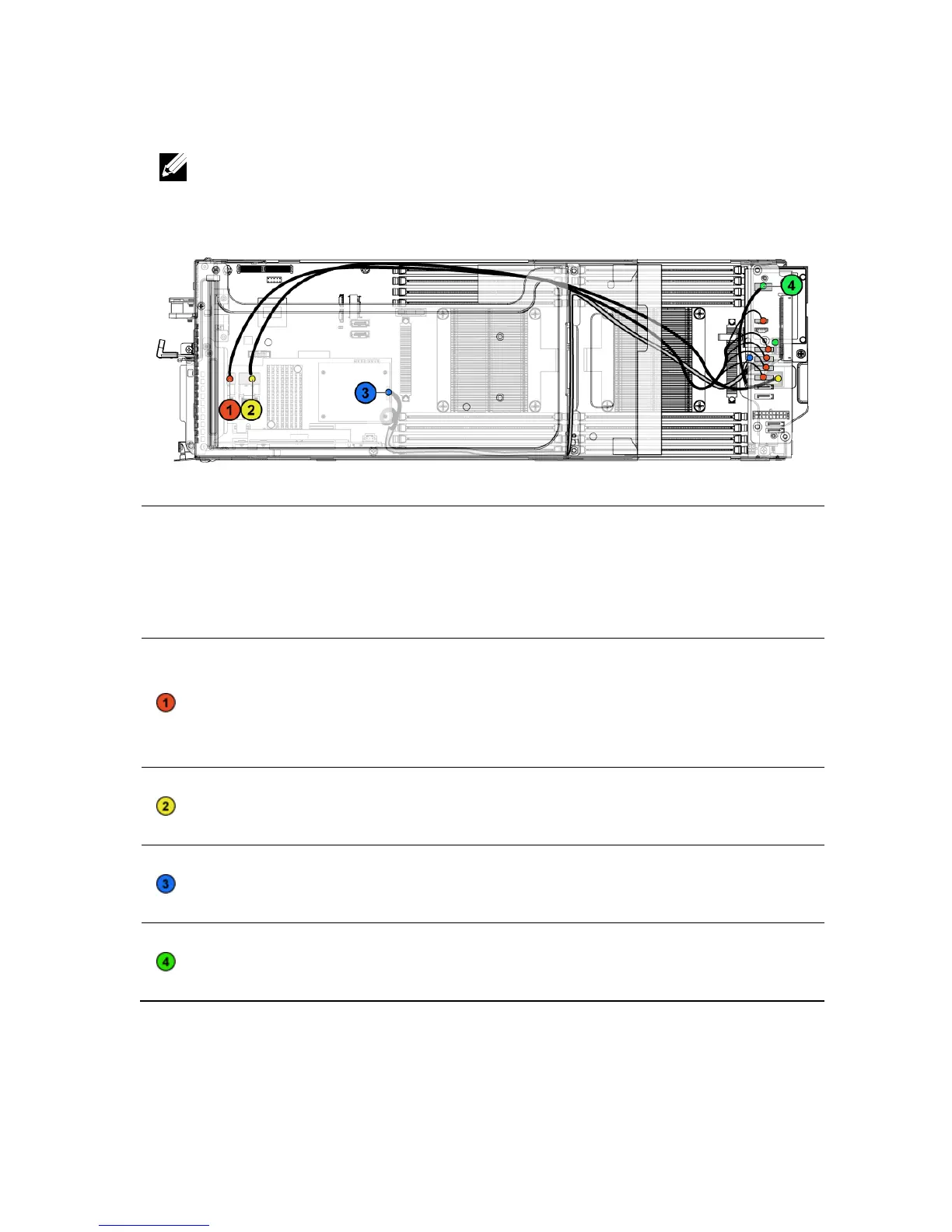

Figure 3-37. Cable Routing for LSI 9265-8i Card (2U Node)
Item
Cable
From
(LSI 9265-8i Card)
To
(RAID Battery,
Interposer Extender for
2U Node, and System
Board)
Mini-SAS
/SGPIO cable
Mini-SAS connector
0~3 (J2B1)
SATAII connectors
0~3 and SGPIO 1
connector on the
interposer extender for
2U node
Mini-SAS
cable
Mini-SAS connector
4~7 (J2B2)
SAS/SATA input
connector 0 on the
system board
RAID battery
cable
RAID battery connector
(J4)
RAID battery
connector on the
RAID battery
power cable
Control connector (J3)
on the interposer
extender for 2U node
Front panel connector
on the system board
