Removing and Installing System Components | 233
3 Remove the screws that secure the expansion-card bracket. See Figure
3-59 for 1U node. See Figure 3-25 for 2U node.
4 Lift the expansion-card bracket out of the system-board assembly. See
Figure 3-59 for 1U node. See Figure 3-25 for 2U node.

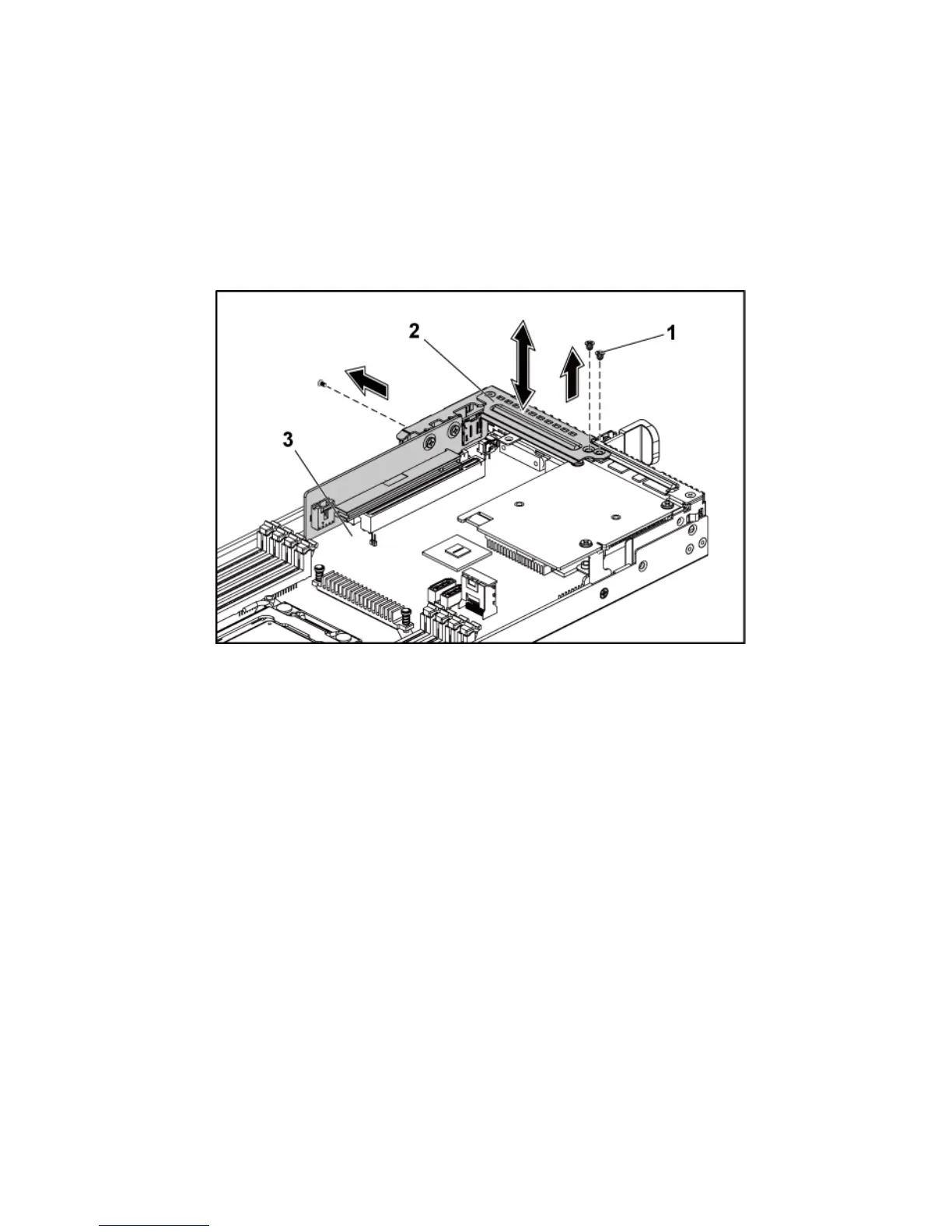

Figure 3-59. Removing and Installing the Expansion-Card Bracket
1
screw (3)
2
expansion-card bracket
3
system-board assembly
