Removing and Installing System Components | 257
8 Remove the screws securing the power distribution board 1 to the
system. See Figure 3-75.
9 Lift the power distribution board 1 out of the system. See Figure 3-75.

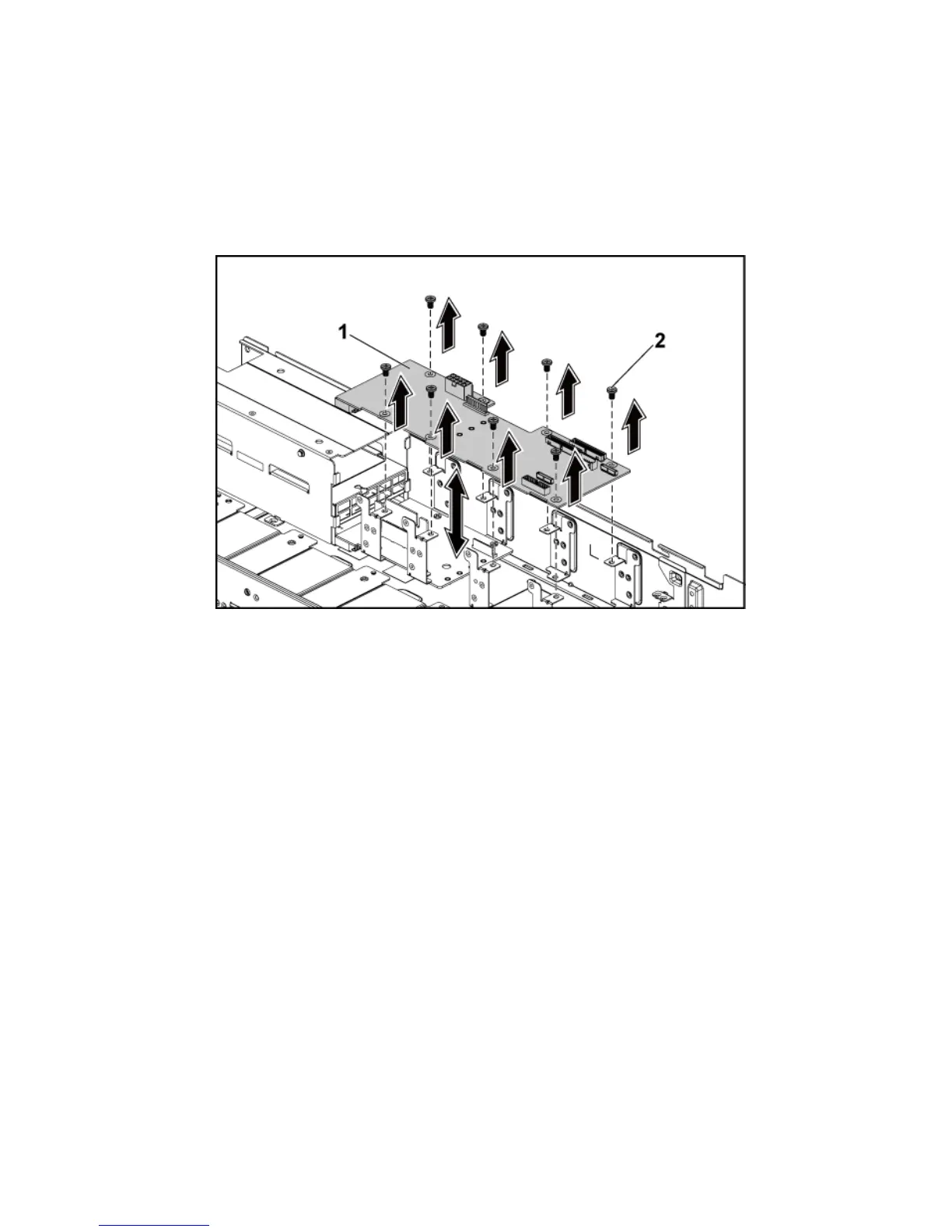

Figure 3-75. Removing and Installing the Power Distribution Board 1
1
power distribution board 1
2
screw (8)
