Dell PowerEdge R960 - Installing the Intrusion Switch Module

Next steps
1. Replace the intrusion switch module.
Installing the intrusion switch module
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the support bar.
4. Remove the air shroud top cover.
5. Remove the cooling fan cage assembly.
6. Remove the air shroud.
7. Remove the expansion card risers or remove the full length expansion card riser.
NOTE: See cable routing section for more information.
8. Remove the riser air shroud.
9. If required, remove the PEM.
NOTE: Ensure that you note the routing of the cable as you remove it from the system board. Route the cable properly
when you replace it to prevent the cable from being pinched or crimped.
Steps
1. Align and lower the intrusion switch module into the slot in the system until firmly seated.
2. Using a Phillips #1 screwdriver, tighten the screw on the intrusion switch module.
NOTE: Secure the intrusion switch cable to the cable clip.
3. Connect the intrusion switch cable to the connector on the rear I/O board.

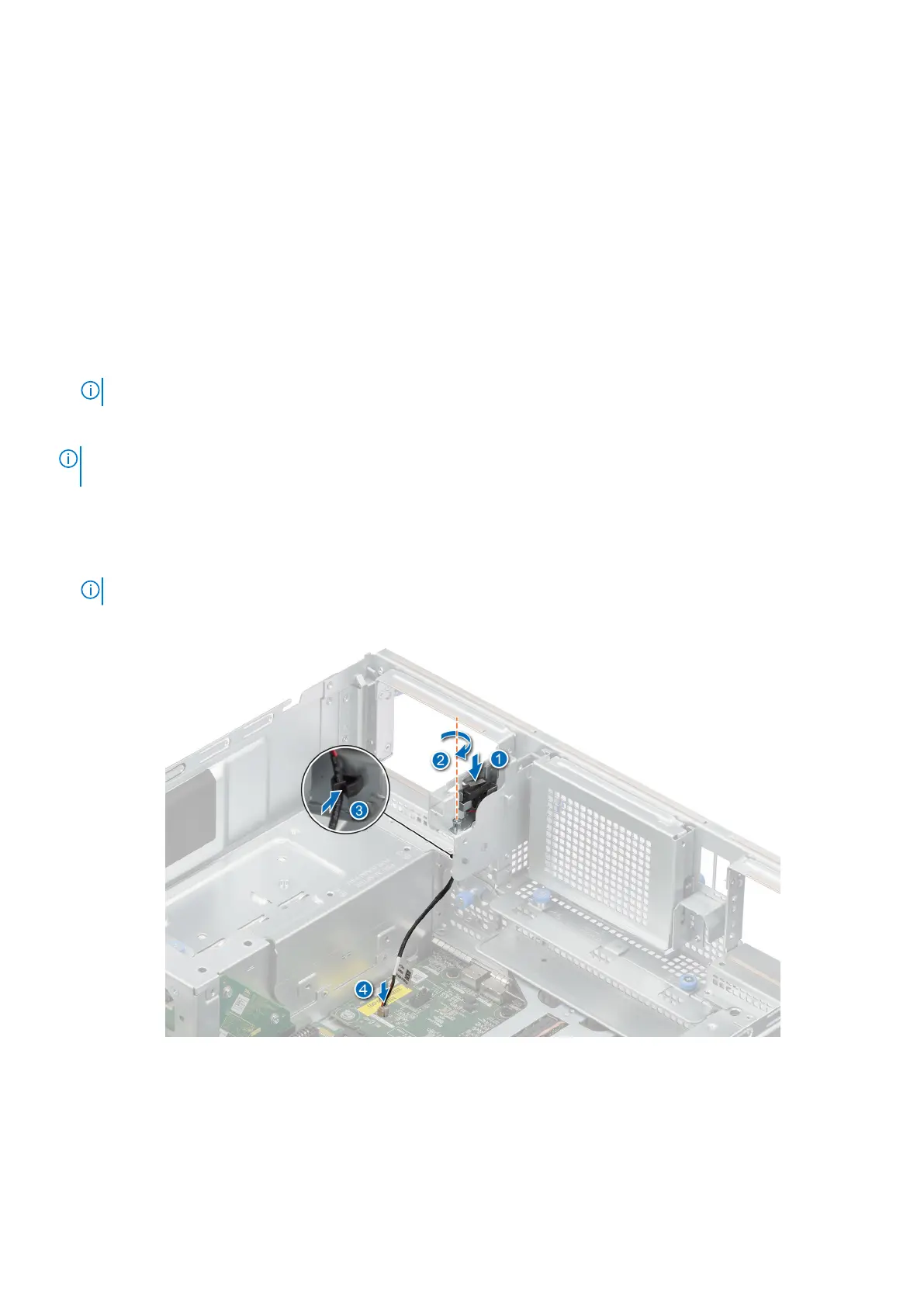

Figure 159. Installing the intrusion switch module
Next steps
1. If removed, install the PEM.
2. Install the riser air shroud.
