Air shrouds
Removing the air shroud top cover
Prerequisites
CAUTION: Never operate your system with the air shroud removed. The system may get overheated quickly,
resulting in shutdown of the system and loss of data.
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the support bar.
Steps
Holding the edges of the air shroud top cover, lift the top cover out of the air shroud.

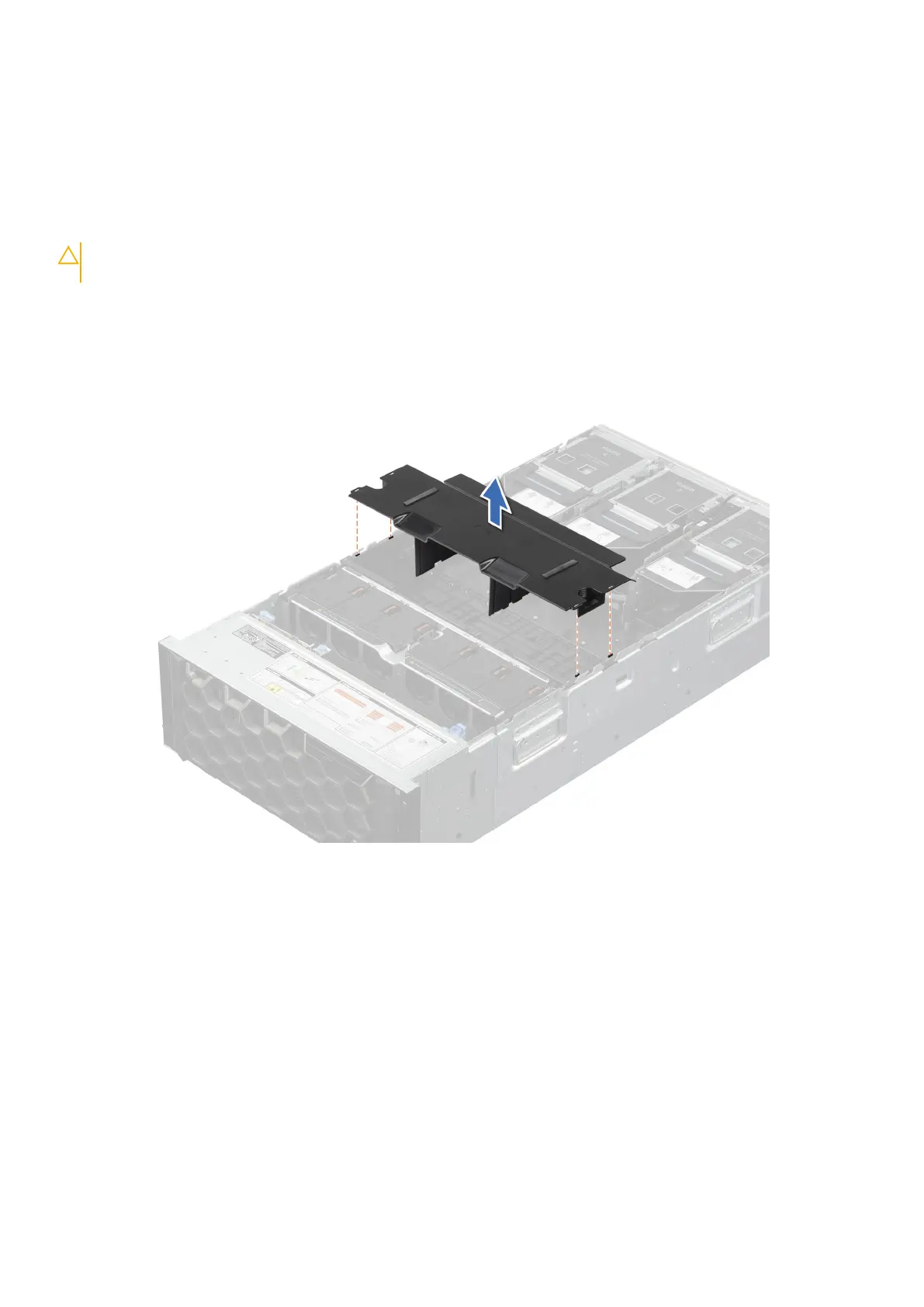

Figure 38. Removing the air shroud top cover
Next steps
1. Replace the air shroud top cover.
Installing the air shroud top cover
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the support bar.
Steps
Align the top cover tabs with the slots on the air shroud and lower the top cover until it is firmly seated.
