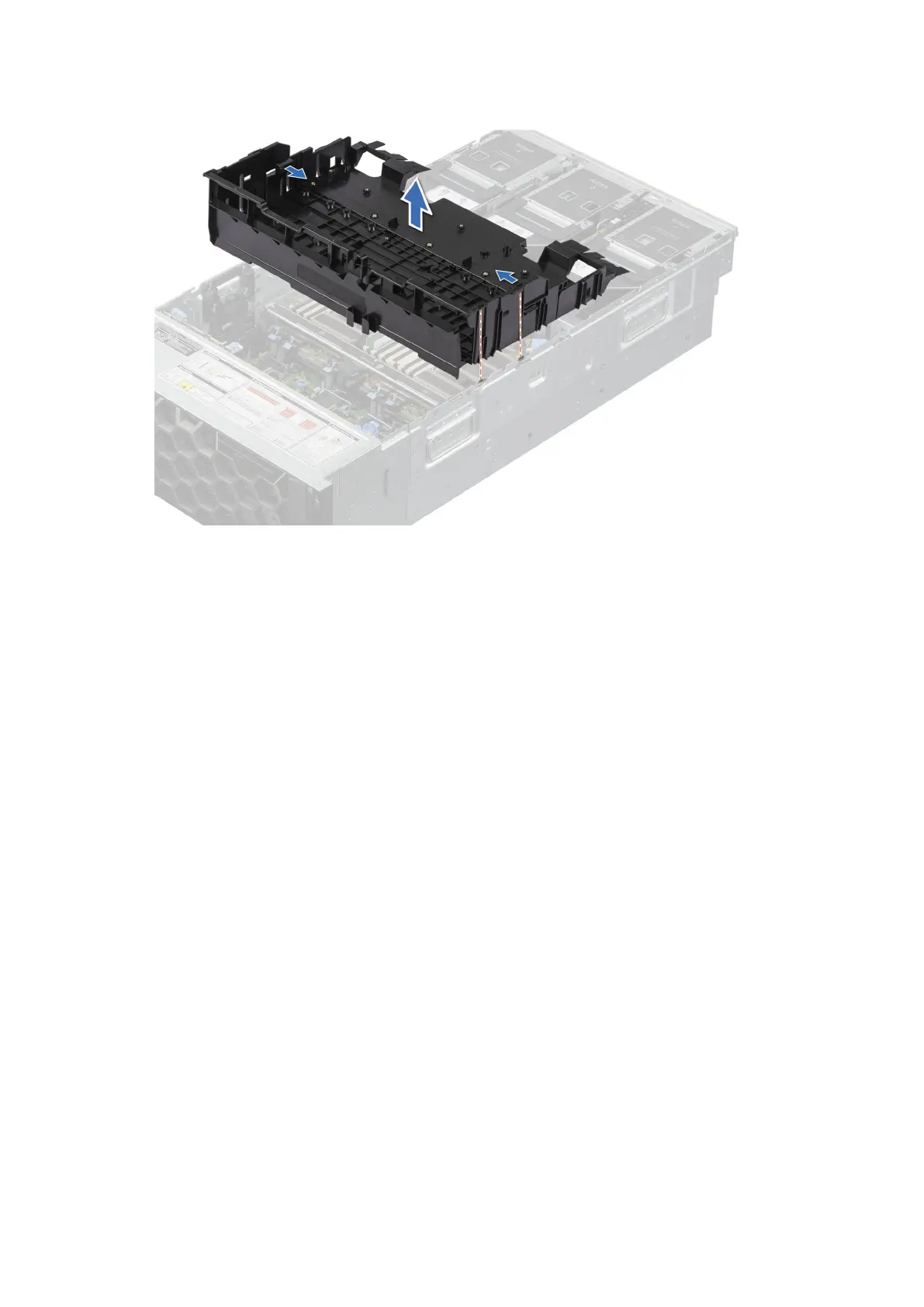

Figure 40. Removing the air shroud
Next steps
1. Replace the air shroud.
Installing the air shroud
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the support bar.
4. Remove the air shroud top cover.
5. Remove the cooling fan cage assembly.
Steps
1. Align the tabs on the air shroud with the slots on the system.
2. Lower the air shroud, until it is firmly seated and secured into the system slots.
