Inside the system

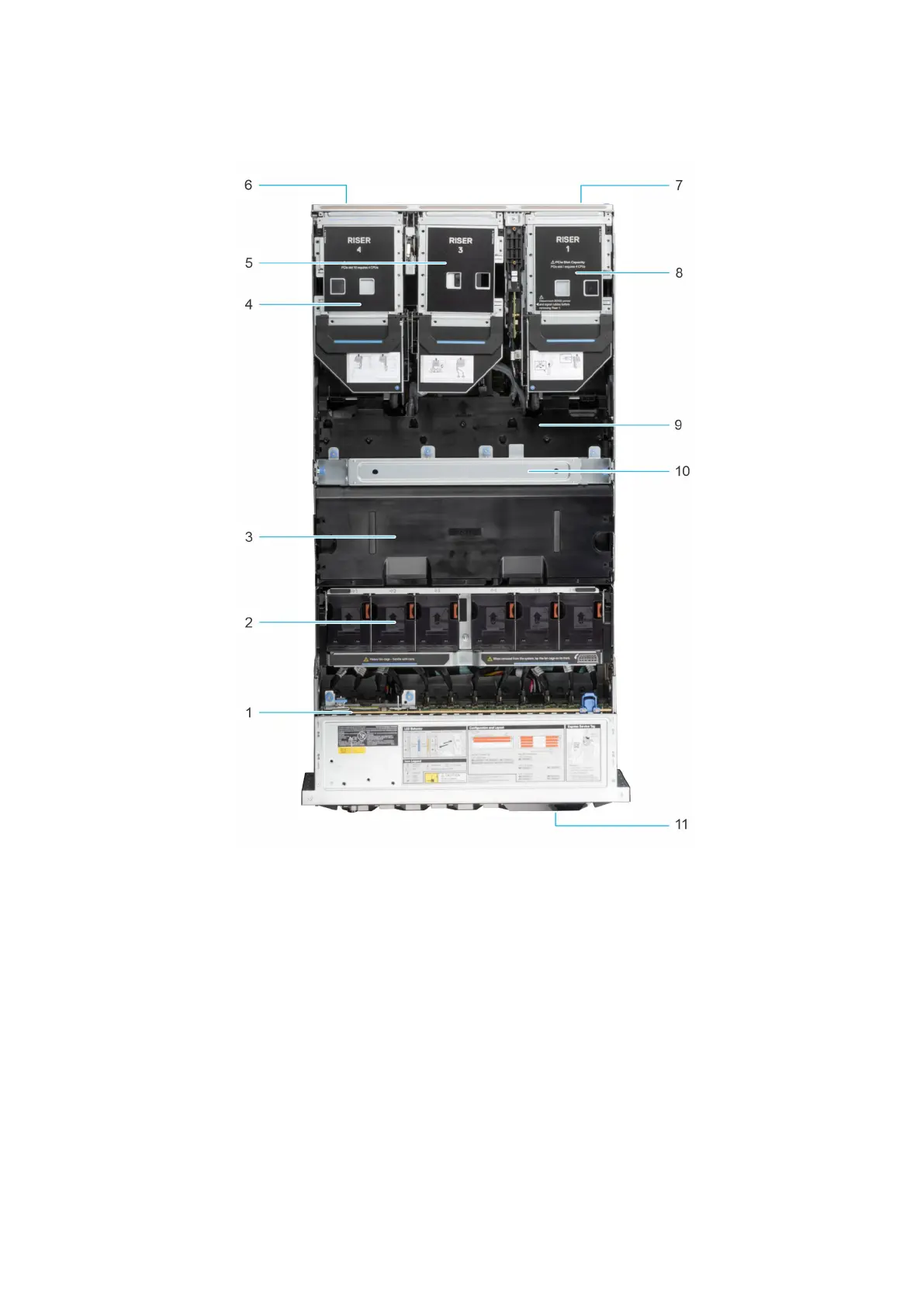

Figure 9. Inside the system
1.
Backplane 2. Cooling fans
3. Air shroud top cover 4. Expansion riser 4
5. Expansion riser 3 6. Power supply units (PSU2 and PSU4)
7. Power supply units (PSU1 and PSU3) 8. Expansion riser 1
9. Air shroud bottom cover 10. Support bar
11. Express Service Tag
16 Dell PowerEdge R960 system overview
