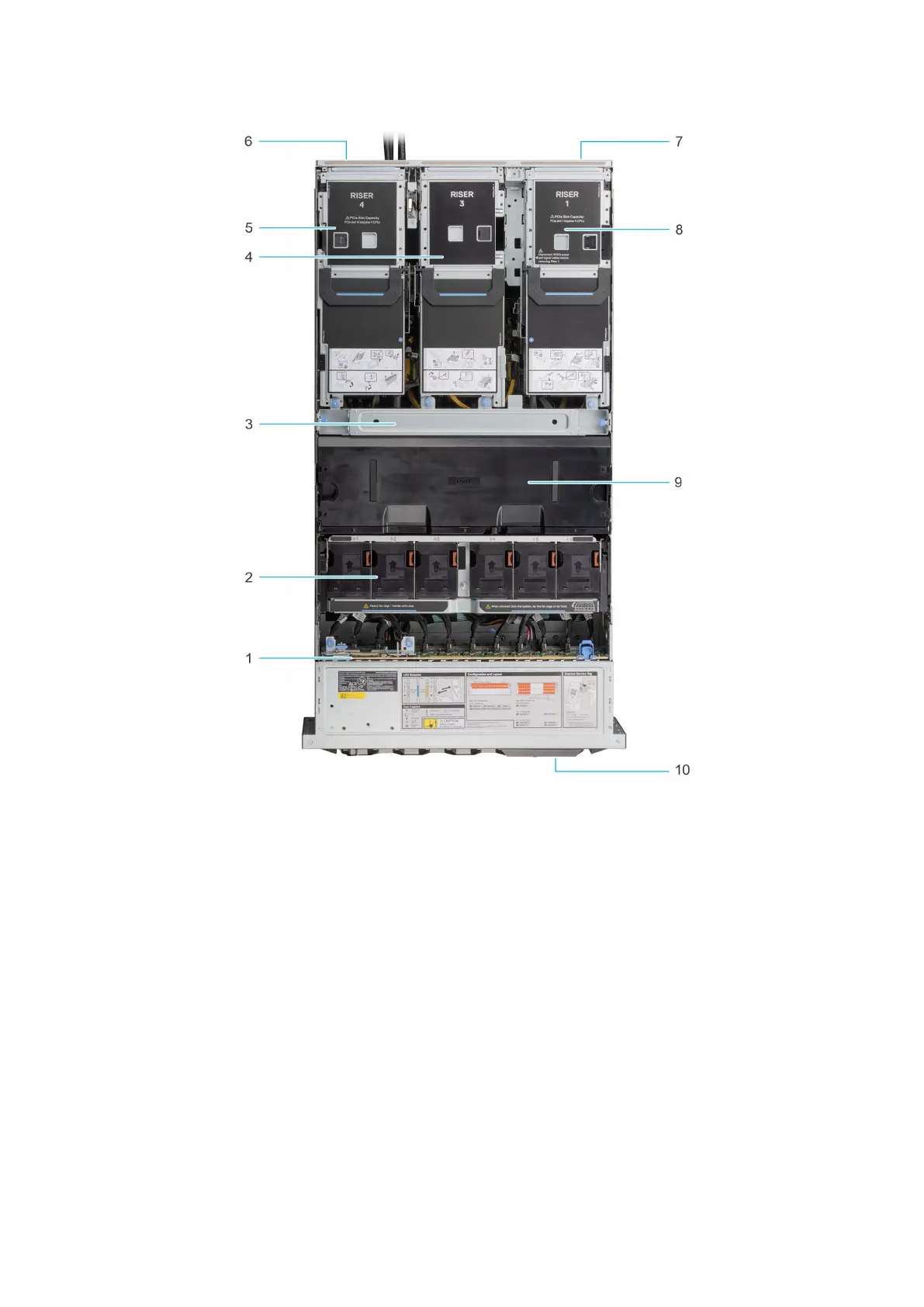

Figure 10. Inside the system with full length risers and GPU air shroud
1.
Backplane 2. Cooling fans
3. Support bar 4. Expansion riser 3
5. Expansion riser 4 6. Power supply units (PSU2 and PSU4)
7. Power supply units (PSU1 and PSU3) 8. Expansion riser 1
9. GPU air shroud top cover 10. Express Service Tag
Dell PowerEdge R960 system overview 17
