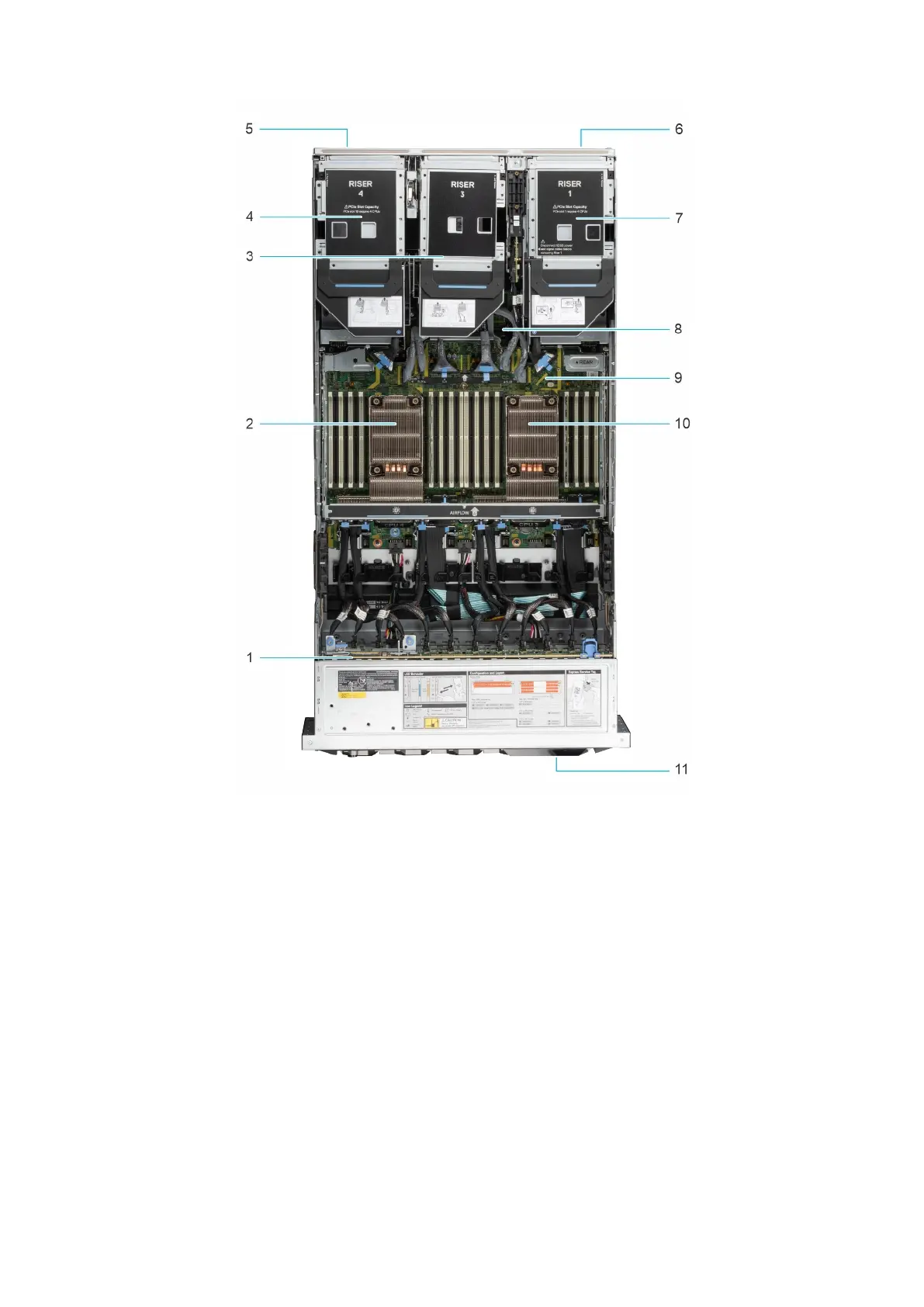

Figure 11. Inside the system with processor expansion module (PEM)
1.
Backplane 2. Processor 4
3. Expansion riser 3 4. Expansion riser 4
5. Power supply units (PSU2 and PSU4) 6. Power supply units (PSU1 and PSU3)
7. Expansion riser 1 8. System board
9. Processor expansion module (PEM) 10. Processor 3
11. Express Service Tag
