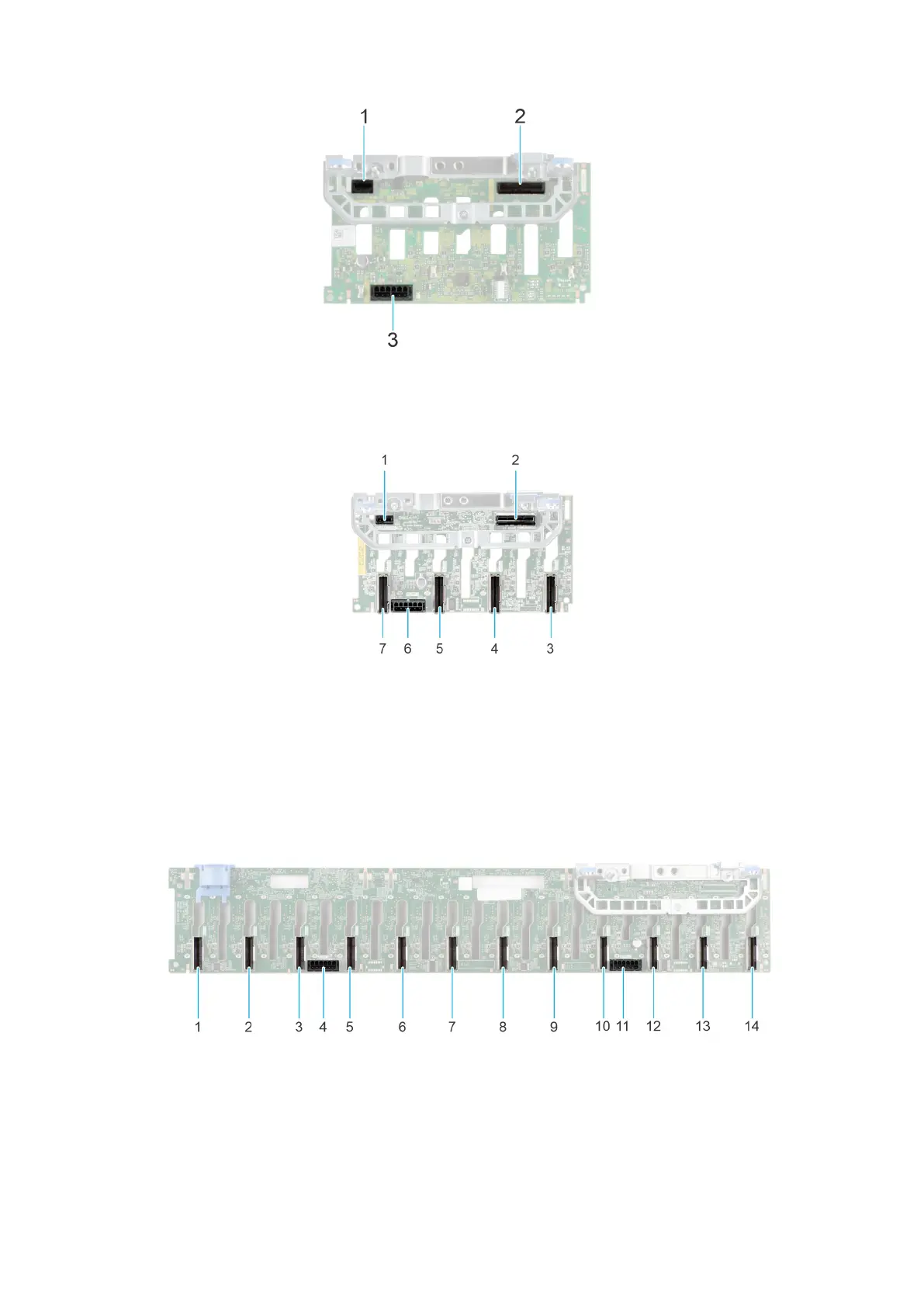

Figure 52. 8 x 2.5-inch NVMe drive backplane
1. BP_PWR_CTRL
2. BP_DST_SA1 (PERC to backplane)
3. BP_PWR_1 (backplane power and signal cable to system board)
Figure 53. 8 x 2.5-inch SAS or SATA drive backplane
1.
BP_PWR_CTRL 2. BP_DST_SA1 (PERC to backplane)
3. BP_DST_PA1 (PCIe/NVMe connector) 4. BP_ DST_PB1 (PCIe/NVMe connector)
5. BP_ DST_PA2 (PCIe/NVMe connector) 6. BP_PWR_1 (backplane power and signal cable to system
board)
7. BP_DST_PB2 (PCIe/NVMe connector)
Figure 54. 24 x 2.5-inch NVMe passive backplane
1.
BP_DST_PB6 (PCIe/NVMe connector) 2. BP_DST_PA6 (PCIe/NVMe connector)
3. BP_DST_PB5 (PCIe/NVMe connector) 4. BP_PWR_2
5. BP_DST_PA5 (PCIe/NVMe connector) 6. BP_DST_PB4 (PCIe/NVMe connector)
7. BP_DST_PA4 (PCIe/NVMe connector) 8. BP_DST_PB3 (PCIe/NVMe connector)
9. BP_DST_PA3 (PCIe/NVMe connector) 10. BP_DST_PB2 (PCIe/NVMe connector)
