Dell PowerEdge T360 - Page 100

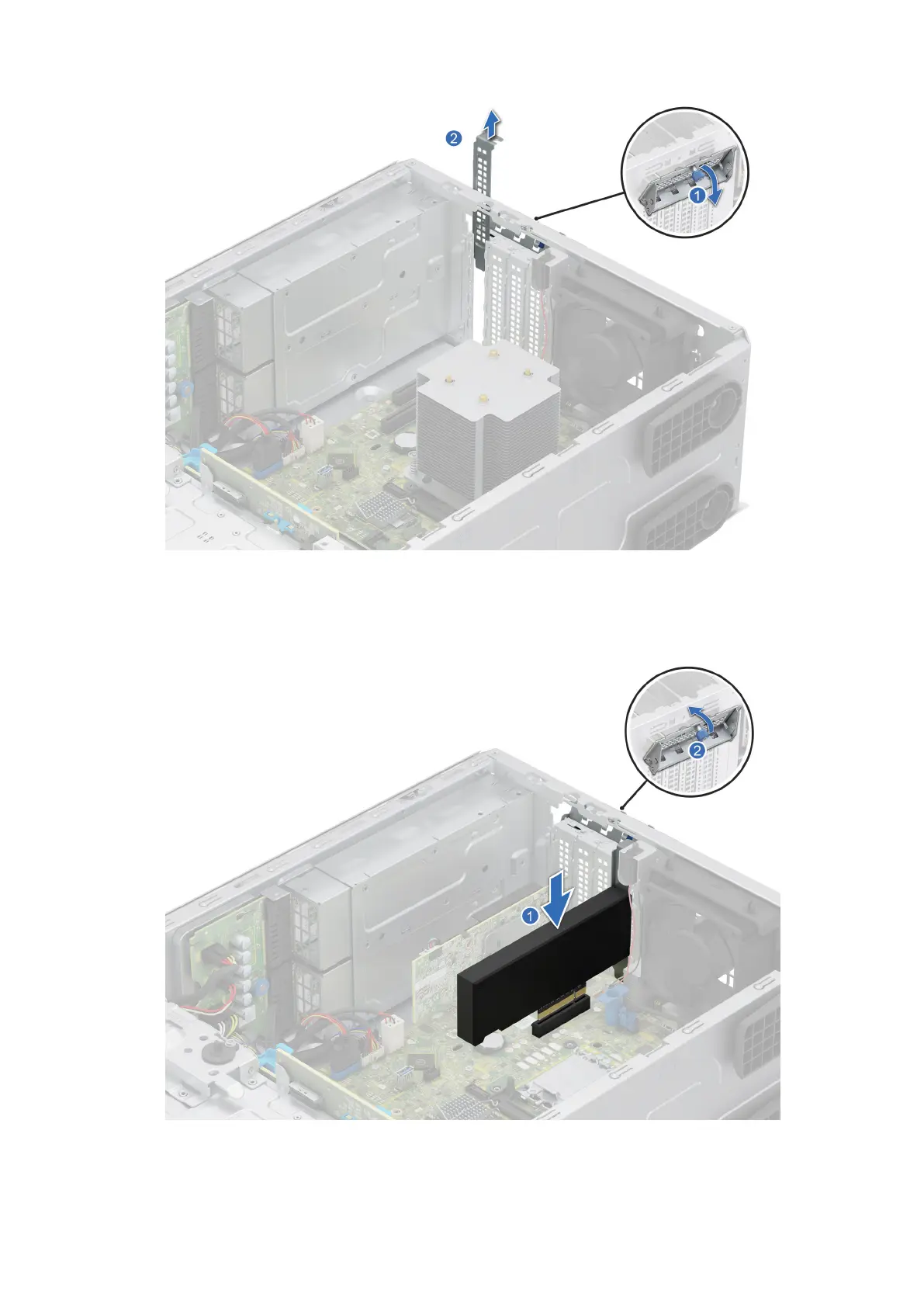

Figure 64. Removing the metal filler
3. Holding the GPU by the edges, align the card with the expansion card slot on the system board.
4. Insert the GPU firmly into the expansion card slot until the card is firmly seated.
Figure 65. Installing the GPU
100
Installing and removing system components
