Dell PowerEdge T360 - Installing the GPU

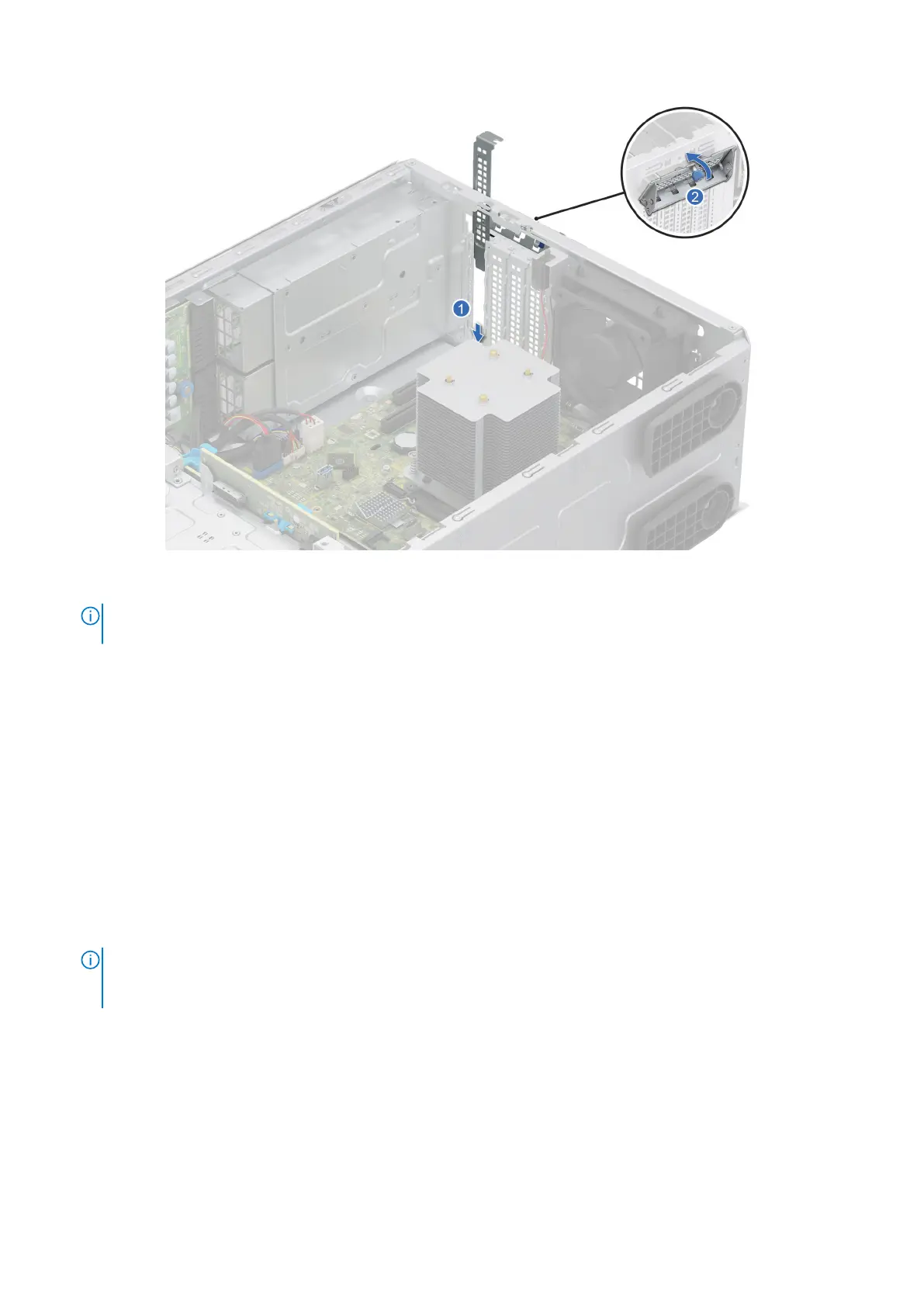

Figure 63. Installing the metal filler
NOTE:
Filler brackets must be installed in empty GPU slots to maintain FCC certification of the system. The brackets
also keep dust and dirt out of the system and aid in proper cooling and airflow inside the system.
Next steps
Replace the GPU.
Installing the GPU
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. If required, remove the air shroud.
Steps
1. Loosen the captive screw and tilt the metal bracket that holds the metal filler.
NOTE:
Store this bracket for future use. Filler brackets must be installed in empty GPU slots to maintain FCC
certification of the system. The brackets also keep dust and dirt out of the system and aid in proper cooling and
airflow inside the system.
2. Lift the metal filler out of the system.
Installing and removing system components
99
