Inside the system

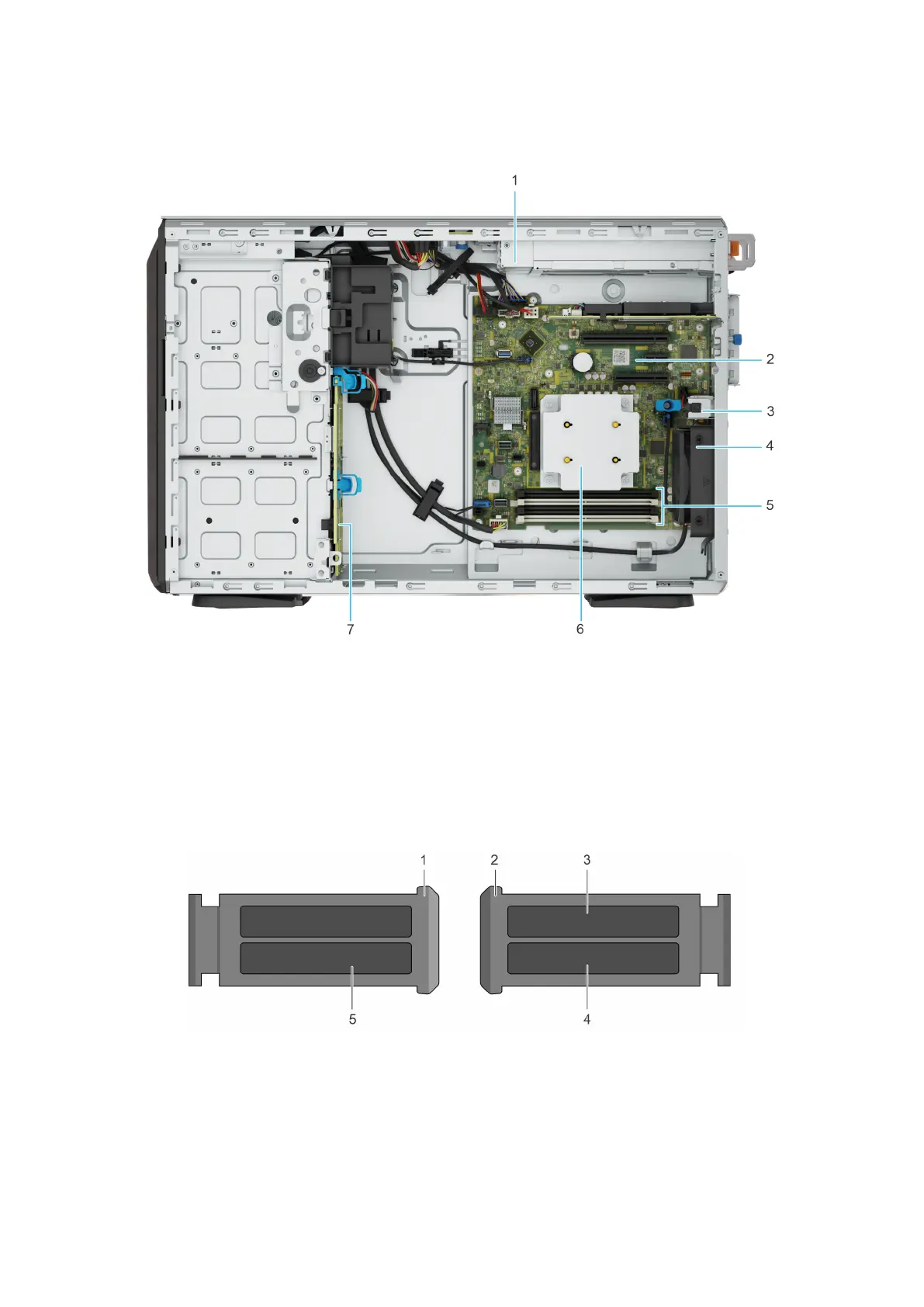

Figure 5. Inside view of the 8 x 3.5-inch configuration
1.
PSU 2. System board
3. Intrusion switch 4. Cooling fan
5. Memory module sockets 6. Heat sink
7. Backplane
Locating the Express Service Code and Service Tag
Figure 6. Locating the Express Service Code and Service tag
1. Express Service Tag (front view)
2. Express Service Tag (rear view)
3. OpenManage Mobile (OMM) label
4. iDRAC MAC address and iDRAC secure password label
5. Service Tag, Express Service Code, QRL label
