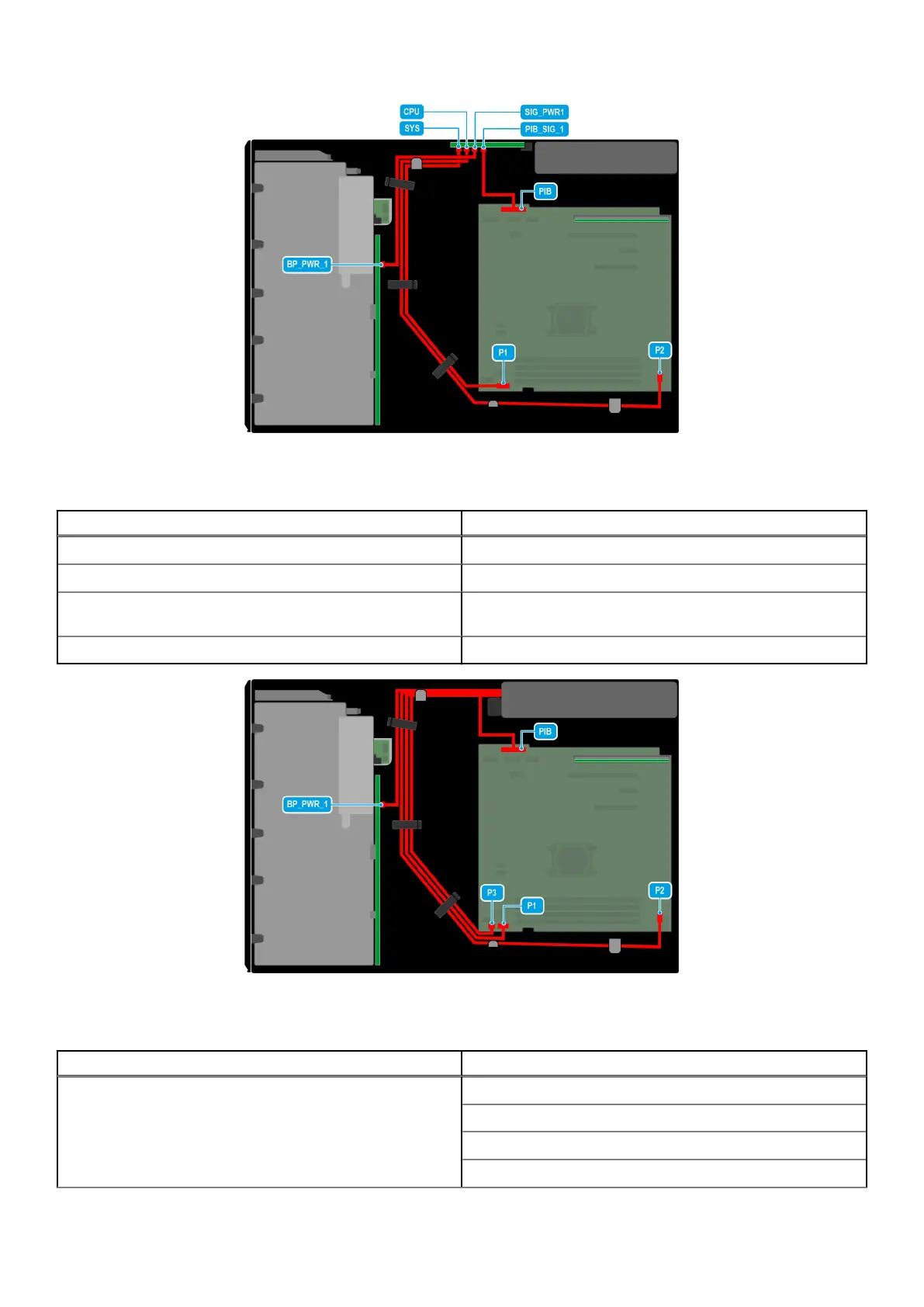

Figure 48. Cable routing - redundant PSU
Table 60. Connector descriptions for redundant PSU
From To
SYS (system power connector on power interposer board) P1 (system power connector on system board)
CPU (processor power connector on power interposer board) P2 (processor power connector on system board)
SIG_PWR_1 (backplane power connector on power interposer
board)
BP_PWR_1 (backplane power connector)
PIB_SIG_1 (power interposer board signal connector) PIB (Power interposer board connector on system board)
Figure 49. Cable routing - cabled PSU
Table 61.
Connector descriptions for cabled PSU
From To
Power cables from the PSU P1 (system power connector on system board)
P2 (processor power connector on system board)
P3 ( power event connector on system board)
BP_PWR_1 (backplane power connector)
