Table 2. Features available on the front view of Rear Accessed configuration (continued)
Item Ports, panels, and slots Icon Description
overall system health
LED (Chassis health and
system ID) bar. For
more information, see
the Status LED indicators
section.
2 Drives N/A Enables you to install up to 4
x 2.5-inch SAS/SATA/NVMe
SSD drives.
3 Express service tag N/A The Express service tag is
a slide-out label panel that
contains Service Tag, iDRAC
MAC address and LOM 1 MAC
address.
4 Power button
Indicates if the system is
powered on or off. Press
the power button to manually
power on or off the system.
5 USB 2.0 port
This port is USB 2.0-
compliant.
6 iDRAC Direct (Micro USB)
The iDRAC Direct (Micro-AB
USB) port enables you to
access the iDRAC direct
Micro-AB USB features.
For more information, see
the Integrated Dell Remote
Access Controller User's
Guide at www.dell.com/
poweredgemanuals.
System configurations - rear view for PowerEdge
XR5610

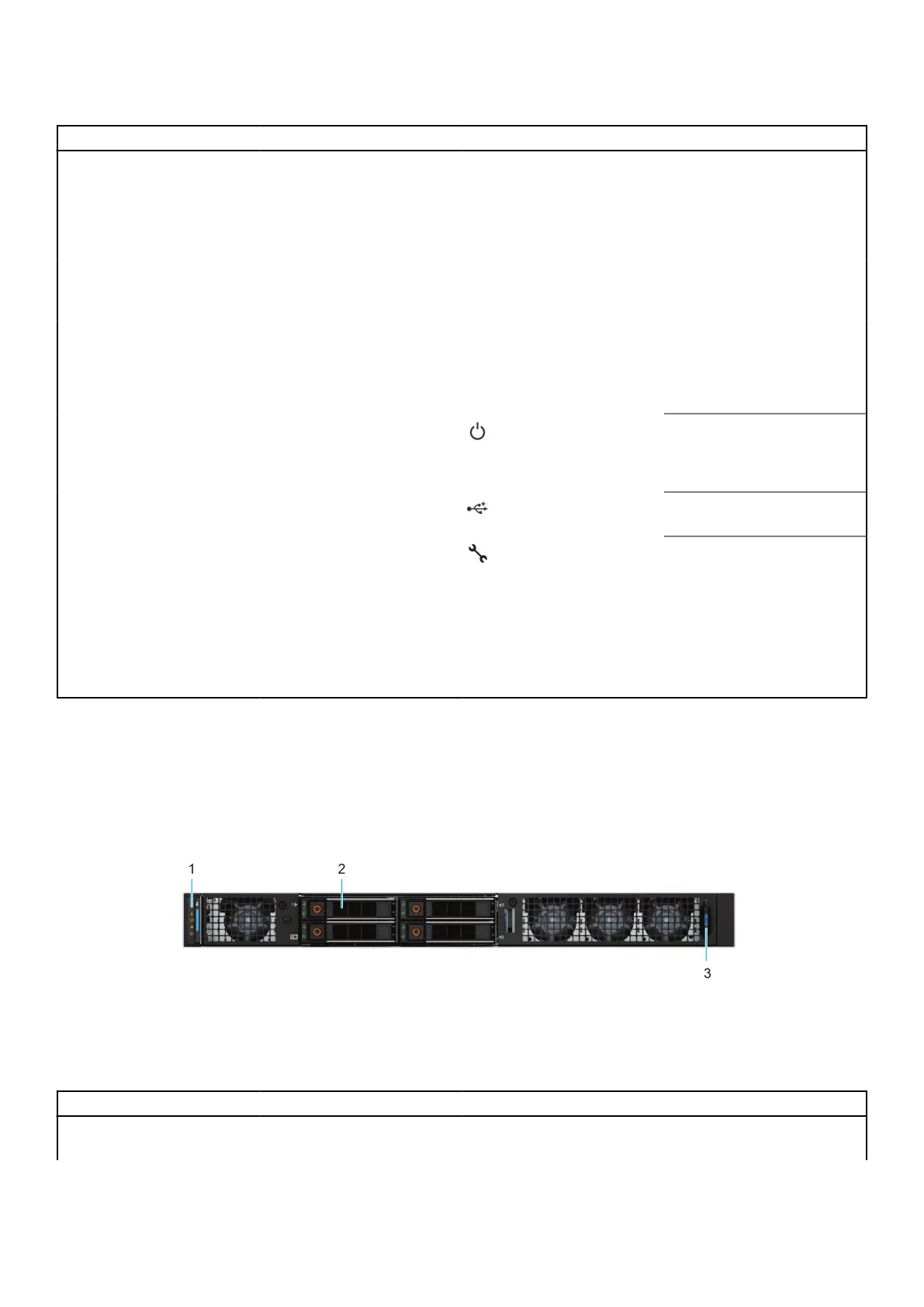

Figure 5. Rear view of the Front Accessed configuration with no bezel
Table 3. Features available on the rear view of Front Accessed configuration
Item Ports, panels, and slots Icon Description
1 Status LED control panel N/A Contains the system health,
system ID, status LED.
12 PowerEdge XR5610 system configurations and features
