Control panel
This is a service technician replaceable part only.
Removing the status LED control panel for Rear Accessed
configuration
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the air shrouds.
4. Remove the expansion card riser 1.
NOTE: If necessary, please remove the backplane signal and power cables.
Steps
1. Using the Phillips 2 screwdriver, remove the screws that secure the left ear handle.

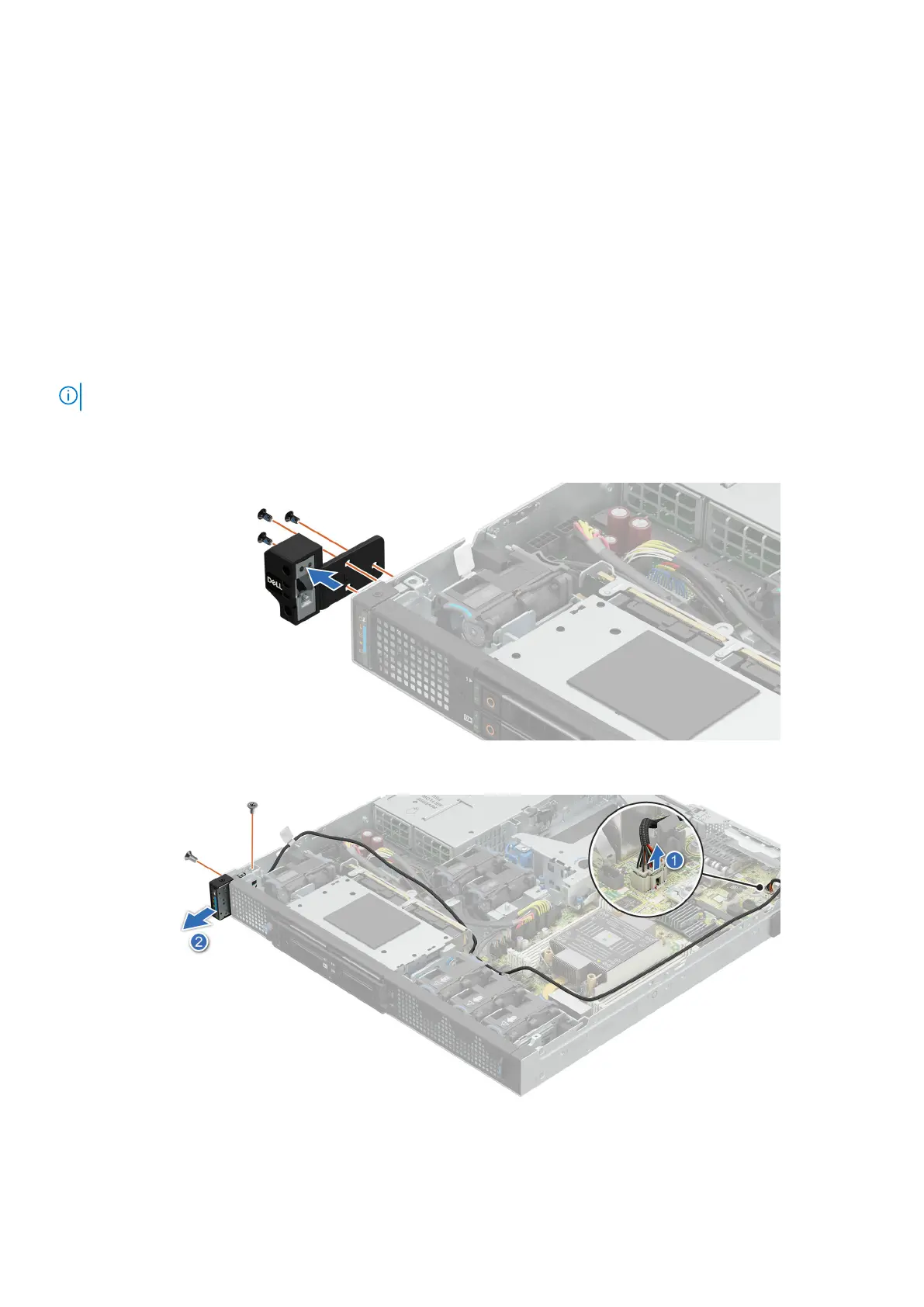

Figure 130. Removing the left ear handle of the Rear Accessed configuration
Figure 131. Removing the status LED control panel for Rear Accessed configuration
2. Disconnect the status LED control panel cable from the system board connector.
156
Installing and removing system components
