NOTE: Observe the routing of the cable as you remove it from the system.
3. Using the Torx 8 screwdriver, remove the screws that secure the right control panel assembly.
4. Hold the power button control panel assembly and remove the control panel along with the cable from the system.
NOTE: The numbers on the image do not depict the exact steps. The numbers are for representation of sequence.

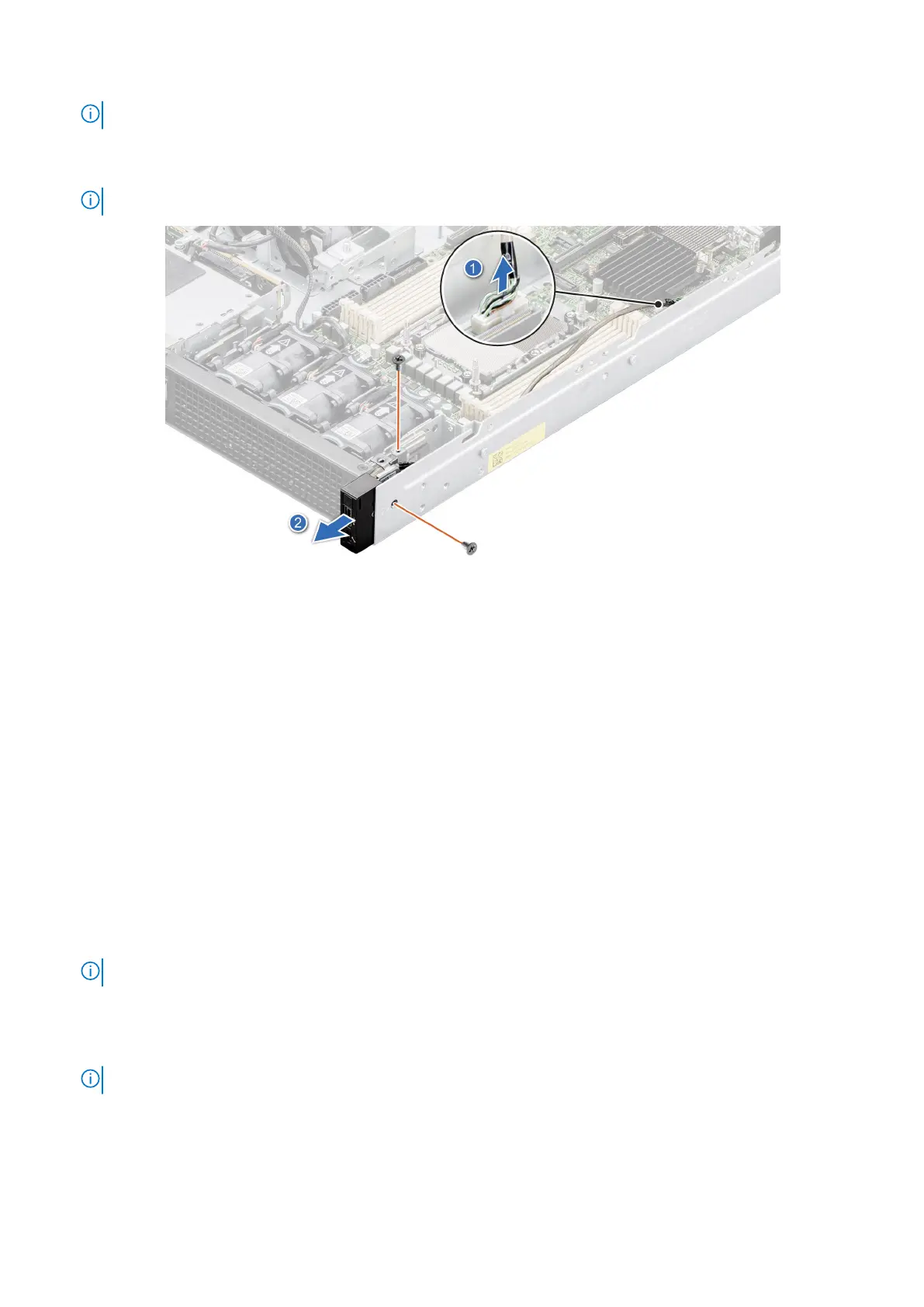

Figure 137. Removing the power button control panel for Rear Accessed configuration
Next steps
Replace the power button control panel.
Installing the power button control panel for Rear Accessed
configuration
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the air shrouds.
4. Remove the expansion card riser 1.
Steps
1. Route the power button control panel cable through the side wall of the system.
NOTE: Route the cable properly to prevent the cable from being pinched or crimped.
2. Align and insert the right control panel in the slot on the system.
3. Connect the power button control panel cable to the connector on the system board.
4. Using the Torx 8 screwdriver, tighten the screws that secure the right control panel to the system.
NOTE: The numbers on the image do not depict the exact steps. The numbers are for representation of sequence.
Installing and removing system components 161
