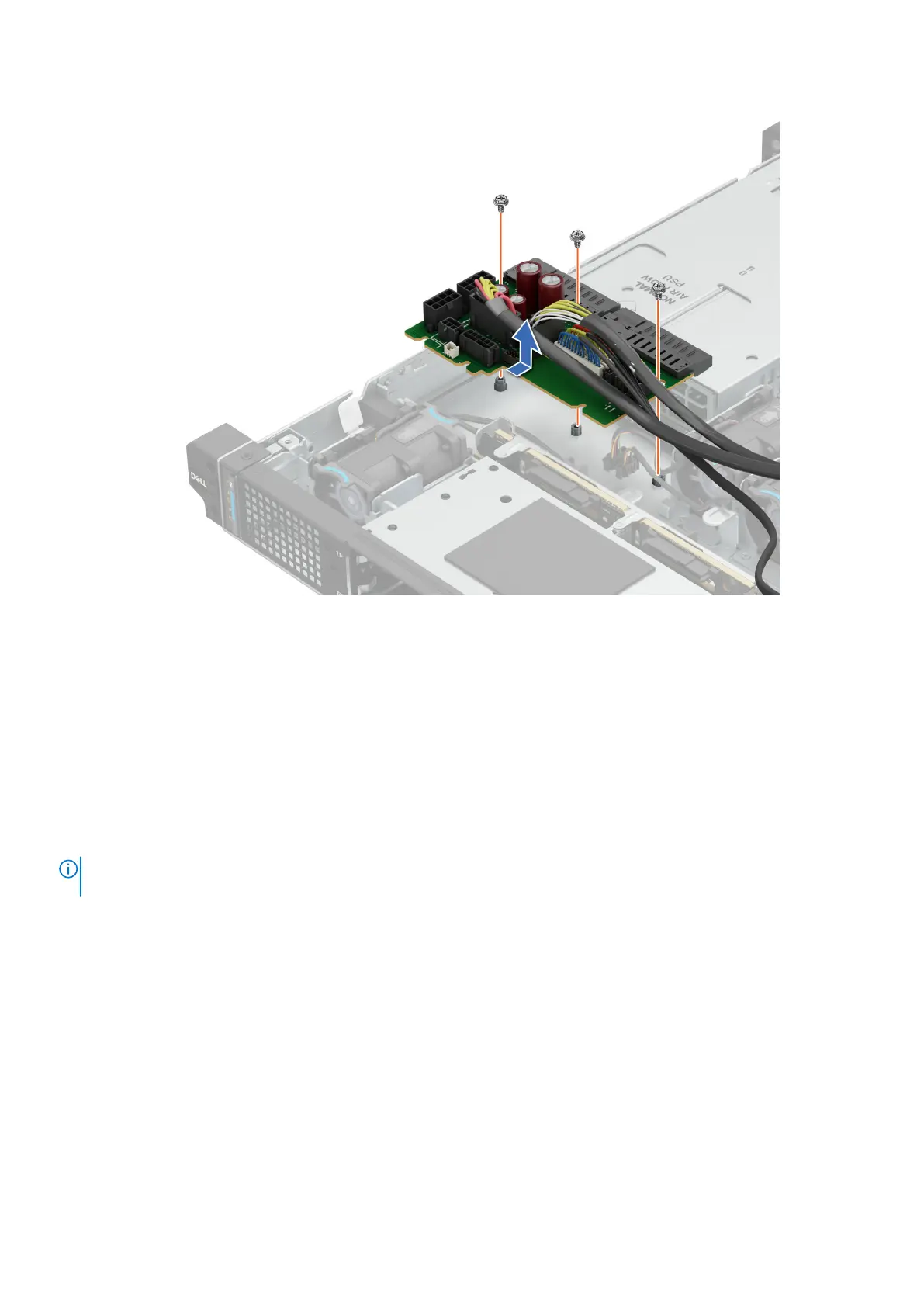

Figure 118. Removing the power interposer board
Next steps
Replace the power interposer board.
Installing the power interposer board (PIB)
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
NOTE:
The procedure to install the power interposer board (PIB) is the same for Rear Accessed and Front Accessed
configurations.
Steps
1. Align the slots on the PIB with the hook on the system and slide it into place.
2. Using Phillips 2 screwdriver, tighten the screws to secure the PIB to the system.
