Dell SCv3000 Deployment Guide

SCv3000 and SCv3020 Storage System With Fibre Channel Front-End
Connectivity
A storage system with Fibre Channel front-end connectivity can communicate with the following components of a Storage Center system.

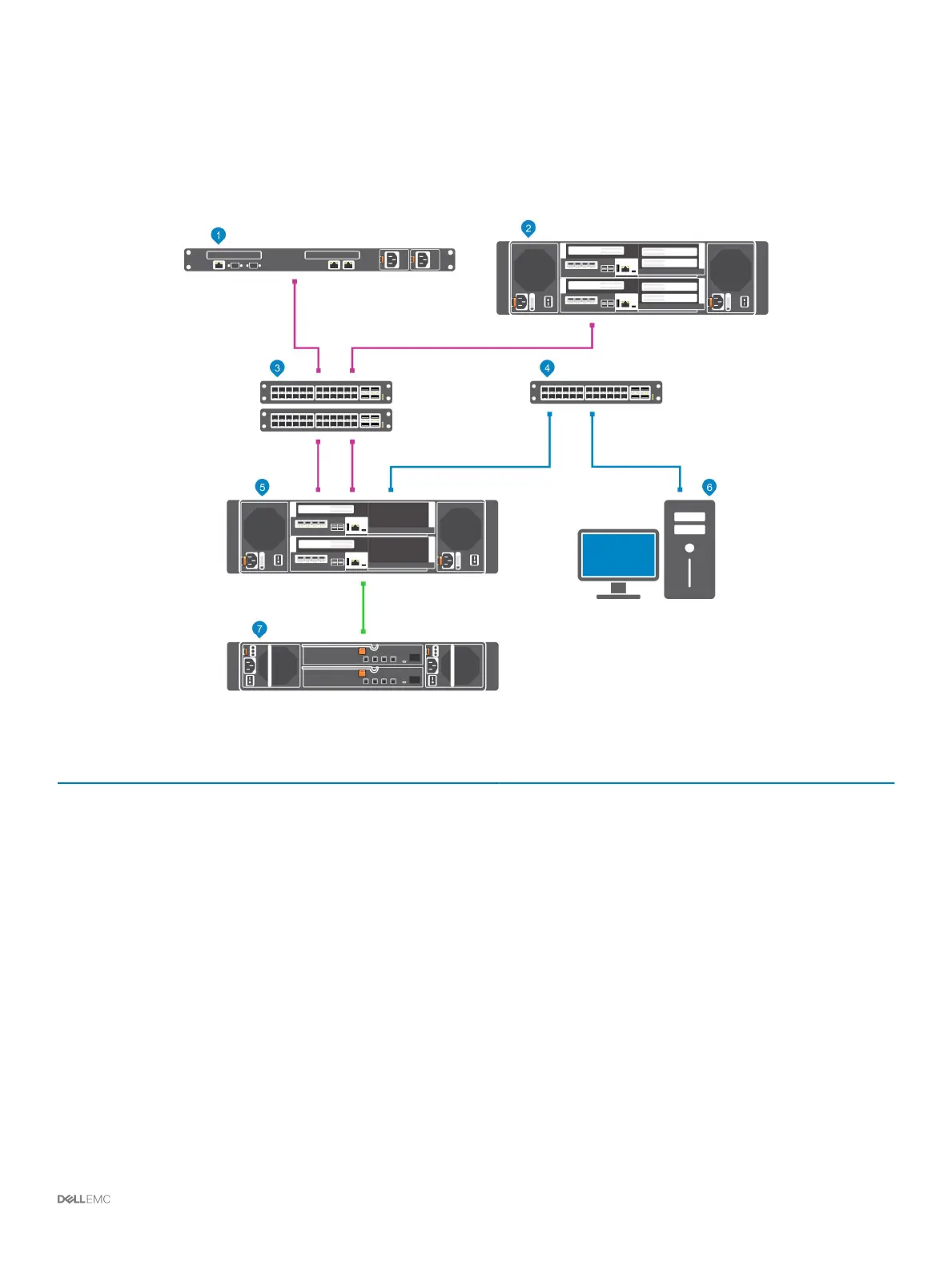

Figure 1. Storage System With Fibre Channel Front-End Connectivity
Item
Description Speed Communication Type
1 Server with Fibre Channel host bus adapters (HBAs) 8 Gbps or 16 Gbps Front End
2 Remote Storage Center connected via Fibre Channel for
replication
8 Gbps or 16 Gbps Front End
3 Fibre Channel switch (A pair of Fibre Channel switches are
recommended for optimal redundancy and connectivity)
8 Gbps or 16 Gbps Front End
4 Ethernet switch for the management network 1 Gbps System Administration
5 SCv3000 and SCv3020 with FC front-end connectivity 8 Gbps or 16 Gbps Front End
6 Storage Manager (Installed on a computer connected to the
storage system through the Ethernet switch)
Up to 1 Gbps System Administration
7 SCv300 and SCv320 expansion enclosures
12 Gbps per channel
Back End
About the SCv3000 and SCv3020 Storage System 11

Dell SCv3000 Specifications

General

HDD speed	10000 RPM
Storage drive size	3.5 \
Storage drive capacity	900 GB
Storage drive interface	Serial Attached SCSI (SAS)
Storage drives installed	Yes
Installed storage drive type	HDD
Total installed storage capacity	6.3 TB
Maximum supported storage capacity	- TB
Number of storage drives installed	7
Number of storage drives supported	16
USB connectivity	-
Chassis type	Rack (3U)
Product color	Black, Grey
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power supply unit (PSU) capacity	1485 W
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 80 %
Dell E-Value Code	SCv3000FC

Weight and Dimensions

Depth	785 mm
Width	445 mm
Height	133.3 mm
