SCv3000 and SCv3020 Storage System With iSCSI Front-End
Connectivity
A storage system with iSCSI front-end connectivity can communicate with the following components of a Storage Center system.

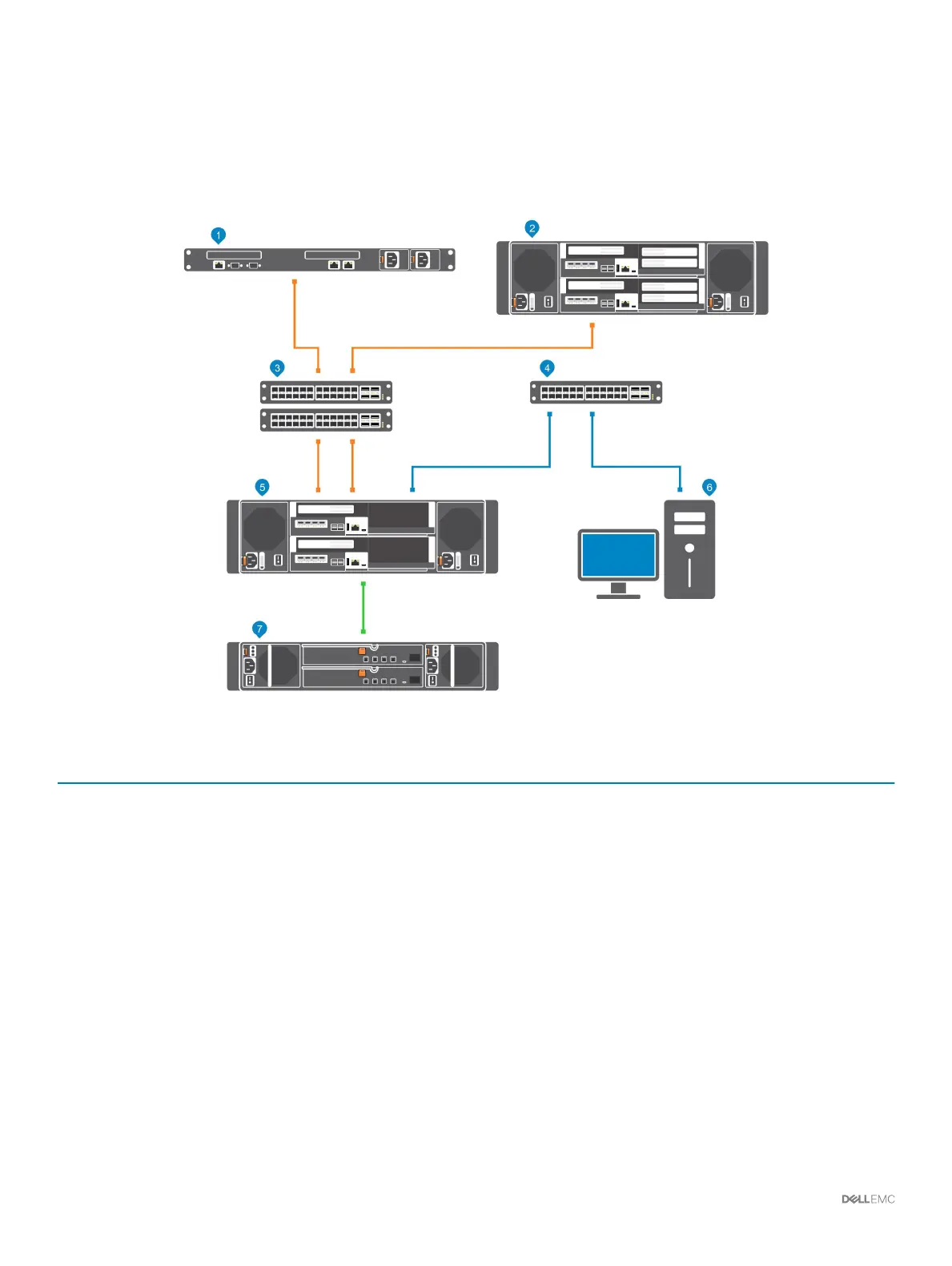

Figure 2. Storage System With iSCSI Front-End Connectivity
Item
Description Speed Communication Type
1 Server with Ethernet (iSCSI) ports or iSCSI host bus adapters
(HBAs)
1 GbE or 10 GbE Front End
2 Remote Storage Center connected via iSCSI for replication 1 GbE or 10 GbE Front End
3 Ethernet switch (A pair of Ethernet switches is recommended
for optimal redundancy and connectivity)
1 GbE or 10 GbE Front End
4 Ethernet switch for the management network 1 Gbps System Administration
5 SCv3000 and SCv3020 with iSCSI front-end connectivity 1 GbE or 10 GbE Front End
6 Storage Manager (Installed on a computer connected to the
storage system through the Ethernet switch)
Up to 1 Gbps System Administration
7 SCv300 and SCv320 expansion enclosures
12 Gbps per channel
Back End
12 About the SCv3000 and SCv3020 Storage System

Dell SCv3000 Specifications

General

HDD speed	10000 RPM
Storage drive size	3.5 \
Storage drive capacity	900 GB
Storage drive interface	Serial Attached SCSI (SAS)
Storage drives installed	Yes
Installed storage drive type	HDD
Total installed storage capacity	6.3 TB
Maximum supported storage capacity	- TB
Number of storage drives installed	7
Number of storage drives supported	16
USB connectivity	-
Chassis type	Rack (3U)
Product color	Black, Grey
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power supply unit (PSU) capacity	1485 W
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 80 %
Dell E-Value Code	SCv3000FC

Weight and Dimensions

Depth	785 mm
Width	445 mm
Height	133.3 mm
