Dell SCv3000 Deployment Guide

SCv3000 and SCv3020 Storage System With Front-End SAS Connectivity
The SCv3000 and SCv3020 storage system with front-end SAS connectivity can communicate with the following components of a
Storage Center system.

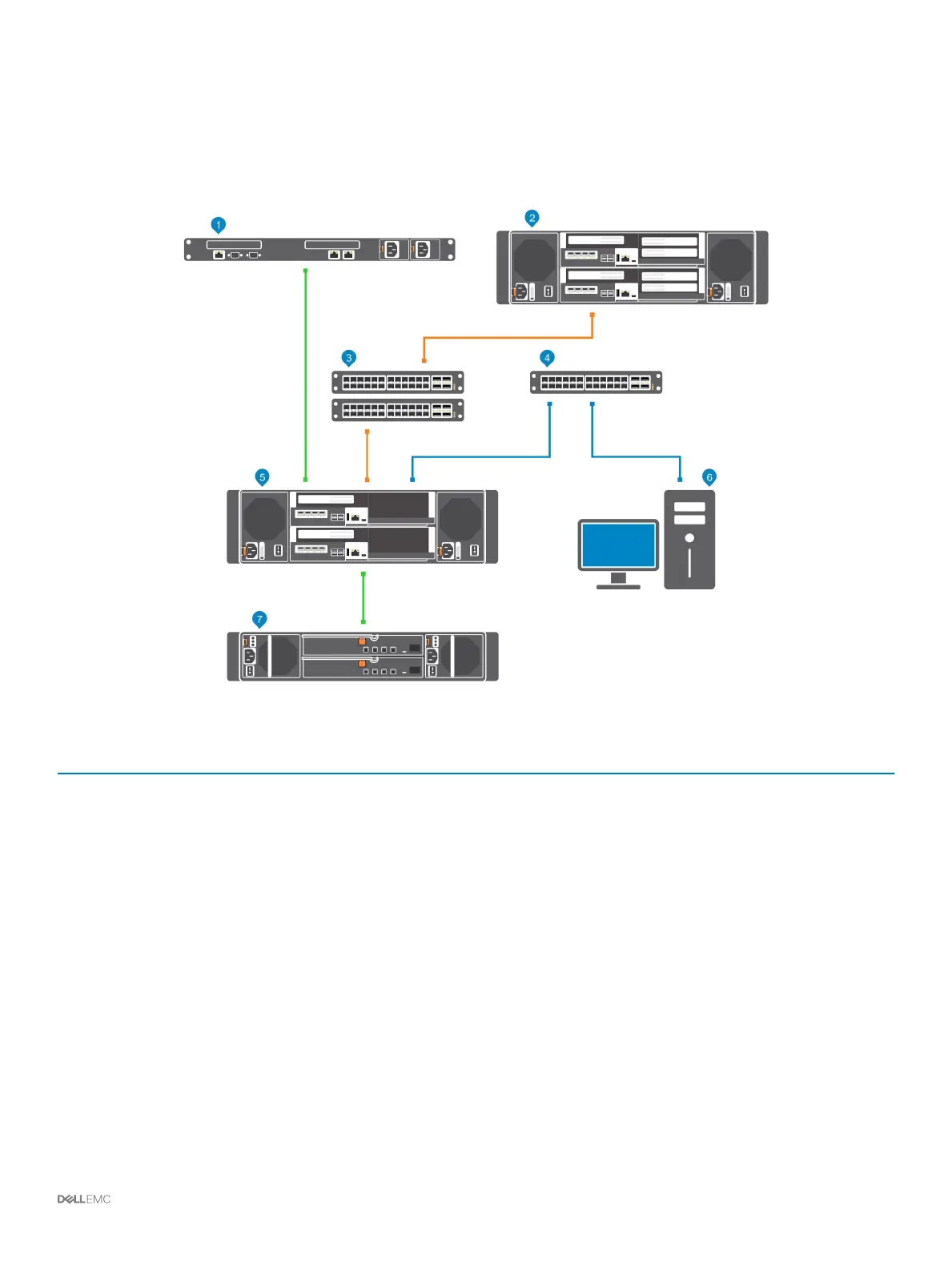

Figure 3. Storage System With Front-End SAS Connectivity
Item
Description Speed Communication Type
1 Server with SAS host bus adapters (HBAs) 12 Gbps per channel Front End
2 Remote Storage Center connected via iSCSI for replication 1 GbE or 10 GbE Front End
3 Ethernet switch (A pair of Ethernet switches is
recommended for optimal redundancy and connectivity)
1 GbE or 10 GbE Front End
4 Ethernet switch for the management network Up to 1 GbE System Administration
5 SCv3000 and SCv3020 with front-end SAS connectivity 12 Gbps per channel Front End
6 Storage Manager (Installed on a computer connected to
the storage system through the Ethernet switch)
Up to 1 Gbps System Administration
7 SCv300 and SCv320 expansion enclosures 12 Gbps per channel Back End
About the SCv3000 and SCv3020 Storage System 13

Dell SCv3000 Specifications

General

HDD speed	10000 RPM
Storage drive size	3.5 \
Storage drive capacity	900 GB
Storage drive interface	Serial Attached SCSI (SAS)
Storage drives installed	Yes
Installed storage drive type	HDD
Total installed storage capacity	6.3 TB
Maximum supported storage capacity	- TB
Number of storage drives installed	7
Number of storage drives supported	16
USB connectivity	-
Chassis type	Rack (3U)
Product color	Black, Grey
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power supply unit (PSU) capacity	1485 W
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 80 %
Dell E-Value Code	SCv3000FC

Weight and Dimensions

Depth	785 mm
Width	445 mm
Height	133.3 mm
