Dell SCv3000 Deployment Guide

Using SFP+ Transceiver Modules
You can connect to the front-end port of a storage controller using a direct-attached SFP+ cable or an SFP+ transceiver module. An
SCv3000 and SCv3020 storage system with 16 Gb Fibre Channel or 10 GbE iSCSI storage controllers uses short-range small-form-factor
pluggable (SFP+) transceiver modules.

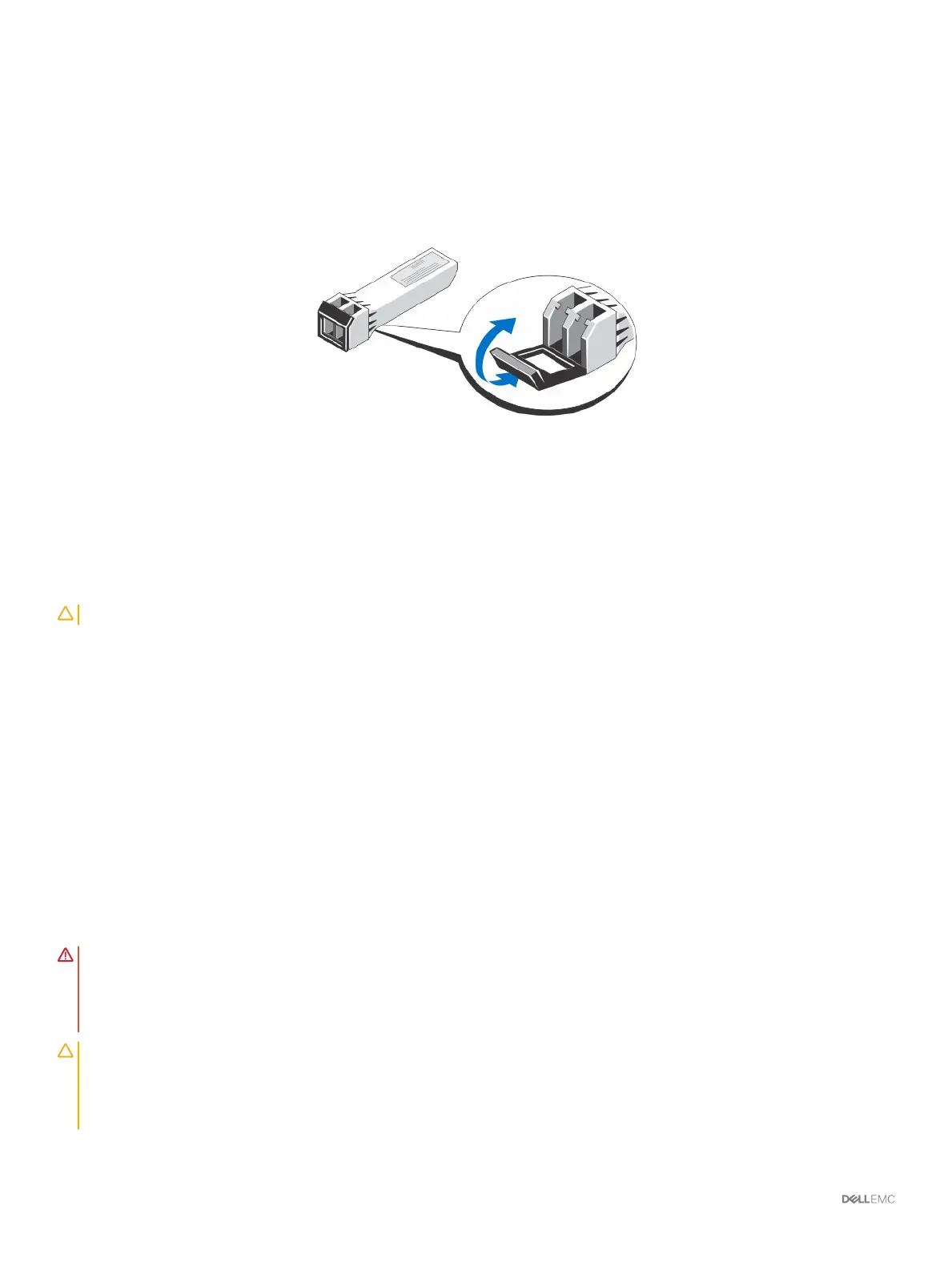

Figure 4. SFP+ Transceiver Module With a Bail Clasp Latch
The SFP+ transceiver modules are installed into the front-end ports of a storage controller.
Guidelines for Using SFP+ Transceiver Modules
Before installing SFP+ transceiver modules and ber-optic cables, read the following guidelines.
CAUTION
: When handling static-sensitive devices, take precautions to avoid damaging the product from static electricity.
• Use only Dell-supported SFP+ transceiver modules with the Storage Center. Other generic SFP+ transceiver modules are not
supported and might not work with the Storage Center.
• The SFP+ transceiver module housing has an integral guide key that is designed to prevent you from inserting the transceiver module
incorrectly.
• Use minimal pressure when inserting an SFP+ transceiver module into a Fibre Channel port. Forcing the SFP+ transceiver module into a
port could damage the transceiver module or the port.
• The SFP+ transceiver module must be installed into a port before you connect the ber-optic cable.
• The ber-optic cable must be removed from the SFP+ transceiver module before you remove the transceiver module from the port.
Install an SFP+ Transceiver Module
Use the following procedure to install an SFP+ transceiver module into a storage controller.
About this task
Read the following cautions and information before installing an SFP+ transceiver module.
WARNING
: To reduce the risk of injury from laser radiation or damage to the equipment, take the following precautions:
• Do not open any panels, operate controls, make adjustments, or perform procedures to a laser device other than those specied in
this document.
• Do not stare into the laser beam.
CAUTION: Transceiver modules can be damaged by electrostatic discharge (ESD). To prevent ESD damage to the transceiver
module, take the following precautions:
• Wear an antistatic discharge strap while handling transceiver modules.
• Place transceiver modules in antistatic packing material when transporting or storing them.
14 About the SCv3000 and SCv3020 Storage System

Dell SCv3000 Specifications

General

HDD speed	10000 RPM
Storage drive size	3.5 \
Storage drive capacity	900 GB
Storage drive interface	Serial Attached SCSI (SAS)
Storage drives installed	Yes
Installed storage drive type	HDD
Total installed storage capacity	6.3 TB
Maximum supported storage capacity	- TB
Number of storage drives installed	7
Number of storage drives supported	16
USB connectivity	-
Chassis type	Rack (3U)
Product color	Black, Grey
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power supply unit (PSU) capacity	1485 W
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 80 %
Dell E-Value Code	SCv3000FC

Weight and Dimensions

Depth	785 mm
Width	445 mm
Height	133.3 mm
