Dell SCv3000 Deployment Guide

Steps
1 Position the transceiver module so that the key is oriented correctly to the port in the storage controller.

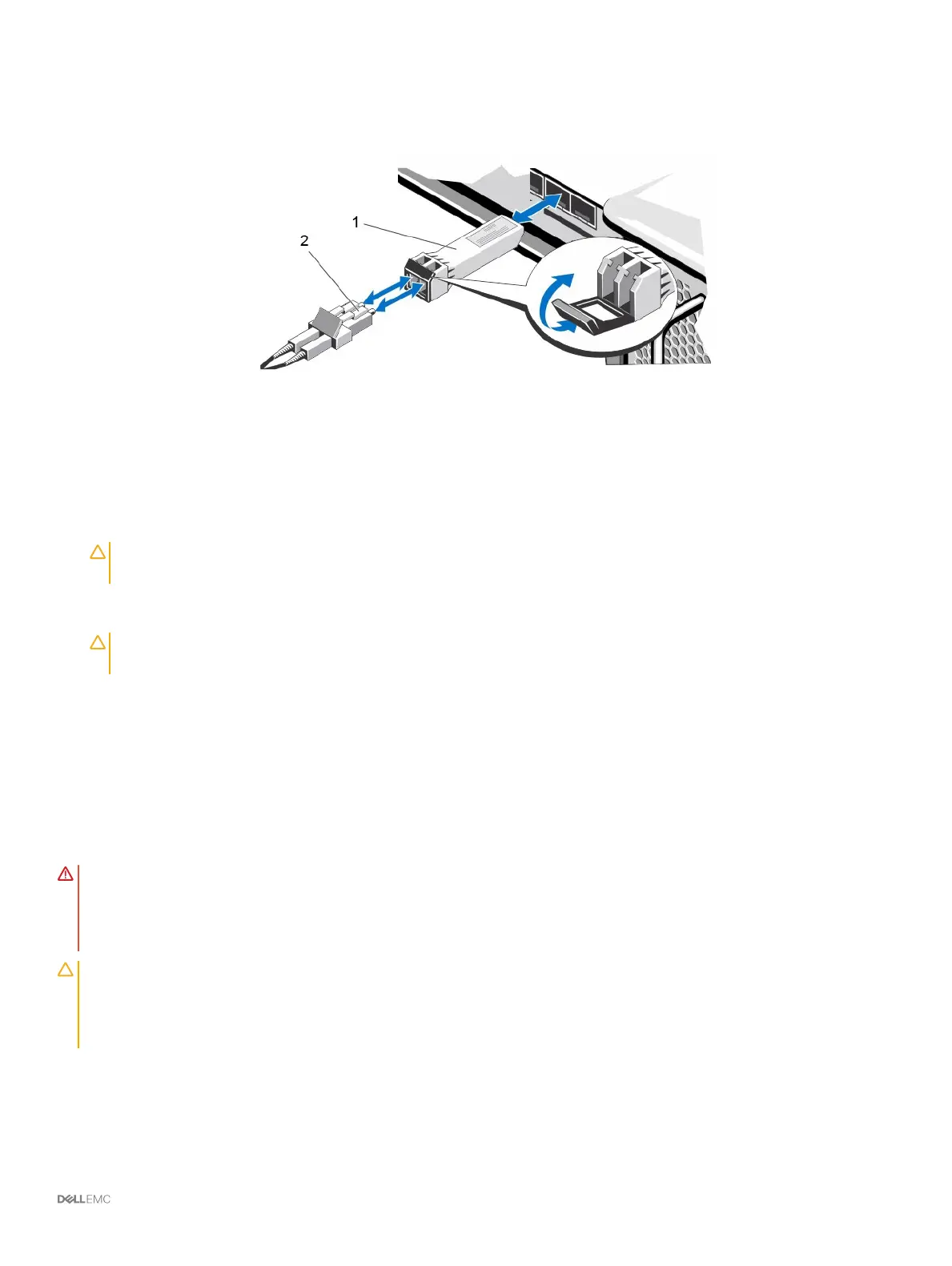

Figure 5. Install the SFP+ Transceiver Module
1 SFP+ transceiver module 2 Fiber-optic cable connector
2 Insert the transceiver module into the port until it is rmly seated and the latching mechanism clicks.
The transceiver modules are keyed so that they can be inserted only with the correct orientation. If a transceiver module does not
slide in easily, ensure that it is correctly oriented.
CAUTION
: To reduce the risk of damage to the equipment, do not use excessive force when inserting the transceiver
module.
3 Position the ber-optic cable so that the key (the ridge on one side of the cable connector) is aligned with the slot in the transceiver
module.
CAUTION
: Touching the end of a ber-optic cable damages the cable. Whenever a ber-optic cable is not connected,
replace the protective covers on the ends of the cable.
4 Insert the ber-optic cable into the transceiver module until the latching mechanism clicks.
Remove an SFP+ Transceiver Module
Complete the following steps to remove an SFP+ transceiver module from a storage controller.
Prerequisite
Use failover testing to make sure that the connection between host servers and the Storage Center remains up if the port is disconnected.
About this task
Read the following cautions and information before beginning the removal and replacement procedures.
WARNING
: To reduce the risk of injury from laser radiation or damage to the equipment, take the following precautions:
• Do not open any panels, operate controls, make adjustments, or perform procedures to a laser device other than those specied in
this document.
• Do not stare into the laser beam.
CAUTION: Transceiver modules can be damaged by electrostatic discharge (ESD). To prevent ESD damage to the transceiver
module, take the following precautions:
• Wear an antistatic discharge strap while handling modules.
• Place modules in antistatic packing material when transporting or storing them.
Steps
1 Remove the ber-optic cable that is inserted into the transceiver.
a Make sure the ber-optic cable is labeled before removing it.
b Press the release clip on the bottom of the cable connector to remove the ber-optic cable from the transceiver.
About the SCv3000 and SCv3020 Storage System
15

Dell SCv3000 Specifications

General

HDD speed	10000 RPM
Storage drive size	3.5 \
Storage drive capacity	900 GB
Storage drive interface	Serial Attached SCSI (SAS)
Storage drives installed	Yes
Installed storage drive type	HDD
Total installed storage capacity	6.3 TB
Maximum supported storage capacity	- TB
Number of storage drives installed	7
Number of storage drives supported	16
USB connectivity	-
Chassis type	Rack (3U)
Product color	Black, Grey
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power supply unit (PSU) capacity	1485 W
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 80 %
Dell E-Value Code	SCv3000FC

Weight and Dimensions

Depth	785 mm
Width	445 mm
Height	133.3 mm
