SCv360 Expansion Enclosure Front-Panel Features and Indicators
The SCv360 front panel shows the expansion enclosure status and power supply status.

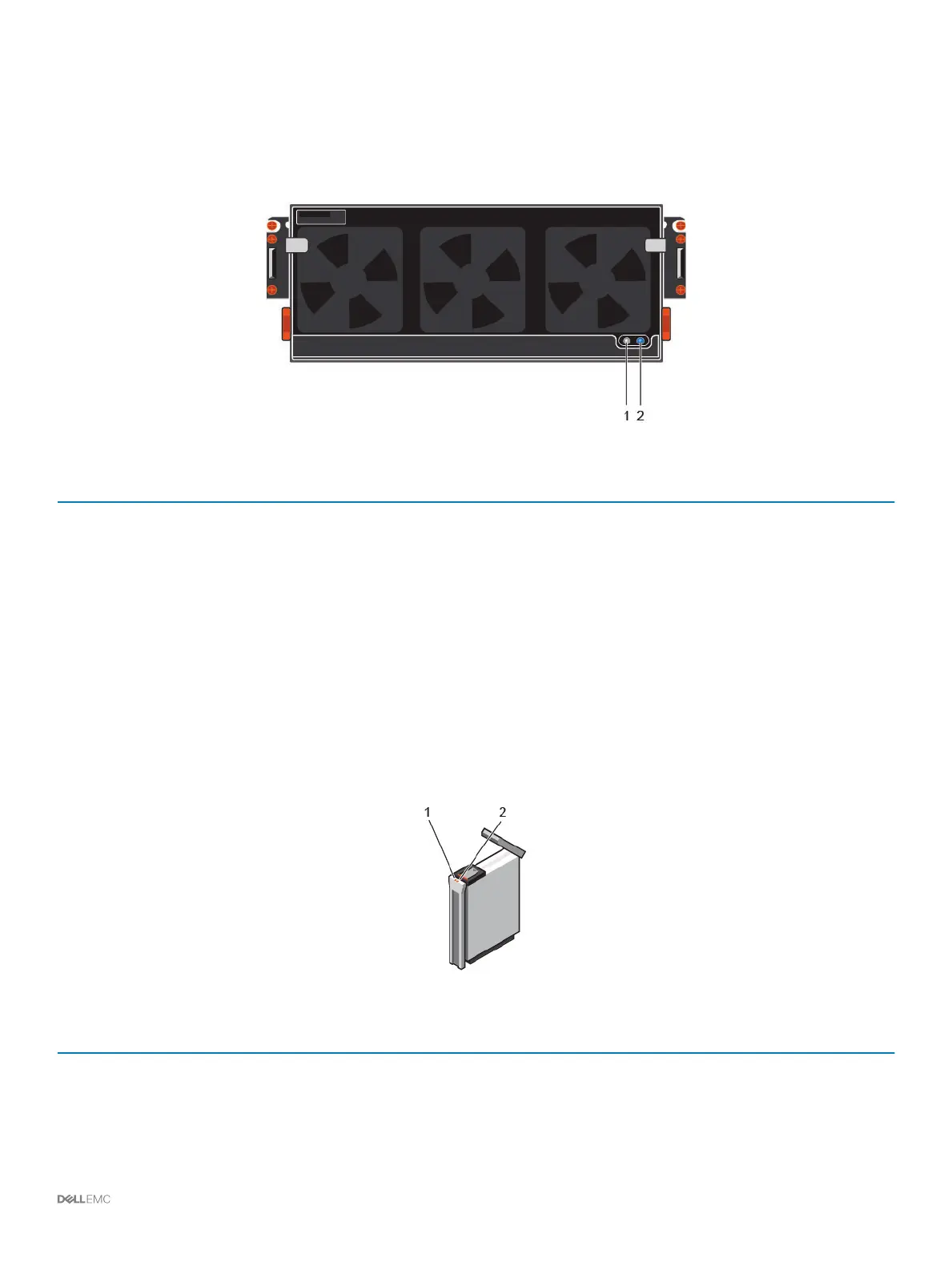

Figure 21. SCv360 Front-Panel Features and Indicators
Item Name Description
1 Power LED The power LED lights when at least one power supply unit is supplying power to the expansion
enclosure.
2 Expansion enclosure status
LED
The expansion enclosure status LED indicates when the system is being identied or when the
expansion enclosure is in the fault state.
• O during normal operation.
• Blinks blue when a host server is identifying the expansion enclosure or when the system
identication button is pressed.
• Remains solid blue when the expansion enclosure is in the fault state.
SCv360 Expansion Enclosure Drives
Dell Enterprise Plus drives are the only drives that can be installed in SCv360 expansion enclosures. If a non-Dell Enterprise Plus drive is
installed, the Storage Center prevents the drive from being managed.
The drives in an SCv360 expansion enclosure are installed horizontally.
Figure 22. SCv360 Drive Indicators
Item
Name Indicator Code
1 Drive activity indicator
• Blinking blue – Drive activity
• Steady blue – Drive is detected and has no faults
2 Drive status indicator
• O – Normal operation
About the SCv3000 and SCv3020 Storage System 27

Dell SCv3000 Specifications

General

HDD speed	10000 RPM
Storage drive size	3.5 \
Storage drive capacity	900 GB
Storage drive interface	Serial Attached SCSI (SAS)
Storage drives installed	Yes
Installed storage drive type	HDD
Total installed storage capacity	6.3 TB
Maximum supported storage capacity	- TB
Number of storage drives installed	7
Number of storage drives supported	16
USB connectivity	-
Chassis type	Rack (3U)
Product color	Black, Grey
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power supply unit (PSU) capacity	1485 W
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 80 %
Dell E-Value Code	SCv3000FC

Weight and Dimensions

Depth	785 mm
Width	445 mm
Height	133.3 mm
