Dell SCv3000 Deployment Guide

SCv300 and SCv320 Expansion Enclosure EMM Features and Indicators
The SCv300 and SCv320 expansion enclosure includes two enclosure management modules (EMMs) in two interface slots.

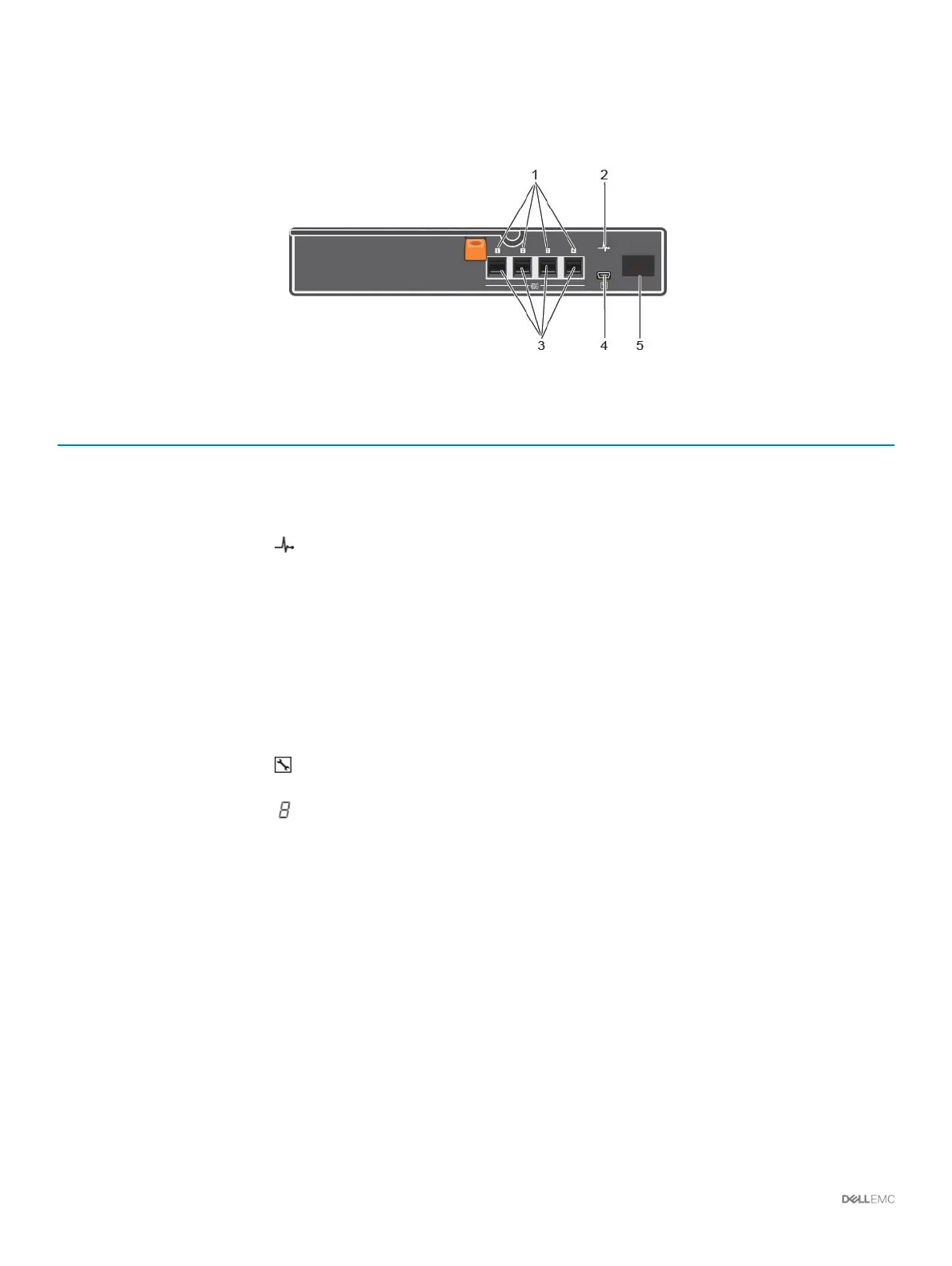

Figure 20. SCv300 and SCv320 Expansion Enclosure EMM Features and Indicators
Item Name Icon Description
1 SAS port status (1–
4)
• Green – All the links to the port are connected
• Amber – One or more links are not connected
• O – Expansion enclosure is not connected
2 EMM status
indicator
• On steady green – Normal operation
• Amber – Expansion enclosure did not boot or is not properly congured
• Blinking green – Automatic update in progress
• Blinking amber two times per sequence – Expansion enclosure is unable to
communicate with other expansion enclosures
• Blinking amber (four times per sequence) – Firmware update failed
• Blinking amber (ve times per sequence) – Firmware versions are dierent
between the two EMMs
3 SAS ports 1–4
(Input or Output)
Provides SAS connections for cabling the storage controller to the next expansion
enclosure in the chain. (single port, redundant, and multichain conguration).
4 USB Mini-B (serial
debug port)
Not for customer use
5 Unit ID display Displays the expansion enclosure ID
26 About the SCv3000 and SCv3020 Storage System

Dell SCv3000 Specifications

General

HDD speed	10000 RPM
Storage drive size	3.5 \
Storage drive capacity	900 GB
Storage drive interface	Serial Attached SCSI (SAS)
Storage drives installed	Yes
Installed storage drive type	HDD
Total installed storage capacity	6.3 TB
Maximum supported storage capacity	- TB
Number of storage drives installed	7
Number of storage drives supported	16
USB connectivity	-
Chassis type	Rack (3U)
Product color	Black, Grey
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power supply unit (PSU) capacity	1485 W
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 80 %
Dell E-Value Code	SCv3000FC

Weight and Dimensions

Depth	785 mm
Width	445 mm
Height	133.3 mm
