Chapter 7 Servo Parameters ASDA-B2
7-36 Revision September 2013
The functions of parameters P1-34, P1-35 and P1-36 are each individual. When
P1-36 is set to 0 (Disabled), the settings of P1-34, P1-35 are still effective. It indicates
that the parameters P1-34 and P1-35 will not become disabled even when P1-36 is
disabled.
Please note:
1. When the source of speed command is analog command, the maximum setting
value of P1-36 is set to 0, the acceleration and deceleration function will be
disabled.

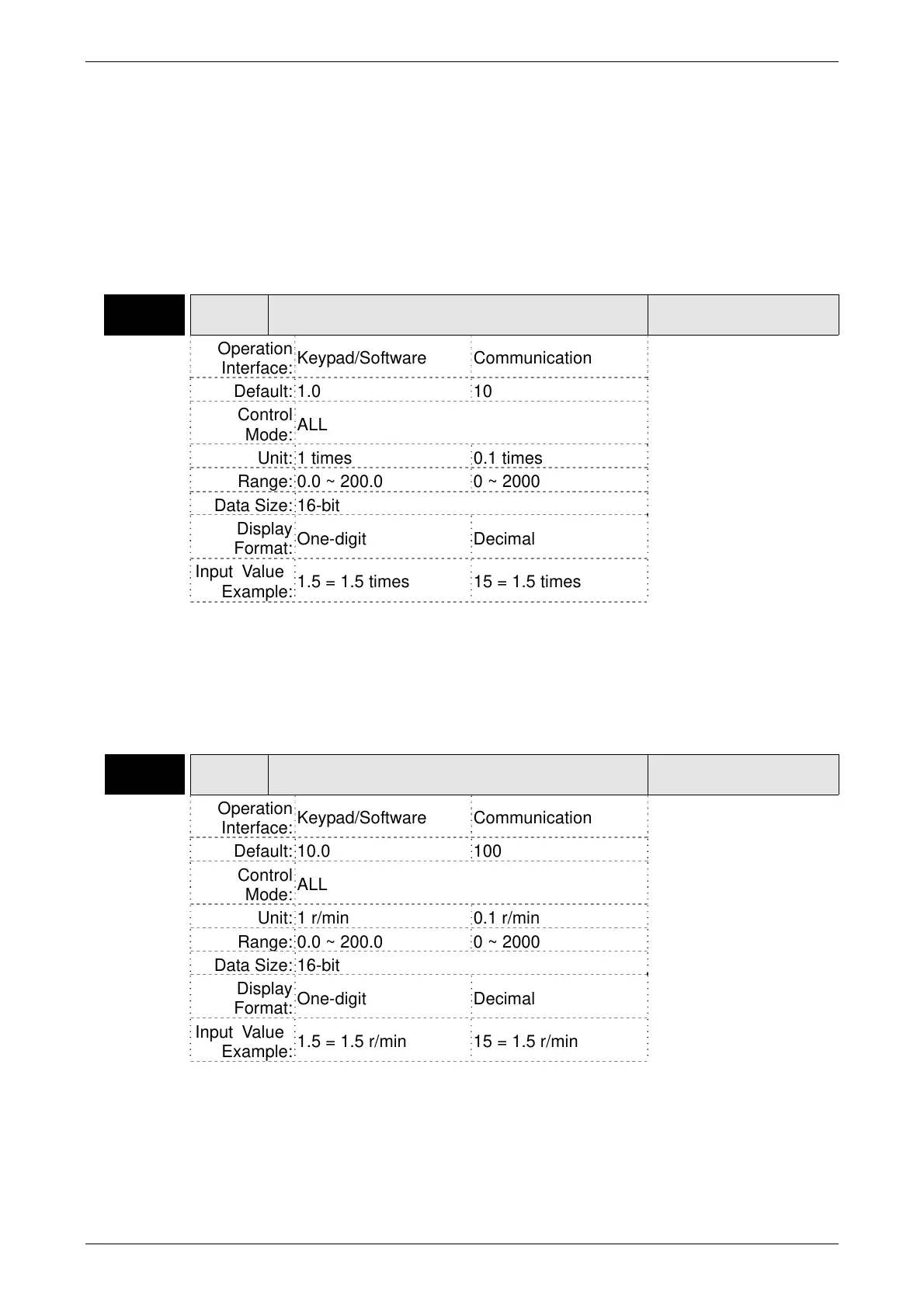

P1-37 GDR Ratio of Load Inertia to Servo Motor Inertia
Address: 014AH
014BH
Operation
Interface:
Keypad/Software Communication
Related Section: N/A
Default: 1.0 10
Control
Mode:
ALL
Unit: 1 times 0.1 times
Range: 0.0 ~ 200.0 0 ~ 2000
Data Size: 16-bit
Display
Format:
One-digit Decimal
Input Value
Example:
1.5 = 1.5 times 15 = 1.5 times
Settings:
Ratio of load inertia to servo motor inertia (for Rotation Motor): (J_load
/J_motor)
J_load: Total equivalent moment of inertia of external mechanical load
J_motor: Moment of inertia of servo motor
P1-38 ZSPD
Zero Speed Range Setting
Address: 014CH
014DH
Operation
Interface:
Keypad/Software Communication
Related Section:
Table 7.B
Default: 10.0 100
Control
Mode:
ALL
Unit: 1 r/min 0.1 r/min
Range: 0.0 ~ 200.0 0 ~ 2000
Data Size: 16-bit
Display
Format:
One-digit Decimal
Input Value
Example:
1.5 = 1.5 r/min 15 = 1.5 r/min
Settings:
This parameter is used to set output range of zero speed signal (ZSPD) and
determine when zero speed signal (ZSPD) becomes activated. ZSPD is activated
when the drive senses the motor is equal to or below the Zero Speed Range setting
as defined in parameter P1-38.
For Example, at default ZSPD will be activated when the drive detects the motor
