Delta Electronics ASDA-B2 series User Manual

ASDA-B2 Chapter 7 Servo Parameters
Revision September 2013 7-69

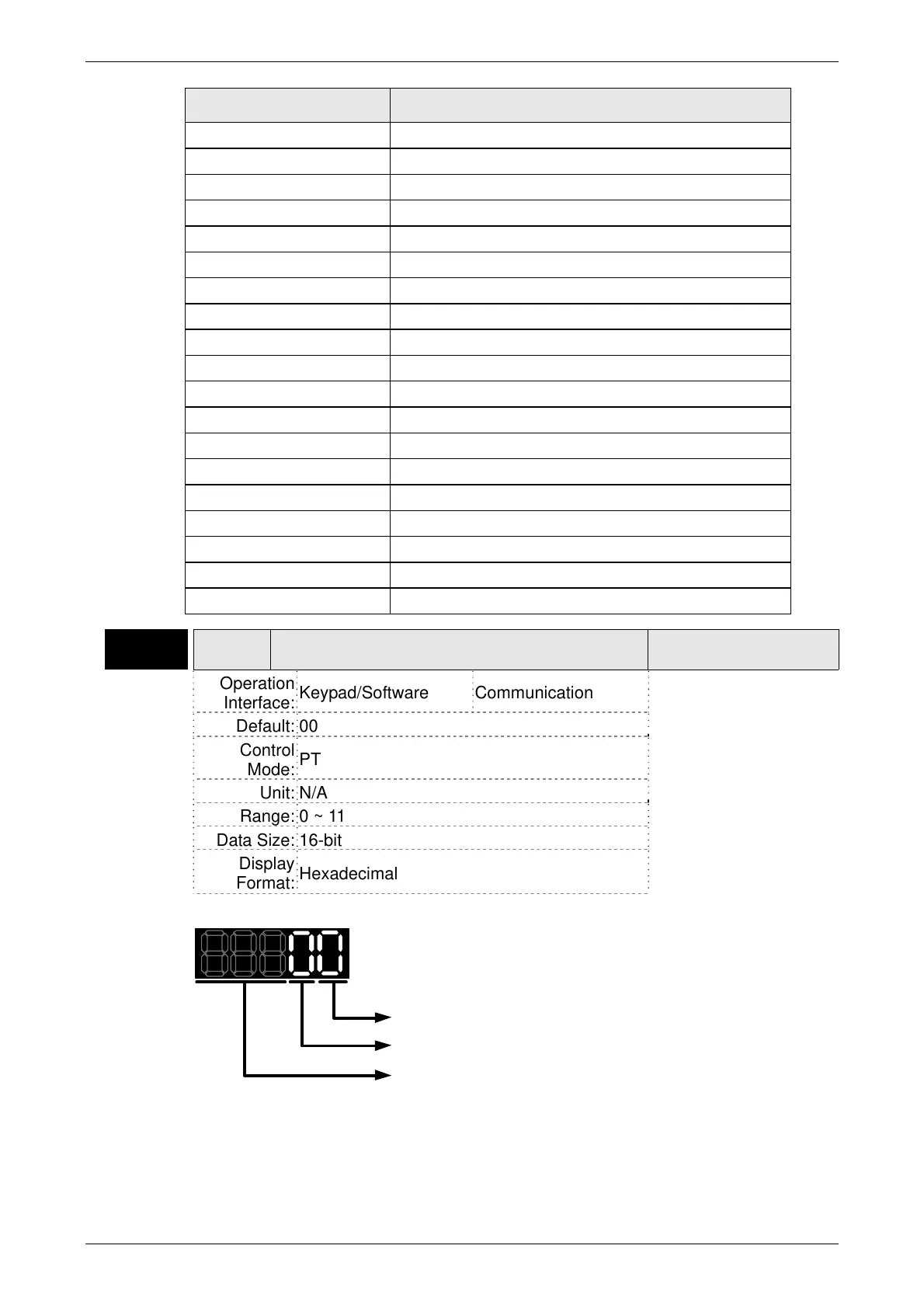

Setting Value of P2-49 Cutoff Frequency of Speed Loop Feedback (Hz)
0D 900
0E 850
0F 800
10 750
11 700
12 650
13 600
14 550
15 500
16 450
17 400
18 350
19 300
1A 250
1B 200
1C 175
1D 150
1E 125
1F 100
P2-50
DCLR Pulse Deviation Clear Mode
Address: 0264H
0265H
Operation
Interface:
Keypad/Software Communication
Related Section: N/A
Default: 00
Control
Mode:
PT
Unit: N/A
Range: 0 ~ 11
Data Size: 16-bit
Display
Format:
Hexadecimal
Settings:
Not used
Triggering Method
Function Selection
For digital input function (DI function), please refer to Table 7.A.
This pulse deviation clear function is enabled when a digital input is set to pulse clear
function (CCLR mode, DI (Digital Input) setting value is 0x04). When this input is
triggered, the position accumulated pulse number will be clear to 0. (available in PT
mode only)
