Delta Electronics ASDA-B2 series User Manual

ASDA-B2 Chapter 7 Servo Parameters
Revision September 2013 7-97

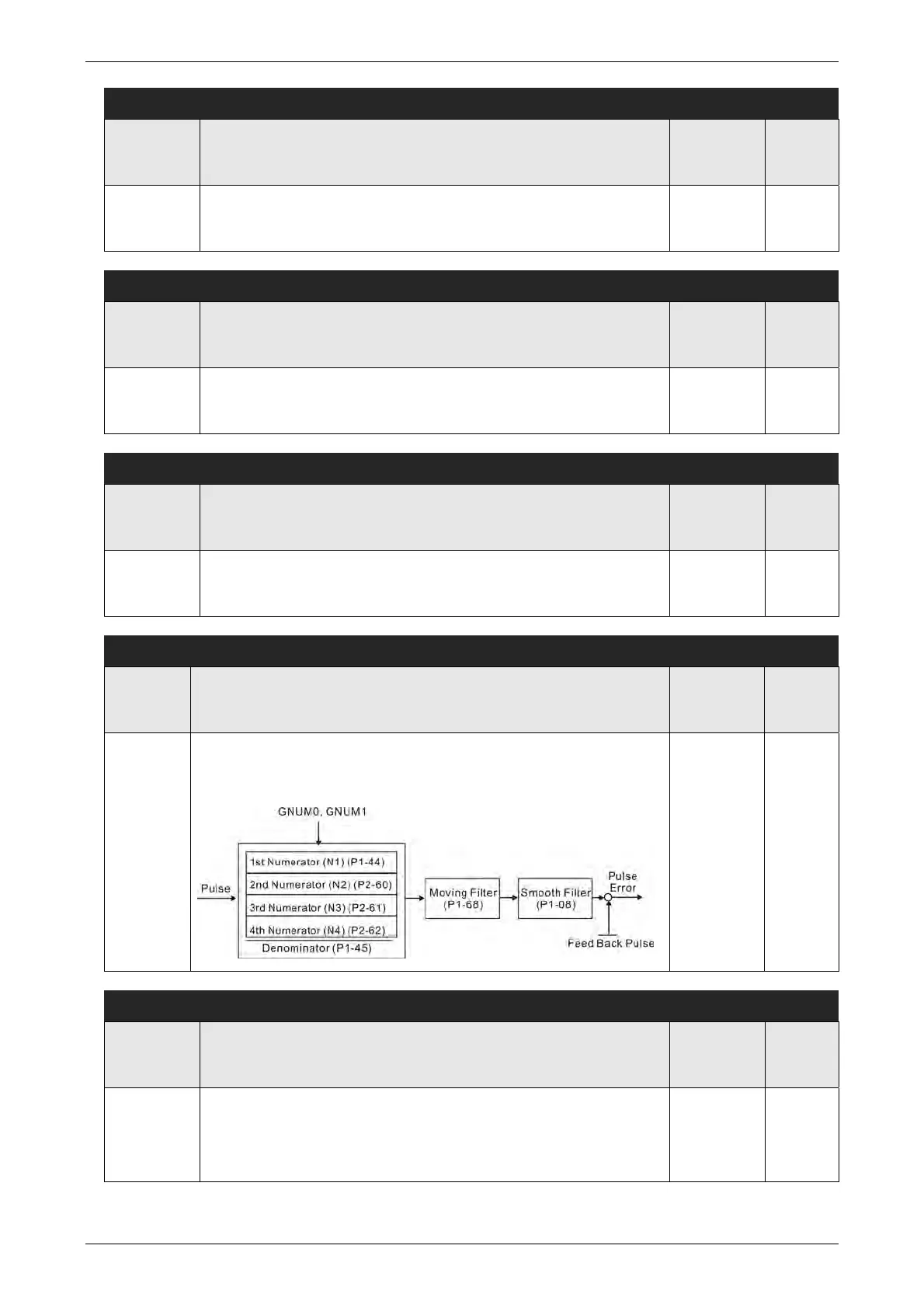

Setting value: 0x26
DI Name DI Function Description
Trigger
Method
Control
Mode
TRLM
Torque limit - Forward operation (Torque limit function is
valid only when P1-02 is enabled)
Level
Triggered
PT, S
Setting value: 0x37
DI Name DI Function Description
Trigger
Method
Control
Mode
JOGU
Forward JOG input. When JOGU is activated, the motor will
JOG in forward direction. [see P4-05]
Level
Triggered
All
Setting value: 0x38
DI Name DI Function Description
Trigger
Method
Control
Mode
JOGD
Reverse JOG input. When JOGD is activated, the motor will
JOG in reverse direction. [see P4-05]
Level
Triggered
All
Setting value: 0x43, 0x44
DI Name DI Function Description
Trigger
Method
Control
Mode
GNUM0
GNUM1
Electronic gear ratio (Numerator) selection 0 ~ 1 [see P2-60
~ P2-62]
Level
Triggered
PT
Setting value: 0x45
DI Name DI Function Description
Trigger
Method
Control
Mode
INHP
Pulse inhibit input. When the drive is in position mode, if
INHP is activated, the external pulse input command is not
valid.
Level
Triggered
PT
