Chapter 3 Connections and Wiring ASDA-B2
3-32 Revision September 2013

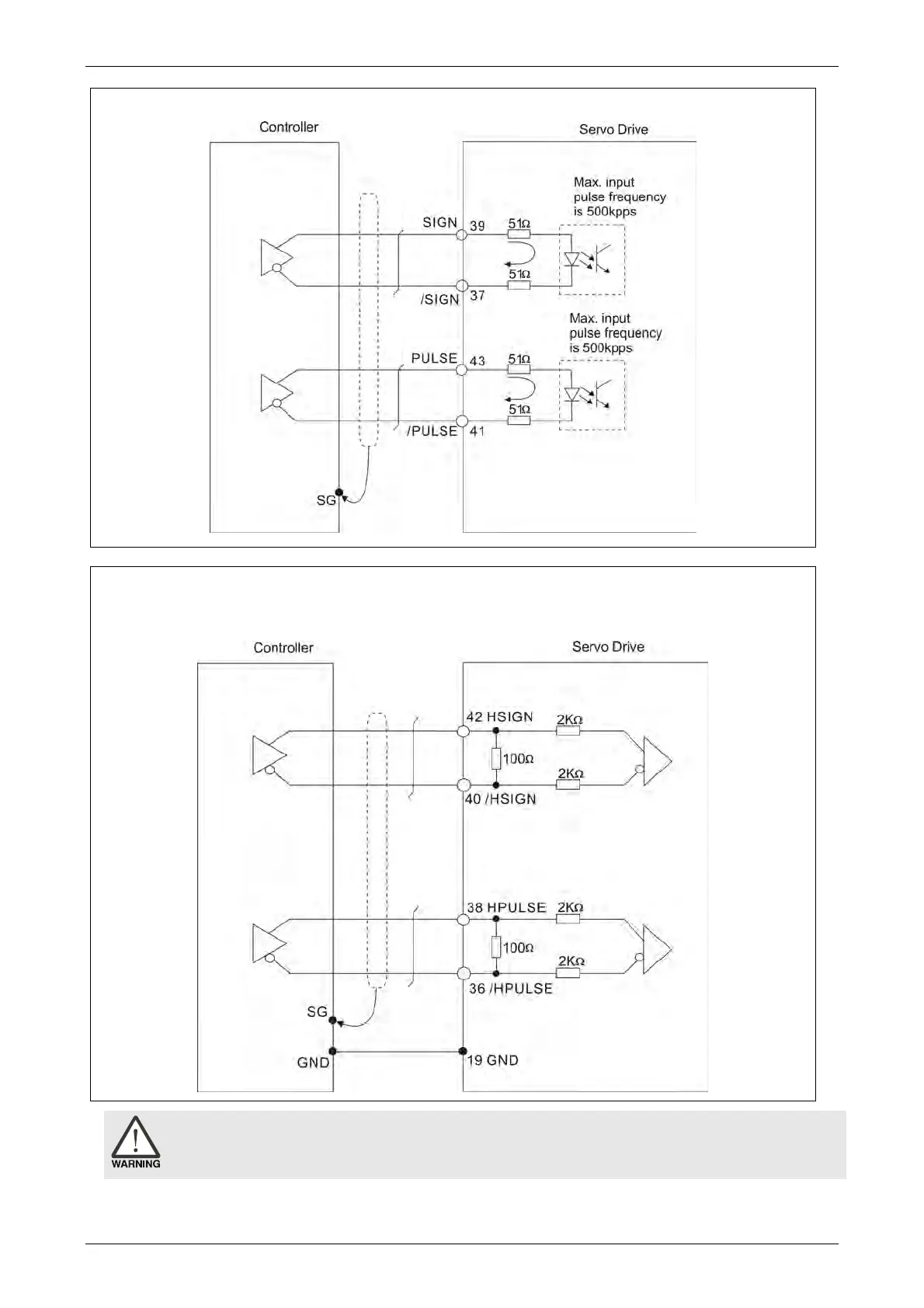

C4-1: Pulse input (Line driver) It requires 5V power supply only. Never apply a 24V power supply.
C4-2: High-speed pulse input (Line driver). It requires 5V power supply only. Never apply a 24V
power supply.
 Caution: The high-speed pulse input interface is not an isolated input interface.
To prevent noise and interference, ensure that the ground terminal of the
controller and the servo drive should be connected to each other.
