Delta Electronics ASDA-B2 series User Manual

ASDA-B2 Chapter 3 Connections and Wiring
Revision September 2013 3-33
Be sure to connect a diode when the drive is applied to inductive load.
(Permissible current: 40mA, Instantaneous peak current: max. 100mA)

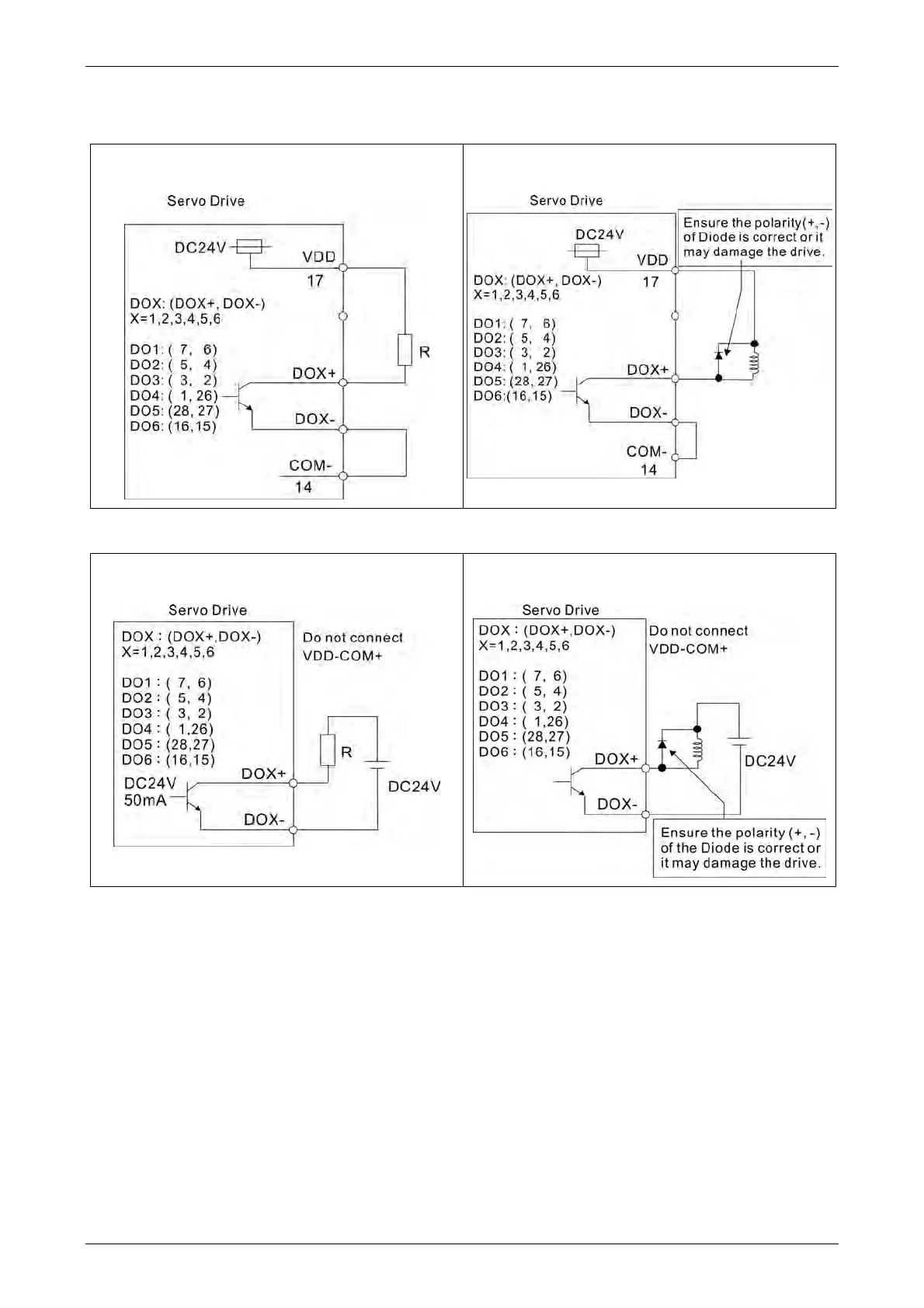

C5: Wiring of DO signal, for the use of internal
power supply, general load
C6: Wiring of DO signal, for the use of internal
power supply, inductive load
C7: Wiring of DO signal, for the use of external
power supply, general load
C8: Wiring of DO signal, for the use of external
power supply, inductive load
