ASDA-B2 Chapter 3 Connections and Wiring

Revision September 2013 3-35

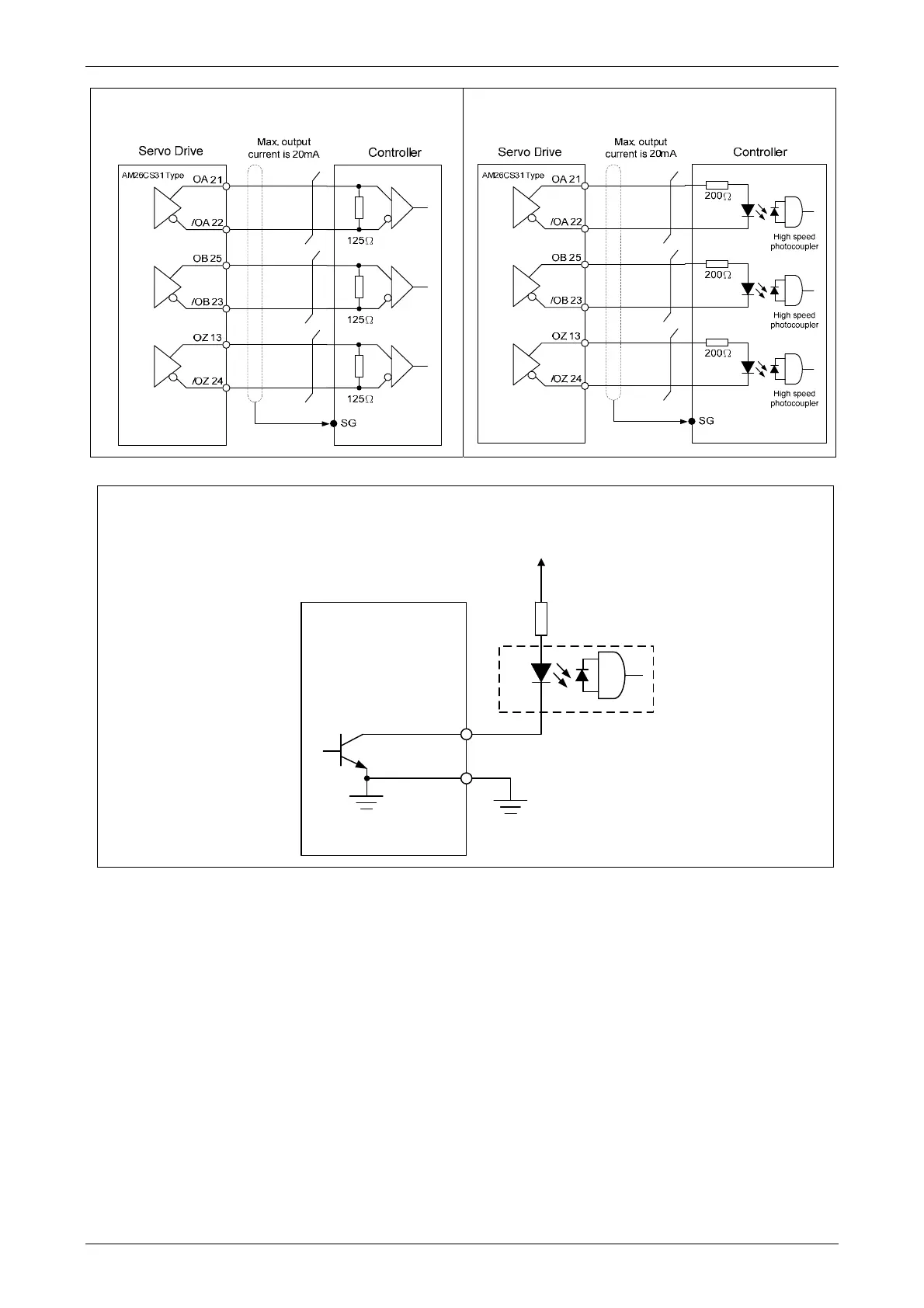

C13: Encoder output signal (Line driver) C14: Encoder output signal (Photocoupler)

C15: Encoder OCZ output (Open-collector Z-pulse output)

Servo Drive

Max. Spec: 30V

100mA

24V

OCZ 44

GND 29
