請參考圖3-4至3-8說明
1. 請先確定產品安裝牆面為足以承載產品重量。
2. 水平固定壁掛架(垂直於地板),壁掛架尺寸如圖3-5所示。
3. 鎖附12枚M6十字螺絲於壁掛架上。(圖3-6)
4. 將產品放置於壁掛架上。
5. 以兩枚M8螺絲,透過圖3-6所示之外部接地點鎖附變流器於牆面。
3.2.1 壁掛式安裝
- 至少使用8枚M6螺絲將壁掛架固定牆上。
- 該壁掛架為本產品專用,請勿使用其他壁掛架來搭配本產品使用。
- 未遵守以下安裝說明中的方向和間隙可能導致降額功率輸出並可能使保固失效。
注意!

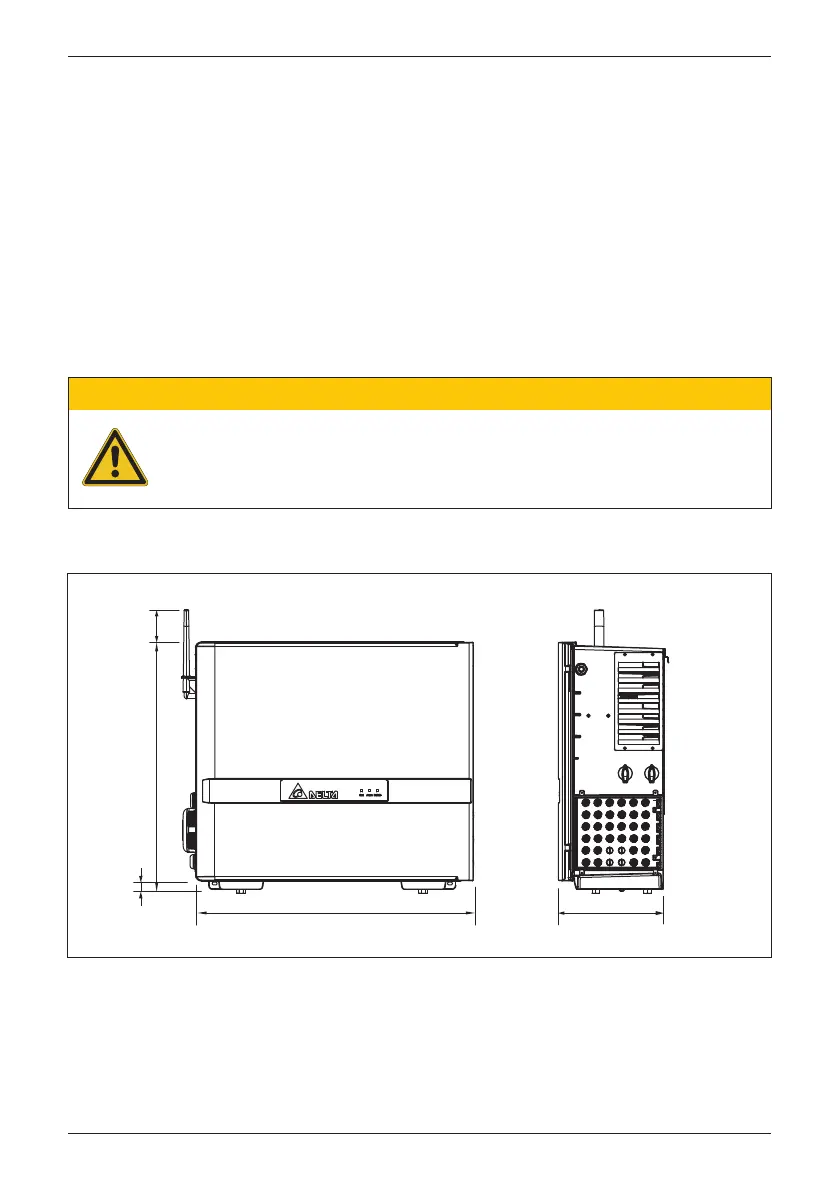

圖 3-4: 變流器尺寸
629 mm 80 mm
22.4 mm
699 mm 264 mm
105
安裝
